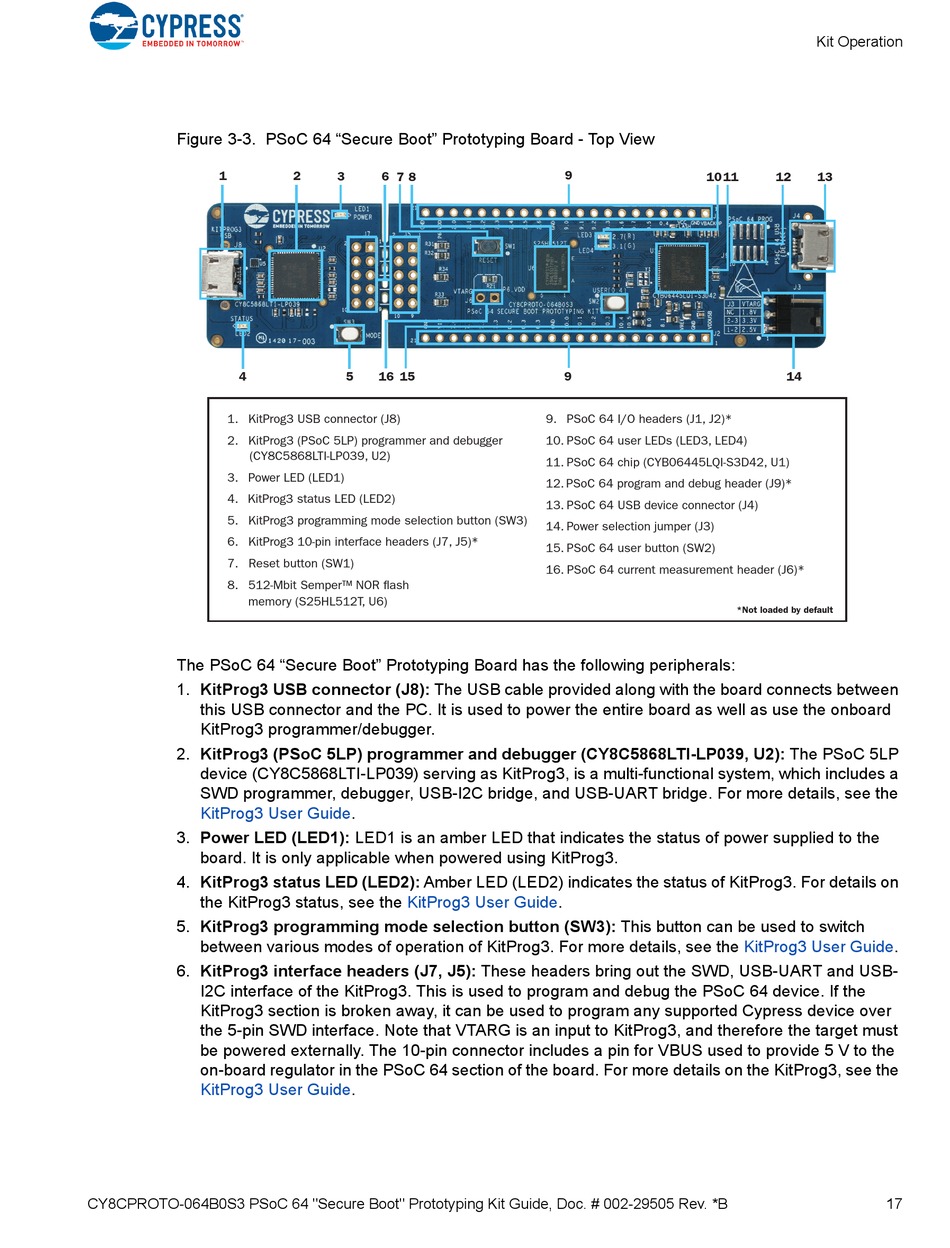

Figure 3-3. PSoC 64 "Secure Boot" Prototyping Board - Top View
1
4
1. KitProg3 USB connector (J8)
2. KitProg3 (PSoC 5LP) programmer and debugger
(CY8C5868LTI-LP039, U2)
3. Power LED (LED1)
4. KitProg3 status LED (LED2)
5. KitProg3 programming mode selection button (SW3)
6. KitProg3 10-pin interface headers (J7, J5)*
7. Reset button (SW1)
8. 512-Mbit Semper™ NOR flash
memory (S25HL512T, U6)
The PSoC 64 "Secure Boot" Prototyping Board has the following peripherals:
1. KitProg3 USB connector (J8): The USB cable provided along with the board connects between
this USB connector and the PC. It is used to power the entire board as well as use the onboard
KitProg3 programmer/debugger.
2. KitProg3 (PSoC 5LP) programmer and debugger (CY8C5868LTI-LP039, U2): The PSoC 5LP
device (CY8C5868LTI-LP039) serving as KitProg3, is a multi-functional system, which includes a
SWD programmer, debugger, USB-I2C bridge, and USB-UART bridge. For more details, see the
KitProg3 User
3. Power LED (LED1): LED1 is an amber LED that indicates the status of power supplied to the
board. It is only applicable when powered using KitProg3.
4. KitProg3 status LED (LED2): Amber LED (LED2) indicates the status of KitProg3. For details on
the KitProg3 status, see the
5. KitProg3 programming mode selection button (SW3): This button can be used to switch
between various modes of operation of KitProg3. For more details, see the
6. KitProg3 interface headers (J7, J5): These headers bring out the SWD, USB-UART and USB-
I2C interface of the KitProg3. This is used to program and debug the PSoC 64 device. If the
KitProg3 section is broken away, it can be used to program any supported Cypress device over
the 5-pin SWD interface. Note that VTARG is an input to KitProg3, and therefore the target must
be powered externally. The 10-pin connector includes a pin for VBUS used to provide 5 V to the
on-board regulator in the PSoC 64 section of the board. For more details on the KitProg3, see the
KitProg3 User
CY8CPROTO-064B0S3 PSoC 64 "Secure Boot" Prototyping Kit Guide, Doc. # 002-29505 Rev. *B
2 3 6 7
8
5 16 15
Guide.
KitProg3 User
Guide.
9
9
9. PSoC 64 I/O headers (J1, J2)*
10. PSoC 64 user LEDs (LED3, LED4)
11. PSoC 64 chip (CYB06445LQI-S3D42, U1)
12. PSoC 64 program and debug header (J9)*
13. PSoC 64 USB device connector (J4)
14. Power selection jumper (J3)
15. PSoC 64 user button (SW2)
16. PSoC 64 current measurement header (J6)*
Guide.
Kit Operation
10 11 12 13
14
*Not loaded by default
KitProg3 User Guide.
