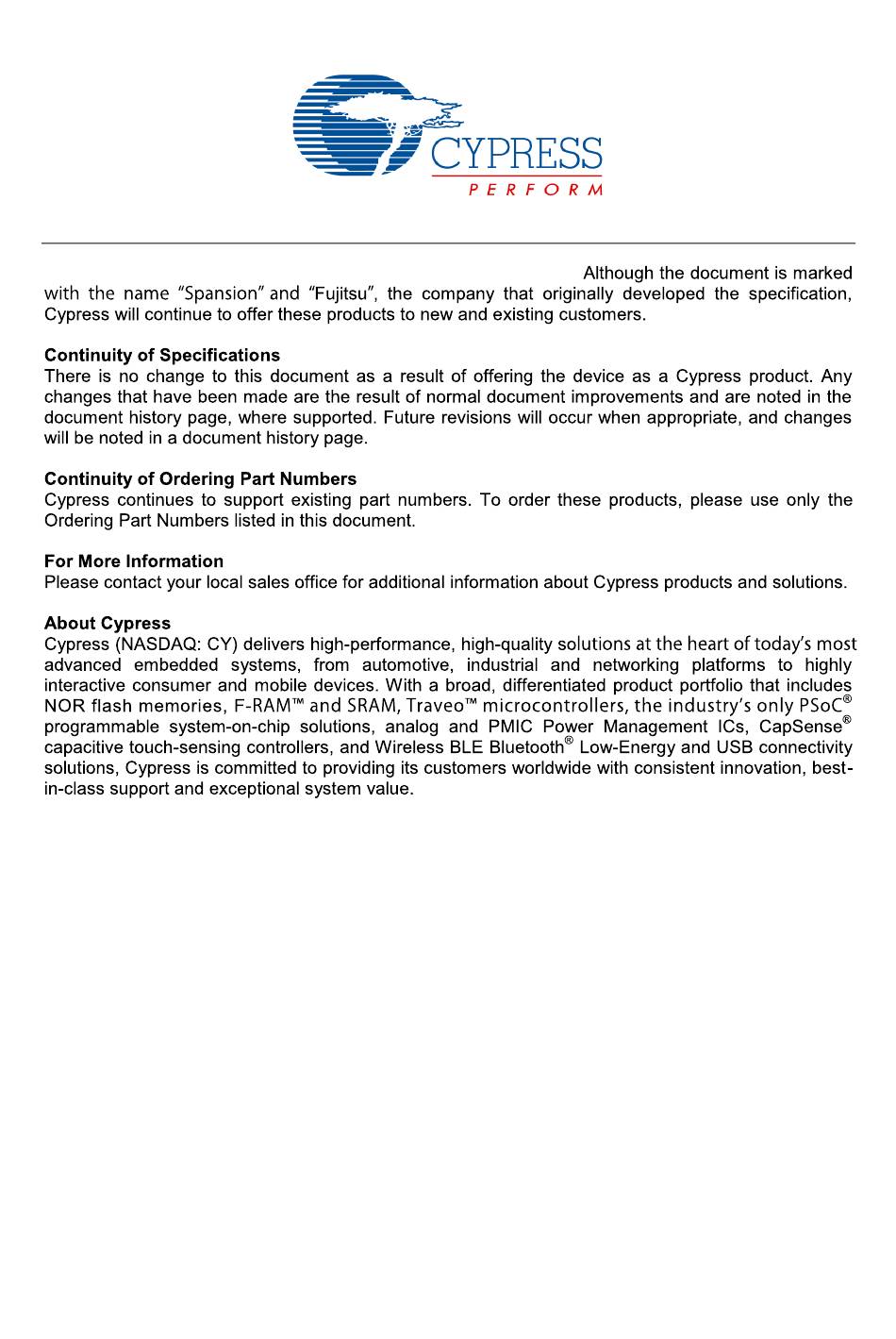

- Page 1 The following document contains information on Cypress products.
- Page 2 FUJITSU SEMICONDUCTOR SS704-00001-1v0-E SUPPORT SYSTEM MC-16FX Family 16-BIT MICROCONTROLLER MB96610 series MB96610 Evaluation Board MB2198-761-01-E/02-E OPERATION MANUAL...
- Page 3 PREFACE This document indicates directions for use about the "MB96610 evaluation board" which is the evaluation environment of MB96610 series of a F -16FX-16bit microcontroller* *1: F MC is the abbreviation of FUJITSU Flexible Microcontroller. *2: Refered to MCU below.
- Page 4 ■ Caution of the product described in this manual The following precautions apply to the product described in this manual. Indicates a potentially hazardous situation which could result in death or serious WARNING injury and/or a fault in the user's system if the product is not used correctly. Before performing any operation described in this manual, turn off all the power Electric shock, supplies to the system.
- Page 5 The contents of this document are subject to change without notice. Customers are advised to consult with sales representatives before ordering. The information, such as descriptions of function and application circuit examples, in this document are presented sole- ly for the purpose of reference to show examples of operations and uses of FUJITSU SEMICONDUCTOR semicon- ductor device;...
- Page 6 1. Overview The MB96610 Evaluation Board provides the evaluative environment of the MB96610 series MCU. Figure 1 MB96610 Evaluation Board...
-
Page 7: Functional Overview
1.1 Functional overview This board can mount MCU (with or without socket). The location of the main function is shown as follows. RS/USB monitor selection land clock Main/Sub connector (solder side) Mode Main monitor monitor clock socket land land Main/Sub connector (solder side) monitor... - Page 8 Table 1 MB96610 Evaluation Board function list Function Specification Remarks with socket MB96F610 NQPACK048SD-ND with socket or direct mounted HQPACK048SD Main clock 4MHz Oscillator with socket Sub clock 32.768kHz External power supply External power supply connection connection (DC3.3V to 5.0V) OCD debugger(MB2100-01-E) OCD connector Connection...
-
Page 9: Block Diagram
1.2 Block diagram The block diagram of this board is shown below. OCD connector Main board 4MHz DC12V DC5V DC3.3V 5.0V 32kHz 3.3V (MB96610) With MODE SW Socket 48 RS ch.0 Monitor USART ch.2 land USART ch.7 LIN ch.0 CAN ch.2 CAN ch.0 Monitor LED INT SW... -
Page 10: Functional Details
2. Functional details The functional details of this board are shown as following. 2.1 Power supply settings Please confirm the following jumpers are closed. (J2, J4, J5, J14) AVCC AVSS VCC_MCU AVRH Figure 4 Power supply jumpers location Table 2 Power supply jumpers function Jumper Function Setting... -
Page 11: Sub Clock Settings
2.2 Sub clock settings The sub clock connection can be set as follows by J7 and J24. The settings of these jumpers is shown below. Note: A sub clock oscillator is not mounted in default. (Xtal 32.768kHz) Figure 5 Sub clock jumpers location Table 3 J7 setting Setting X1A connection select... -
Page 12: Uart Ch.0 Select Jumper
2.3 UART ch.0 select jumper The connection destination of the UART ch.0 signal can be selected by J20/J21. These jumpers location and settings are shown below. Figure 6 UART ch.0 select jumper location From right to left 1, 2, 3 J20:TX , J21:RX Table 5 J20, J21 setting Setting... -
Page 13: Mode Sw Settings
2.4 Mode SW settings The selection of the operational mode of MCU can be set by SW1 as follows. The mode switch location and settings are shown below. Mode SW Figure 7 Mode SW location bit1:MD , bit2:DEBUG Table 6 Mode SW setting (SW1) Mode SW setting 1, 2 MB96F610 : serial writer mode... -
Page 14: Ocd (On Chip Debugger) Interface
2.5 OCD (On chip debugger) interface The MB96610 evaluation board can operate software "Softune" for debugging by connecting Fujitsu OCD-E (on chip debugger). The OCD connector location and settings are shown below. connector Figure 8 OCD cable connect location Please turn the coaxial cable appended to Fujitsu OCD-E(MB21000-01-E) as shown in a left chart. -
Page 15: Other Jumper Settings
2.6 Other jumper settings These jumpers are in order to free the MCU pin from on board peripherals. Table 7 Isolate jumpers location Jumper Signal LIN I/F ch.0 : RX LIN I/F ch.0 : TX RS I/F ch.0 (USB): RX RS I/F ch.0 (USB): TX CAN I/F ch.0 : RX CAN I/F ch.0 : TX... -
Page 16: Signal Monitor
2.7 Signal monitor The correspondence of the monitor land and the MCU pin number is shown as follows. (Q numbers are equal to MCU pin numbers.) Table 8 Monitor land list Pin No. Pin No. Pin No. - Page 17 2.8 Main board connection The connection of MCU and I/O on the main board is shown below. ■ General-purpose LED The correspondence table for the general-purpose LED mounted on the main board and the MCU pin number is shown below. Table 9 General-purpose LED MB96610 MONITOR LED...
- Page 18 ■ Reset SW The correspondence of RESET SW mounted on the main board and the MCU pin number is shown below. Table 12 RESET switch MB96610 Reset SW Parts number Pin number Pin name RESET RSTX ■ Volume SW The correspondence of Volume SW mounted on the main board and the MCU pin number is shown below.
-
Page 19: For Test Use Only, External Power Supply Connection Pin
3. Power-ON Basically, this board cannot turn on the power supply alone. Please mount on the main board(MB2198-760-E) and use it. 3.1 FOR TEST USE ONLY, External power supply connection pin The external power supply connection position is shown as follows. (VCC = 3.3V to 5.0V) When you connect an external power supply to this pin, and you use alone this board, please short- circuit J22 (DVCC) and J23 (AVCC). - Page 20 3.2 Power-ON Please follow the user's manual for the Main board(MB2198-760-E).
-
Page 21: Circuit Diagram
4. Circuit diagram... - Page 22 5. Recycling Valid for European Union Countries: According to the European WEEE-Directive and its implementation into national laws we take this device back. For disposal please send the device to the following address: Fujitsu Semiconductor Europe GmbH Warehouse / Disposal Monzastraße 4a 63225 Langen Gültig für EU-Länder:...
-
Page 23: China-Rohs Regulation
6. China-RoHS regulation Compliance with Administration on the Control of Pollution Caused by Electronic Information Products of the People’s Republic of China 这标记是按照2006年2月28日公布的[电子信息产品污染控制管理办法]以及SJ/T11364-2006[电子信 息产品污染控制标识要求]在中国销售的电子信息产品的环保使用期限。如遵守关于这产品的安全或 使用上的注意，在这期限内(从生产日期起算)不会因产品中的有害物质漏到外部、或发生突然变异， 而引起环境污染和对人体或财产的重大影响。 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷线路板... - Page 24 SS704-00001-1v0-E FUJITSU SEMICONDUCTOR SUPPORT SYSTEM MC-16FX Family 16-BIT MICROCONTROLLER MB96610 series MB96610 Evaluation Board MB2198-761-01-E/02-E OPERATION MANUAL July 2012 the first edition Published FUJITSU SEMICONDUCTOR LIMITED Edited Sales Promotion Department...
