  • Page 1 Please note that Cypress is an Infineon Technologies Company. The document following this cover page is marked as “Cypress” document as this is the company that originally developed the product. Please note that Infineon will continue to offer the product to new and existing customers as part of the Infineon product portfolio.
  • Page 2 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide CYTVII-B-E-1M-176-CPU Evaluation Board User Guide Document Number. 002-22883 Rev. *C Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 www.cypress.com...
  • Page 3 High-Risk Device, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from any use of a Cypress product as a Critical Component in a High-Risk Device.

  • Page 4: Table Of Contents

    3. Operation 4. Connections and Settings A. Schematics of CPU Board B. Component Assembly on CPU Board C. Schematics of Base Board D. Component Assembly on Base Board Revision History CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 5: Introduction

    CYTVII-B-E-BB Traveo II baseboard (available separately from Cypress). This document assumes that you will work with the combination (CPU board + base- board), and provides guidance to use features of the evaluation platform. The Device Port Pin Con- nections on Baseboard and CPU board schematic used in this document is for CYTVII-B-E-1M-176- CPU Rev C and Rev 1.0 boards and CYTVII-B-E-176-SO Rev C and Rev 1.0 boards only.

  • Page 6: Overview

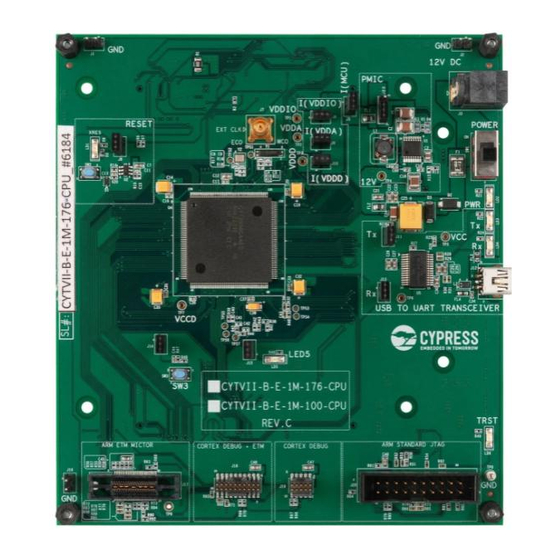

    (marked in red) while the evaluation board is powered OFF. Figure 2-1. CYTVII-B-E-176-SO Board A variant of the CPU board (CYTVII-B-E-1M-176-CPU) is also available, where the Traveo II device is soldered directly onto the PCB. Functionally, the CYTVII-B-E-1M-176-CPU and CYTVII-B-E-176- SO boards are identical, except that the device can be easily replaced in the latter.
  • Page 7 Two Samtec connectors on the CPU board and corresponding mating connectors on the baseboard are used to connect signals across the two boards. When put together, the boards appear as shown Figure 2-3. Figure 2-3. Combination of CPU Board and TVII Base Board CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 8: Functional Overview

    8. Pin headers to access all I/Os of the TVII device (when a CPU board is connected to the base- board). 9. Samtec connector interface (J38 and J84) for connecting to a CPU board. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 9: Operation

    CPU board. You can select the 3.3 V power rails for CPU board by shorting J23_2 and J23_2 as per their application or hardware setup. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 10 8, N, 1). Ensure that jumpers J11 and J13 are inserted on the CPU board. Some firmware exam- ples provide data logs from the device or ask for user inputs over the terminal. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 11: Connections And Settings

    For example, if you connect jumpers related to CAN0.0, you must ensure that firmware configures the related ports as CAN pins. Contact Cypress technical support for firmware examples . CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 12 P12.0 PWM_36/PWM_35_N/TC_36_TR0/TC_35_TR1/CAN0_2_TX/TRIG_IN[20]/ADC[1]_4 JP10.8 PWM_37/PWM_36_N/TC_37_TR0/TC_36_TR1/LIN6_EN/CAN0_2_RX/TRIG_IN[21]/ P12.1 JP10.7 ADC[1]_5 PWM_38/PWM_37_N/TC_38_TR0/TC_37_TR1/EXT_MUX[1]_EN/LIN6_RX/ P12.2 JP1.9 ADC[1]_6 P12.3 PWM_39/PWM_38_N/TC_39_TR0/TC_38_TR1/EXT_MUX[1]_0/LIN6_TX/ADC[1]_7 JP1.10 P12.4 PWM_40/PWM_39_N/TC_40_TR0/TC_39_TR1/EXT_MUX[1]_1/ADC[1]_8 JP10.13 P12.5 PWM_41/PWM_40_N/TC_41_TR0/TC_40_TR1/EXT_MUX[1]_2/ADC[1]_9 JP1.14 P12.6 PWM_42/PWM_41_N/TC_42_TR0/TC_41_TR1/ADC[1]_10 JP2.18 P12.7 PWM_43/PWM_42_N/TC_43_TR0/TC_42_TR1/ADC[1]_11 JP2.17 PWM_M_8/PWM_43_N/TC_M_8_TR0/TC_43_TR1/EXT_MUX[2]_0/SCB3_RX/ P13.0 JP10.4 SCB3_MISO/ADC[1]_12 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 13 PWM_62/PWM_62_N/TC_62_TR0/TC_62_TR1/PWM_H_1_N JP4.3 P17.0 PWM_61/PWM_62_N/TC_61_TR0/TC_62_TR1/CAN1_1_TX JP11.8 PWM_60/PWM_61_N/TC_60_TR0/TC_61_TR1/PWM_H_2/SCB3_RX/SCB3_MISO/ P17.1 JP11.7 CAN1_1_RX PWM_59/PWM_60_N/TC_59_TR0/TC_60_TR1/PWM_H_2_N/SCB3_TX/ P17.2 JP2.3 SCB3_SDA/SCB3_MOSI PWM_58/PWM_59_N/TC_58_TR0/TC_59_TR1/PWM_H_3/SCB3_RTS/SCB3_SCL/ P17.3 JP4.5 SCB3_CLK/TRIG_IN[26] PWM_57/PWM_58_N/TC_57_TR0/TC_58_TR1/PWM_H_3_N/SCB3_CTS/SCB3_- P17.4 JP4.11 SEL0/TRIG_IN[27] P17.5 PWM_56/PWM_57_N/TC_56_TR0/TC_57_TR1/SCB3_SEL1 JP3.10 P17.6 PWM_M_4/PWM_56_N/TC_M_4_TR0/TC_56_TR1/SCB3_SEL2 JP3.8 P17.7 PWM_M_5/PWM_M_4_N/TC_M_5_TR0/TC_M_4_TR1 JP3.6 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 14 CAN1_2_RX P20.5 PWM_45/PWM_46_N/TC_45_TR0/TC_46_TR1/SCB1_RTS/SCB1_SCL/SCB1_CLK JP5.9 P20.6 PWM_44/PWM_45_N/TC_44_TR0/TC_45_TR1/SCB1_CTS/SCB1_SEL0 JP5.7 P20.7 PWM_43/PWM_44_N/TC_43_TR0/TC_44_TR1/SCB1_SEL1 JP5.6 PWM_7/PWM_8_N/TC_7_TR0/TC_8_TR1/SCB7_RX/SCB0_SEL1/SCB7_MISO/ P2.0 LIN0_RX/CAN0_0_TX/ SWJ_TRSTN/TRIG_IN[2] PWM_6/PWM_7_N/TC_6_TR0/TC_7_TR1/SCB7_TX/SCB7_SDA/SCB0_SEL2/ P2.1 JP1.4 SCB7_MOSI/LIN0_TX/ CAN0_0_RX/TRIG_IN[3] PWM_5/PWM_6_N/TC_5_TR0/TC_6_TR1/SCB7_RTS/SCB7_SCL/SCB0_SEL3/ P2.2 JP1.6 SCB7_CLK/LIN0_EN/TRIG_IN[4] PWM_4/PWM_5_N/TC_4_TR0/TC_5_TR1/SCB7_CTS/SCB7_SEL0/LIN5_RX/ P2.3 JP10.11 TRIG_IN[5] P2.4 PWM_3/PWM_4_N/TC_3_TR0/TC_4_TR1/SCB7_SEL1/LIN5_TX/TRIG_IN[6] JP8.8 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 15 SWJ_SWO_TDO/TRIG_IN[31] P23.5 PWM_24/PWM_25_N/TC_24_TR0/TC_25_TR1/SCB7_SEL2/SWJ_SWCLK_TCLK #N/A P23.6 PWM_23/PWM_24_N/TC_23_TR0/TC_24_TR1/SWJ_SWDIO_TMS #N/A PWM_22/PWM_23_N/TC_22_TR0/TC_23_TR1/CAL_SUP_NZ/SWJ_SWDOE_TDI/ P23.7 JP4.9 EXT_CLK/HIBERNATE_WAKEUP[1] P3.0 PWM_1/PWM_2_N/TC_1_TR0/TC_2_TR1/SCB6_RX/SCB6_MISO/TRIG_DBG[0] JP10.14 PWM_0/PWM_1_N/TC_0_TR0/TC_1_TR1/SCB6_TX/SCB6_SDA/SCB6_MOSI/ P3.1 JP11.4 TRIG_DBG[1] PWM_M_3/PWM_0_N/TC_M_3_TR0/TC_0_TR1/SCB6_RTS/SCB6_SCL/SCB6_- P3.2 JP8.10 P3.3 PWM_M_2/PWM_M_3_N/TC_M_2_TR0/TC_M_3_TR1/SCB6_CTS/SCB6_SEL0 JP8.9 P3.4 PWM_M_1/PWM_M_2_N/TC_M_1_TR0/TC_M_2_TR1/SCB6_SEL1 JP8.12 P3.5 PWM_M_0/PWM_M_1_N/TC_M_0_TR0/TC_M_1_TR1/SCB6_SEL2 JP8.11 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 16 PWM_M_5/PWM_15_N/TC_M_5_TR0/TC_15_TR1/SCB5_RTS/SCB5_SCL/SCB5_- P7.2 JP12.5 CLK/LIN4_EN/ADC[0]_10 PWM_16/PWM_M_5_N/TC_16_TR0/TC_M_5_TR1/SCB5_CTS/SCB5_SEL0/ P7.3 JP10.10 ADC[0]_11 P7.4 PWM_M_6/PWM_16_N/TC_M_6_TR0/TC_16_TR1/SCB5_SEL1/ADC[0]_12 JP10.9 P7.5 PWM_17/PWM_M_6_N/TC_17_TR0/TC_M_6_TR1/SCB5_SEL2/ADC[0]_13 JP10.12 P7.6 PWM_M_7/PWM_17_N/TC_M_7_TR0/TC_17_TR1/TRIG_IN[16]/ADC[0]_14 JP11.12 P7.7 PWM_18/PWM_M_7_N/TC_18_TR0/TC_M_7_TR1/TRIG_IN[17]/ADC[0]_15 JP11.9 P8.0 PWM_19/PWM_18_N/TC_19_TR0/TC_18_TR1/LIN2_RX/CAN0_0_TX JP6.12 PWM_20/PWM_19_N/TC_20_TR0/TC_19_TR1/LIN2_TX/CAN0_0_RX/TRIG_IN[14]/ P8.1 JP6.11 ADC[0]_16 P8.2 PWM_21/PWM_20_N/TC_21_TR0/TC_20_TR1/LIN2_EN/TRIG_IN[15]/ADC[0]_17 JP2.8 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 17 JP9.14 P9.3 PWM_27/PWM_26_N/TC_27_TR0/TC_26_TR1/ADC[0]_23 JP9.13 VCCD VCCD VDDA VDDA JP1.17 VDDD VDDD JP1.15 VDDIO VDDIO JP1.16 VREFH VREFH VREFL VREFL VSSA VSSA / VSSD / VSSIO/ Ground JP1.19 XRES XRES JP12.16 CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 18: Schematics Of Cpu Board

    Schematics of CPU Board This appendix contains the schematics of TVII-B-E-1M board. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 19 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : BLOCK DIAGRAM Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 20 CYPRESS SEMICONDUCTOR © 2019 CONTROLLER SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : POWER ARCHITECTURE Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 21 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : 5V POWER INPUT Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 22 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : 3V3 LDO REGULATOR Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 23 Page Title : DEBUG INTERFACE NRST_CORTEX20 SRST_MICTOR CPU_XRES {6,7,14,18} CPU_XRES {6,7,14,18} Document Number Drawn By Approved By Size R e v 6239956 VJYM SPPD TRSTN TRSTN Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 24 CYTVII-B-E-1M-B0-176-CPU-BOARD 220E Page Title : UART TO USB & RESET 0.1uF Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 25 LTST-C150GKT SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : GPIO,CLOCK AND FILTER Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 26 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : LQFP-176 P1 Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 27 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : LQFP-176 P2 Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 28 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : LQFP-176 P3 Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 29 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : LQFP-176 P4 Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 30 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : LQFP-176 P5 Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 31 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD 4.7K Page Title : LQFP-176 P6 R e v Size Document Number Drawn By Approved By 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 32 CYTVII-B-E-1M-B0-176-CPU-BOARD CPU_BB_VDDD CPU_BB_VDDIO CPU_BB_VDDA Page Title : LQFP-176 P7 Drawn By Approved By R e v Size Document Number VJYM SPPD 6239956 CPU_VREFL {16} Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 33 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : B TO B CONNECTOR- J22A Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 34 (408) 943-2600 CYPRESS SEMICONDUCTOR © 2019 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : B TO B CONNECTOR- J22B Document Number Drawn By Approved By R e v Size 6239956 VJYM SPPD CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 35 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : B TO B CONNECTOR- J21A Approved By R e v Size Document Number Drawn By SPPD 6239956 VJYM Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 36 SCH Title : CYTVII-B-E-1M-B0-176-CPU-BOARD Page Title : B TO B CONNECTOR- J21B Size Document Number Drawn By Approved By R e v 6239956 VJYM SPPD Date: Monday, April 01, 2019 Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 37: Component Assembly On Cpu Board

    Component Assembly on CPU Board This appendix shows the top and bottom assembly of the PCB. Figure B-1. Top Assembly of the PCB ART FILM - PASSY TPS1 TPS2 TPS3 TPS4 TPS6 TPS7 PRIMARY_ASSEMBLY CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 38 Component Assembly on CPU Board Figure B-2. Bottom Assembly of the PCB CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 39: Schematics Of Base Board

    Schematics of Base Board This appendix contains the schematics of the Base board on which CPU Board is mounted. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 40 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 41 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 42 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 43 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 44 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 45 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 46 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 47 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 48 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 49 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 50 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 51 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 52 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 53 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 54 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 55 R e v BALA K BALA K BALA K SHANTANU SHANTANU SHANTANU Date: Date: Date: Wednesday, November 20, 2019 Wednesday, November 20, 2019 Wednesday, November 20, 2019 Sheet Sheet Sheet CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 56: Component Assembly On Base Board

    LD16 LD17 LD18 LD19 J112 J113 J111 LD13 LD15 LD14 J117 J118 J116 J115 J119 J120 J121 J123 J122 J124 J114 J131 J125 JP10 JP11 JP12 ART FILM - TASY CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
  • Page 57 R 1 3 2 C 8 2 C 8 1 R 1 3 3 R 1 3 4 R 1 4 3 R 1 4 2 ART FILM - BASY CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...

  • Page 58: Revision History

    B. Component Assembly on CPU Board, Schematics of Base Board, and D. Component Assembly on Base Board with text searchable content. Fixed Figure A-12. 6785957 01/24/2020 Updated content in section Overview. CYTVII-B-E-1M-176-CPU Evaluation Board User Guide, Document Number. 002-22883 Rev. *C...
