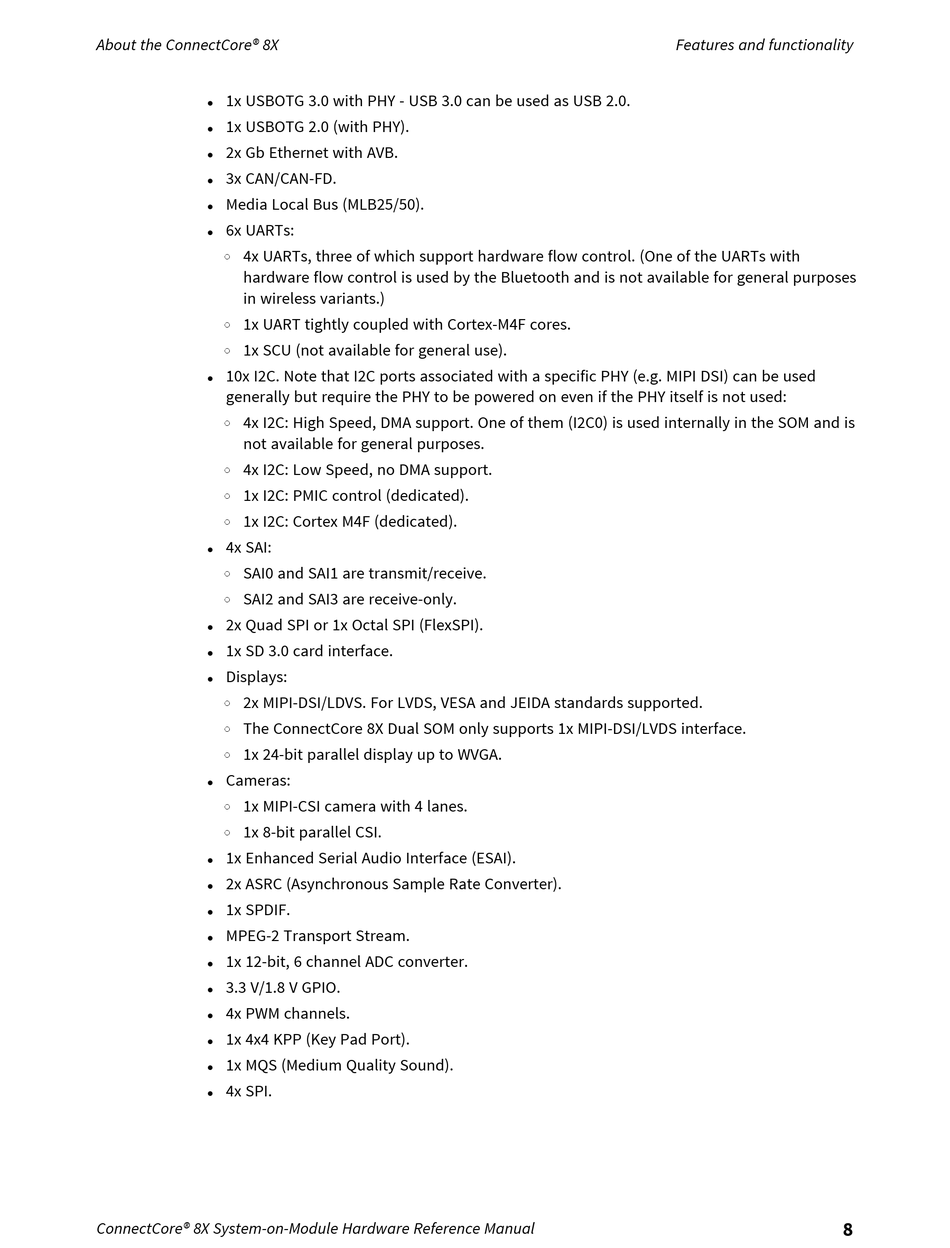

Digi ConnectCore 8X Hardware Reference Manual page 8

About the ConnectCore® 8X
1x USBOTG 3.0 with PHY - USB 3.0 can be used as USB 2.0.
l
1x USBOTG 2.0 (with PHY).
l
2x Gb Ethernet with AVB.
l
3x CAN/CAN-FD.
l
Media Local Bus (MLB25/50).
l
6x UARTs:
l
4x UARTs, three of which support hardware flow control. (One of the UARTs with
o
hardware flow control is used by the Bluetooth and is not available for general purposes
in wireless variants.)
1x UART tightly coupled with Cortex-M4F cores.
o
1x SCU (not available for general use).
o
10x I2C. Note that I2C ports associated with a specific PHY (e.g. MIPI DSI) can be used
l
generally but require the PHY to be powered on even if the PHY itself is not used:
4x I2C: High Speed, DMA support. One of them (I2C0) is used internally in the SOM and is
o
not available for general purposes.
4x I2C: Low Speed, no DMA support.
o
1x I2C: PMIC control (dedicated).
o
1x I2C: Cortex M4F (dedicated).
o
4x SAI:
l
SAI0 and SAI1 are transmit/receive.
o
SAI2 and SAI3 are receive-only.
o
2x Quad SPI or 1x Octal SPI (FlexSPI).
l
1x SD 3.0 card interface.
l
Displays:
l
2x MIPI-DSI/LDVS. For LVDS, VESA and JEIDA standards supported.
o
The ConnectCore 8X Dual SOM only supports 1x MIPI-DSI/LVDS interface.
o
1x 24-bit parallel display up to WVGA.
o
Cameras:
l
1x MIPI-CSI camera with 4 lanes.
o
1x 8-bit parallel CSI.
o
1x Enhanced Serial Audio Interface (ESAI).
l
2x ASRC (Asynchronous Sample Rate Converter).
l
1x SPDIF.
l
MPEG-2 Transport Stream.
l
1x 12-bit, 6 channel ADC converter.
l
3.3 V/1.8 V GPIO.
l
4x PWM channels.
l
1x 4x4 KPP (Key Pad Port).
l
1x MQS (Medium Quality Sound).
l
4x SPI.
l
