Control Board Operation - Event Lighting PAR12x12 User Manual

PAR12

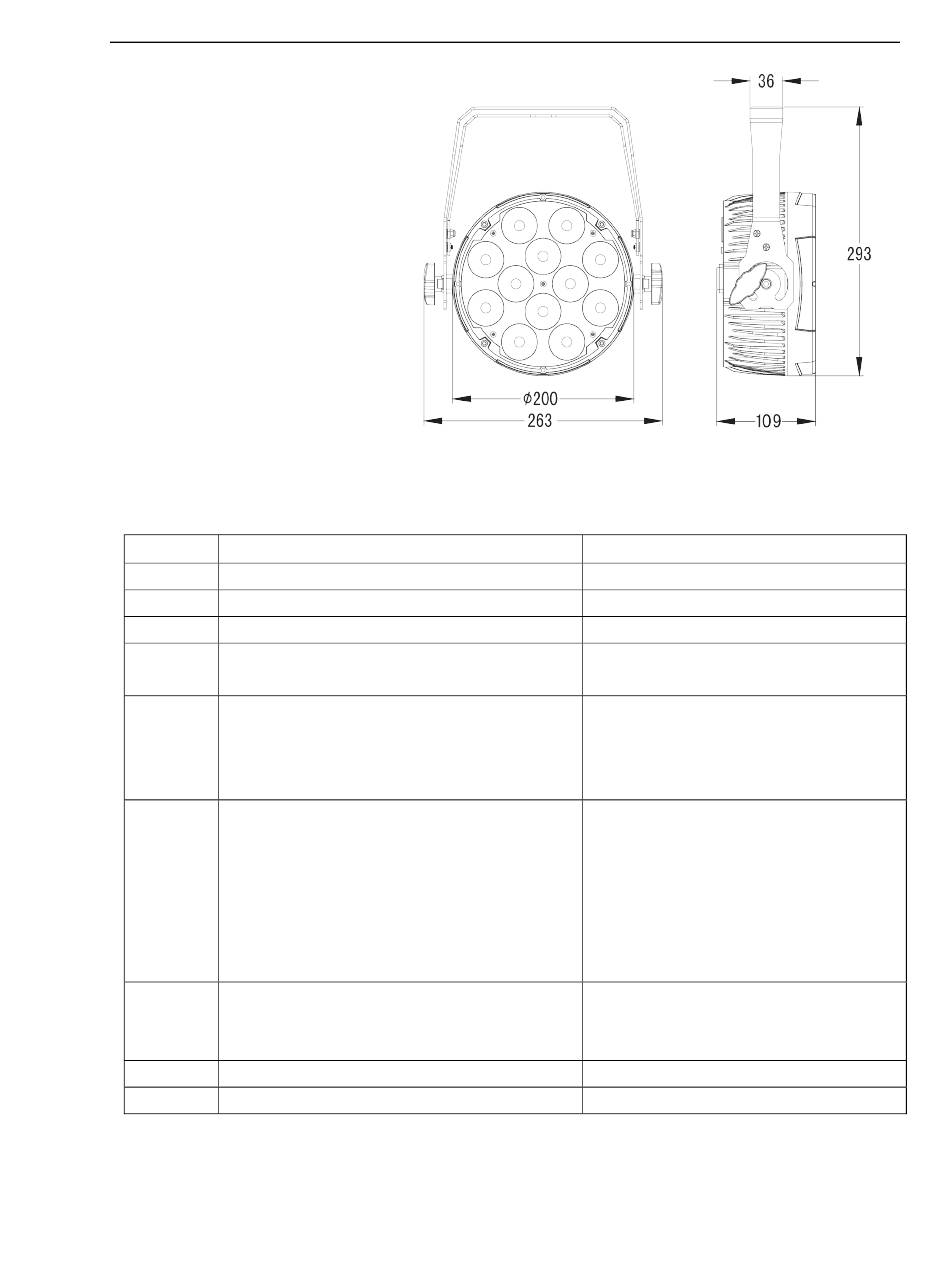

CONTROL BOARD OPERATION

Display
DMX Add <001> - <512>
DMX Cha <02> <03> <06> <08> <12>
Dimmer <01> <02> <03> <04> <05>
Sound <Sen000> - <Sen100>
StaticC R,G,B,W,A,U,GB,RB,RG,RGB,RW,GW,BW,WA,RA,
GA,BA,RGW,RBW,GBW,RGBW,GBA,BWA,RGA,G
WA,RWA,RGBA,GBWA,RBWA,RGWA,RGBQA,RU
,GU,AU,RAU,RGBWAU
ManualC R<000> - <255>
G<000> - <255>
B<000> - <255>
W<000> - <255>
A<000> - <255>
UV<000> - <255>
S<000> - S<100>
Auto Pr <Pr01> - <Pr07>
<Sp000> - <Sp100>
<Dim000> - <Dim255>
Mas/Sla <M> <S>
Reset <N> <Y>
DMX Address
After select the "DMX Add" and press "Enter", use "Up" and "Down" button to select the desired DMX address, press
"Enter" to save new setting
www.event-lighting.com.au
Options / Values
4
Function
Set DMX address
Select DMX channel mode
Select dimmer curve
Select sound active mode and the sensitivity
level from <Sen000> - <Sen100>
Select static colour
Set intensity of each colour separately for
color mixing and strobe rate
Select built-in automatic programs, auto run
speed and dimmer level
Select Master/Slave modes
Recover manufactory default
