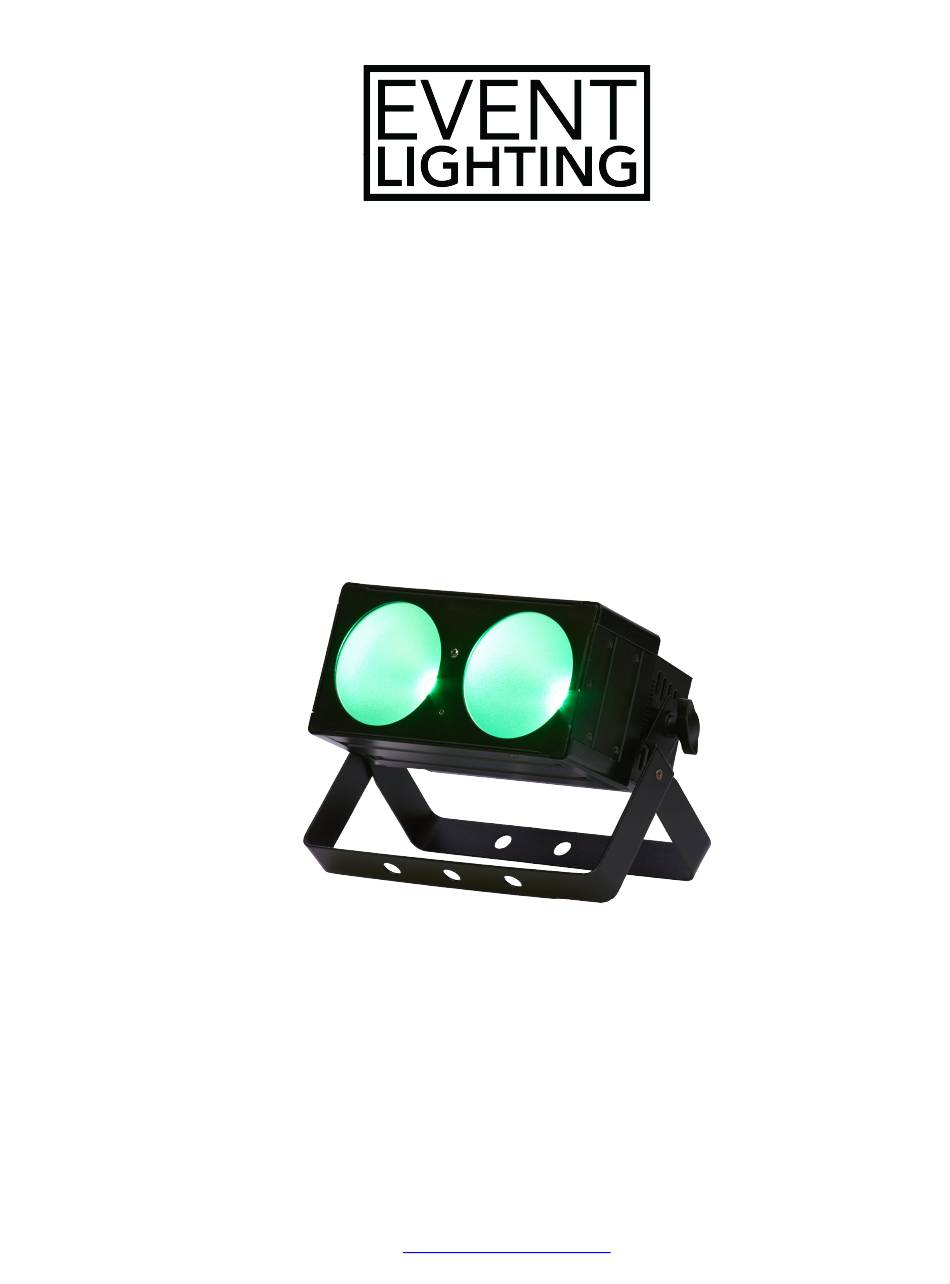

LED Pix Panel
PAN2x1x30
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 2.1
Advertisement
Table of Contents
Related Manuals for Event Lighting PAN2*1*30
Summary of Contents for Event Lighting PAN2*1*30
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Product appearance Control Board Operation DMX Values Technical Specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Product Appearance
www.event-lighting.com.au PRODUCT APPEARANCE, LUX CHART, DIMENSIONS... -
Page 5: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function 1.DMX Address <001> - <512> Set DMX address 2.DMX Channel <03> <05> <06> <09> <11> Select DMX channel mode 3.Dimmer Curve <01> <02> <03> <04> <05> Select dimmer curve 4.Sound Mode <Sen:000>... - Page 6 www.event-lighting.com.au Entered "Static Color", you can select the desired solid color via the “Up” or “Down” buttons, then “Enter” to confirm. Manual Colour mode Entered "Manual Color" mode, use “Up” and “Down” button to select the each colour RGB intensity from 000 to 255, select strobe (S) speed from S000 to S100.
- Page 7 www.event-lighting.com.au DMX CHARTS 3 channels mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 5 channels mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255...
- Page 8 www.event-lighting.com.au 120-139 RED 100% / GREEN 0% / BLUE 100% ~ 0% 140-159 RED 100% / GREEN 0% ~100% / BLUE 0% ~ 100% 160-179 RED 100%~ 0% / GREEN 100% ~ 0% / BLUE 100% 180-200 RED 100% / GREEN 100% / BLUE 100% 201-204 Color Temperature 1 205-209...
- Page 9 www.event-lighting.com.au 11 channels mode Channel Value Function 000-255 LED 1 Red: 0% ~ 100% 000-255 LED 1 Green: 0% ~ 100% 000-255 LED 1 Blue: 0% ~ 100% 000-255 LED 2 Red: 0% ~ 100% 000-255 LED 2 Green: 0% ~ 100% 000-255 LED 2 Blue: 0% ~ 100% 000-255...
-
Page 10: Technical Specifications
-Software Upgrade via DMX: Yes Housing -Housing Materials: Aluminium Housing -Housing finish: Matte Black -Cooling: Fanless Cooling -Dimension: 258 x 161 x 190 mm -Net Weight: 2.5 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
