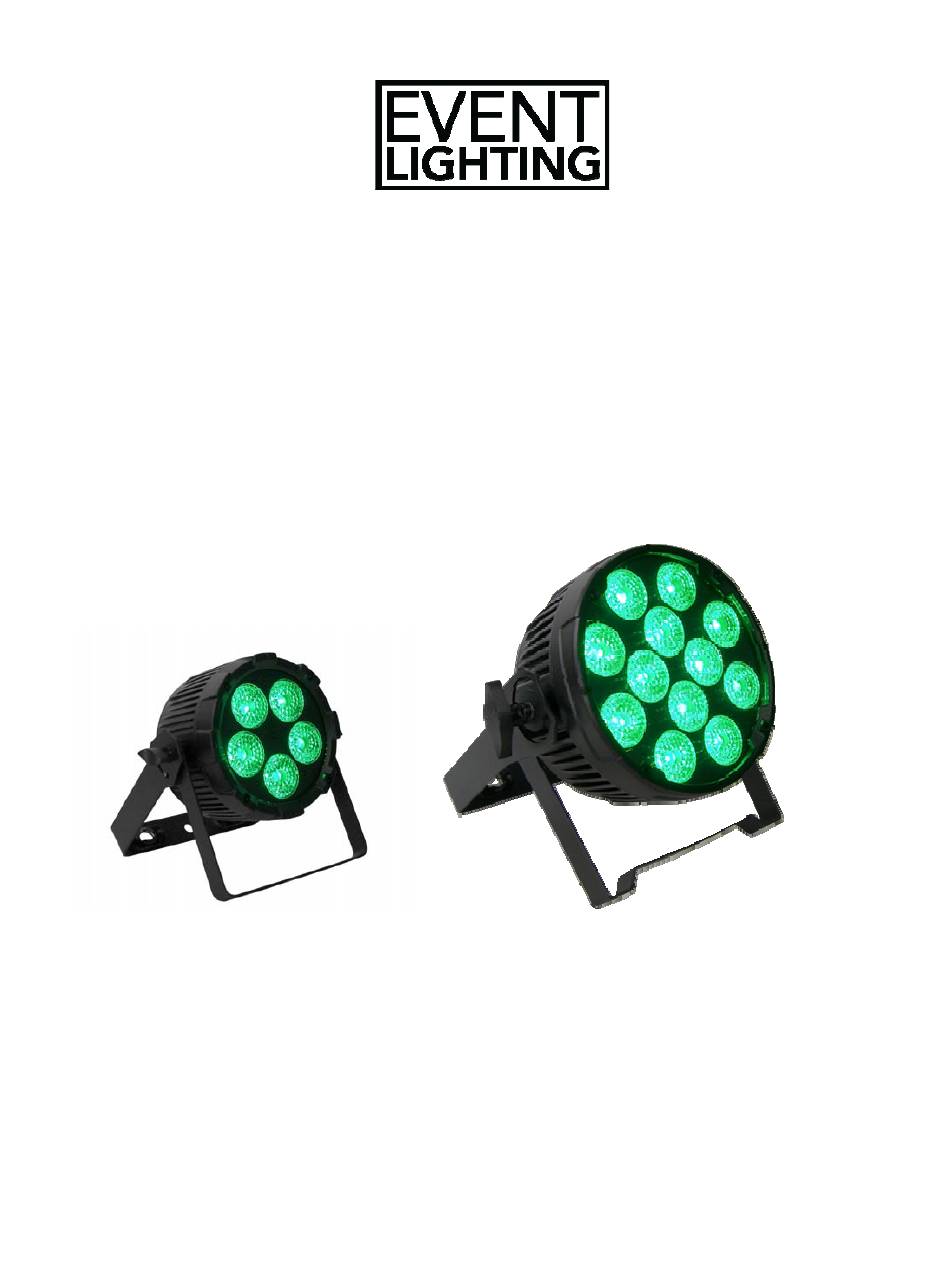

LED Pro Par with RGBW LEDs
PAR5Q, PAR12Q
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.eventec.com.au
Ver 2.1 (02.05.2025)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PAR5Q
Summary of Contents for Event Lighting PAR5Q
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www. eventec.com.au CONTENTS Safety Instructions..................2 Product Installation ..................2 Diagrams......................3 Control Board Operation ................6 DMX chart..................... 8 Technical specifications................10 Warranty......................10... -
Page 3: Safety Instructions
www. eventec.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
Lux Chart... - Page 5 Dimensions PAR5Q PAR12Q...
-
Page 6: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> Set DMX address DMX Cha <02> <03> <04> <06> <10> Select DMX channel mode Dimmer <01> <02> <03> <04> <05> Select dimmer curve Sound <Sen000> - <Sen100> Select sound active mode and the sensitivity level from <Sen000>... - Page 7 www.event-lighting.com.au Static Colour Mode Entered "Static C" mode, you can select the desired solid color via the “UP” or “DOWN” buttons, press “Enter" to save new setting 8W RGBW LED 8W RGBA LED Value: Function: Value: Function: Green Green Blue Blue White Amber...
-
Page 8: Dmx Chart
www.event-lighting.com.au Set sound active mode Pr 06 Entered “Auto Pro” mode, use “Up” and “Down” button to select the built-in program “Pr 06”, press “Enter” and use “Up” and “Down” button to select the sound sensitivity level from <Sen000> to <Sen100>, press “Enter" to save new setting. Set multi fixture chases Pr 07 Before starting, go to each fixture and reset the menu to fixture defaults. - Page 9 www.eventec.com.au 6 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 RGBW Model : White: 0% ~ 100% RGBA Model : Amber: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% 000-009 No function 010-019...
-
Page 10: Technical Specifications
DMX, WDMX, auto run, sound active, master/slave, manual colour control, static colour control Beam Angle 30˚ (40˚, 25˚, 15˚ Optional) Refresh Rate 2940Hz 1,2, 3, 4, 6, 10 DMX Channel mode DMX Interface 5-pin XLR WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.eventec.com.au...
