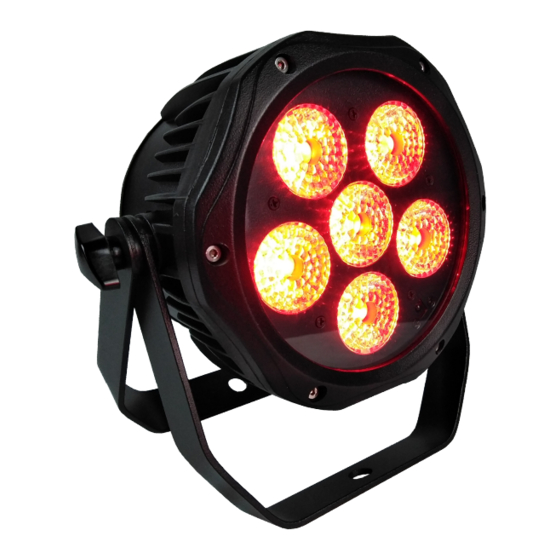

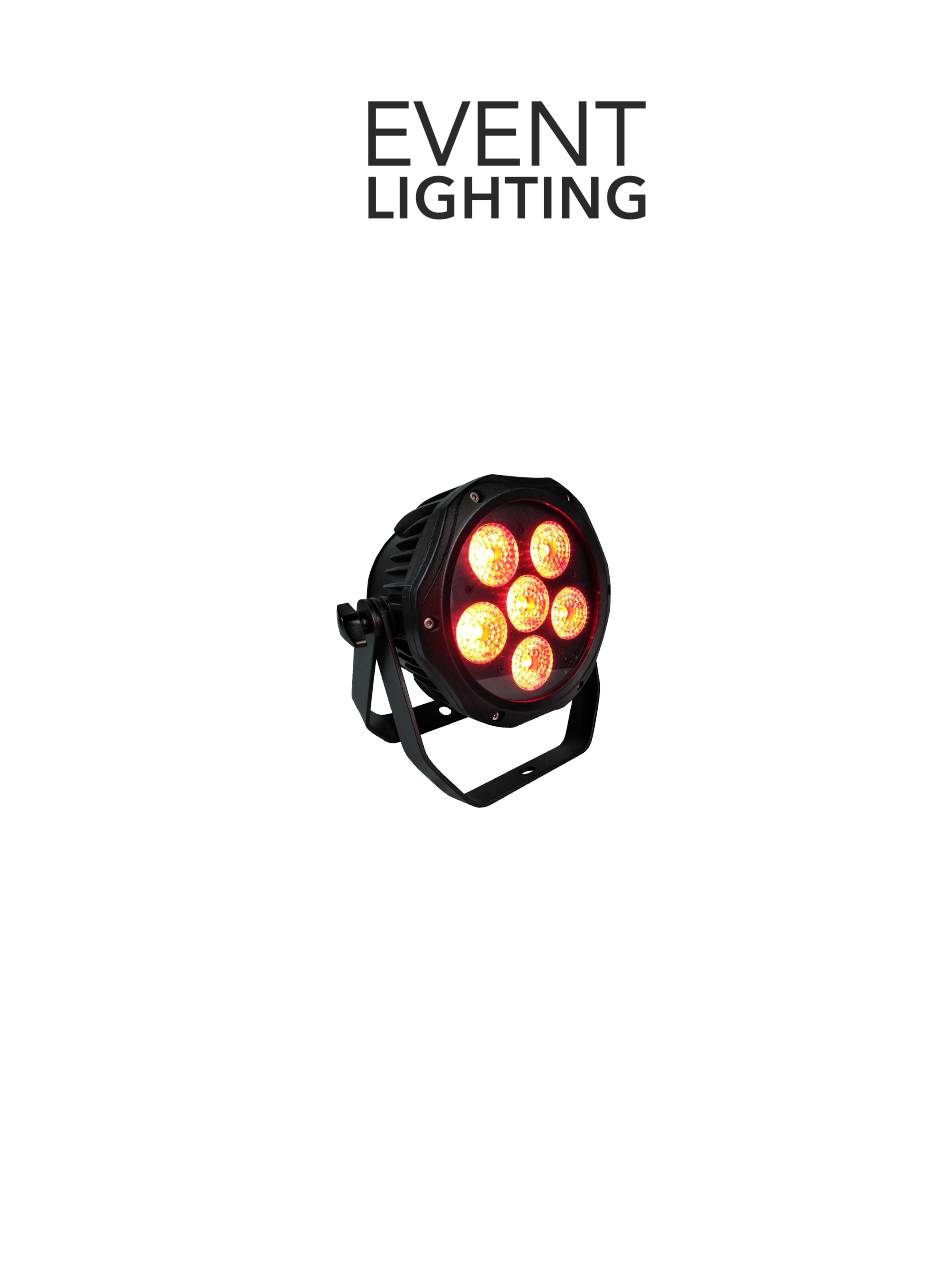

PRO PAR
Model No. PAR6X12OB
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PRO PAR PAR6X12OB
Summary of Contents for Event Lighting PRO PAR PAR6X12OB
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Dimensions Control Board Operation Menu map Static colour mode chart DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Dimensions
www.event-lighting.com.au Lux Chart Dimensions... -
Page 5: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Menu Map -> Select DMX address for 6 ch mode -> Select DMX address for 10 ch mode -> Set dimming speed (SL: slow / FA: fast) When lost DMX signal, -> ho: keep the last DMX signal state OF: blackout ->... -
Page 6: Static Colour Mode Chart
www.event-lighting.com.au Display current temperature Display version number -> Reset Static colour mode Value: Function: R + G B + R + UV G + B R + G + B + A + UV R + W G + W R + A B + W + UV R + B + W + UV... - Page 7 www.event-lighting.com.au Protocols TABLE1 Colour Protocol ELDMX Transmit and receive Green W-DMX Receive Blue W-DMX G3 Transmit Yellow W-DMX G4 Transmit Purple GZ Receive* (*Receiver Only) Using W-DMX mode Transmitters Pressing the button momentarily will connect to all unconnected receivers in the coverage area. Pressing the button for more than 3s will disconnect all receivers in the coverage area.
- Page 8 www.event-lighting.com.au IR remote control mode -You must switch off wireless DMX function, select -Select , then use IR remote to switch on IR remote control mode. Function Display Switch on/off IR function Pressing <blackout> button to switch on the fixture IR function, fixture will go to CC12 auto colour switch mode or your last setting your last setting...
- Page 9 www.event-lighting.com.au Select intensity of LED full on mode Pressing <%> button to cycle though 10% change of intensity on static colour (R255+G255+B255+W255+A255+U255) mode. Select intensity of static colour Using to change intensity (R255+G255+B255+W255+A255+U 255) Select intensity of static colour (R255) Using to change intensity Select intensity of static colour...
-
Page 10: Dmx Chart
www.event-lighting.com.au DMX Chart 6 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100%... - Page 11 www.event-lighting.com.au 10 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% 000-255 Strobe (slow-fast) 000-050...
-
Page 12: Technical Specifications
Approx. 20 hours single color at auto run Housing Materials: Die-cast Aluminum Finishing: Matte black IP rating: IP65 Net Weight: 3 kg Overall Size: 240 x 165 x 210 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
