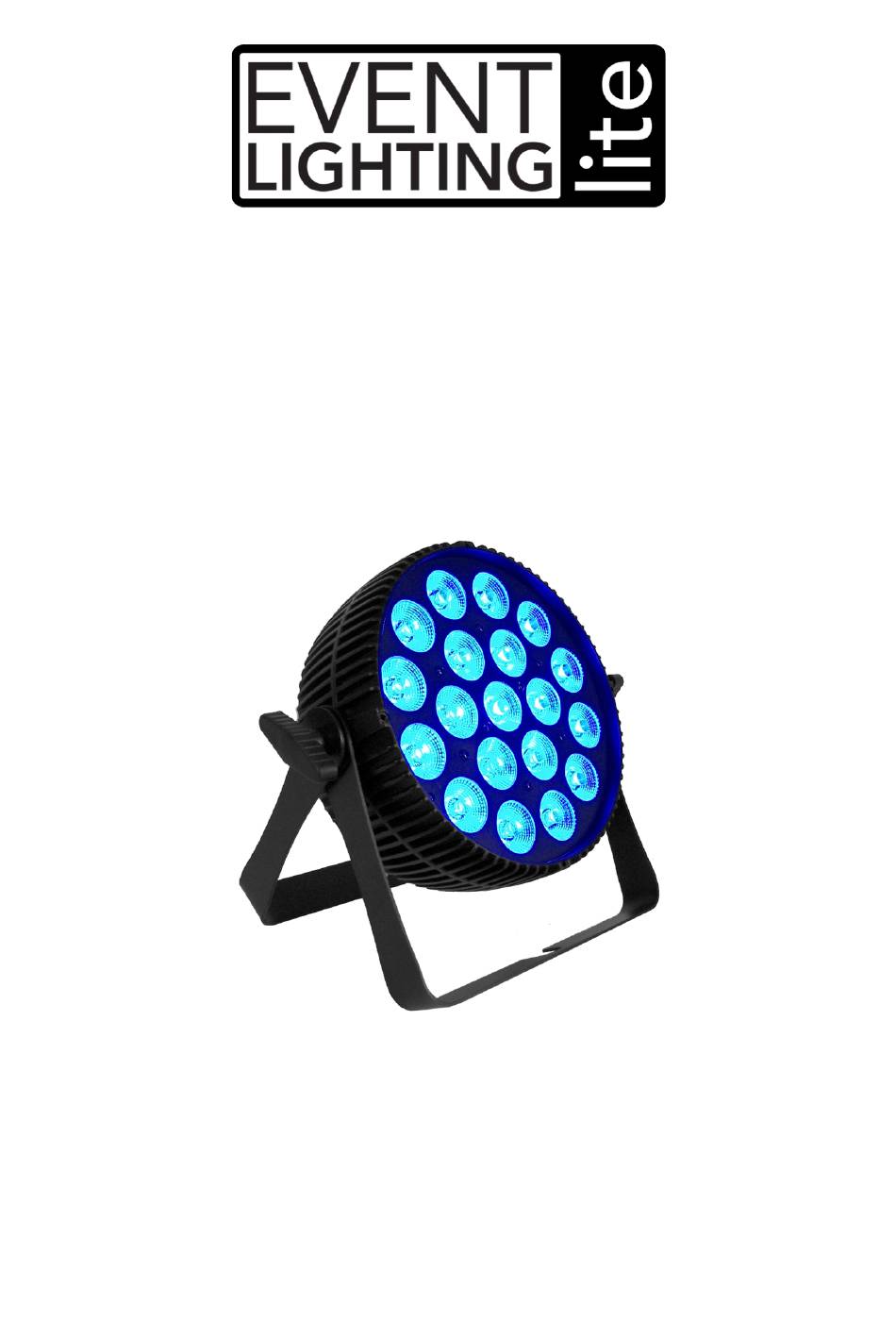

PAR19X12L
19x 12W LED RGBWAU Parcan with IR Remote
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting PAR19X12L
Summary of Contents for Event Lighting PAR19X12L
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 Keep batteries away from children. Product Installation PAR19X12L can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR19X12L overhead.
- Page 3 www.event-lighting.com.au Dimensions Lux Chart...
- Page 4 www.event-lighting.com.au Control Board Operation Menu Map -> Select DMX address -> Select DMX channel mode (CH-1: 6ch / CH-2: 11ch) -> Set program speed -> Select built-in program -> Select sound active mode -> Select static colour mode (See static colour mode chart below) ->...
- Page 5 www.event-lighting.com.au Static Colour Mode Value Function Green Red+Green Blue Blue+Red+UV Green+Blue Red +Green+Blue+Amber+UV White Red+White Green+White Red+Amber Blue+White+UV Red + Blue+White+UV Red + Blue+White Red+Green+Blue+White+Amber+UV DMX Chart 6 Channel Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255...
- Page 6 www.event-lighting.com.au 11 Channel Mode Channel Value Function Note 000-255 Master Dimmer 0% ~ 100% 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-012 Strobe OFF...
- Page 7 DMX connection. If a DMX signal is received, PAR19X12L will prioritise the DMX signal and ignore the IR Remote. Use On/Off to turn PAR19X12L on or off. The current IR settings will be saved automatically when PAR19X12L is powered off and reloaded when it is turned on again.
- Page 8 Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave Housing • Materials: Die cast aluminium, matte black finish • Cooling: Fanless Cooling • Net weight: 2.8 kg • Overall Size: 275x270x84 mm Warranty Please refer to your local dealer or contact Event Lighting.
