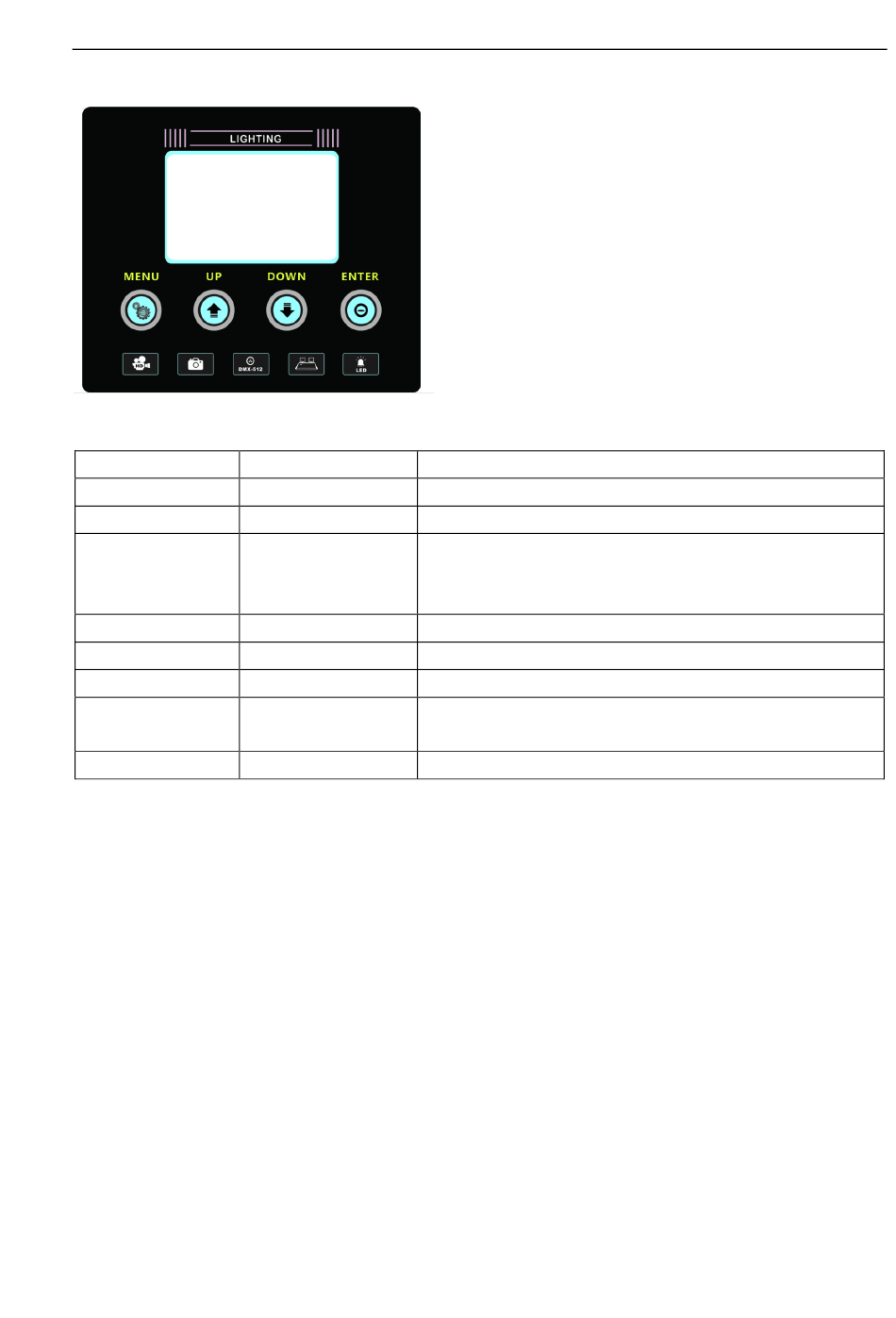

CONTROL BOARD OPERATION

Press the Menu until one of the following had been displayed:
Function
DMX
CHAN
MANUAL
CURVE
RESET
TEMP
FAN
VERSION
Use "Up" and "Down" buttons to select your desired operation, then press "Enter".
www.event-lighting.com.au
Values
001 – 512
01CH, 02CH, 03CH
DIM: 000 - 255
D_F: 000 - 255
STO: 000 - 255
Linear, S, Log
NO, Yes
Cur: NNN
NNN – Speed
Auto / Silent
A1.8.0
Description
Set DMX Address.
Set DMX Channel Mode.
Manually set intensity of Dimmer (0 = off, 255 = brightest).
Manually set intensity of Dimmer Fine (0 = off, 255 = brightest).
Manually set speed of Strobe (0 = off, 255 = fastest).
Select the dimming curve between Linear, S and Log.
Reset all settings to factory default.
Displays the current temperature in degrees Celsius.
Displays the current fan speed.
Select between Auto and Silent fan modes.
Displays the current firmware version.
