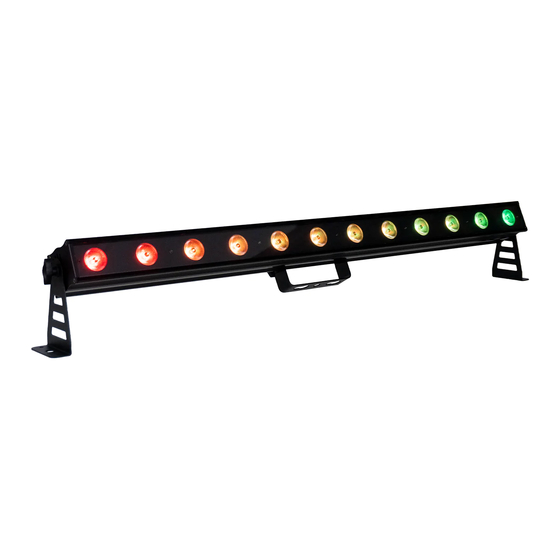

Event Lighting PIXBAR12x3 User Manual

Pixel bar
Hide thumbs Also See for PIXBAR12x3:
Table of Contents

Advertisement

Quick Links

Download this manual

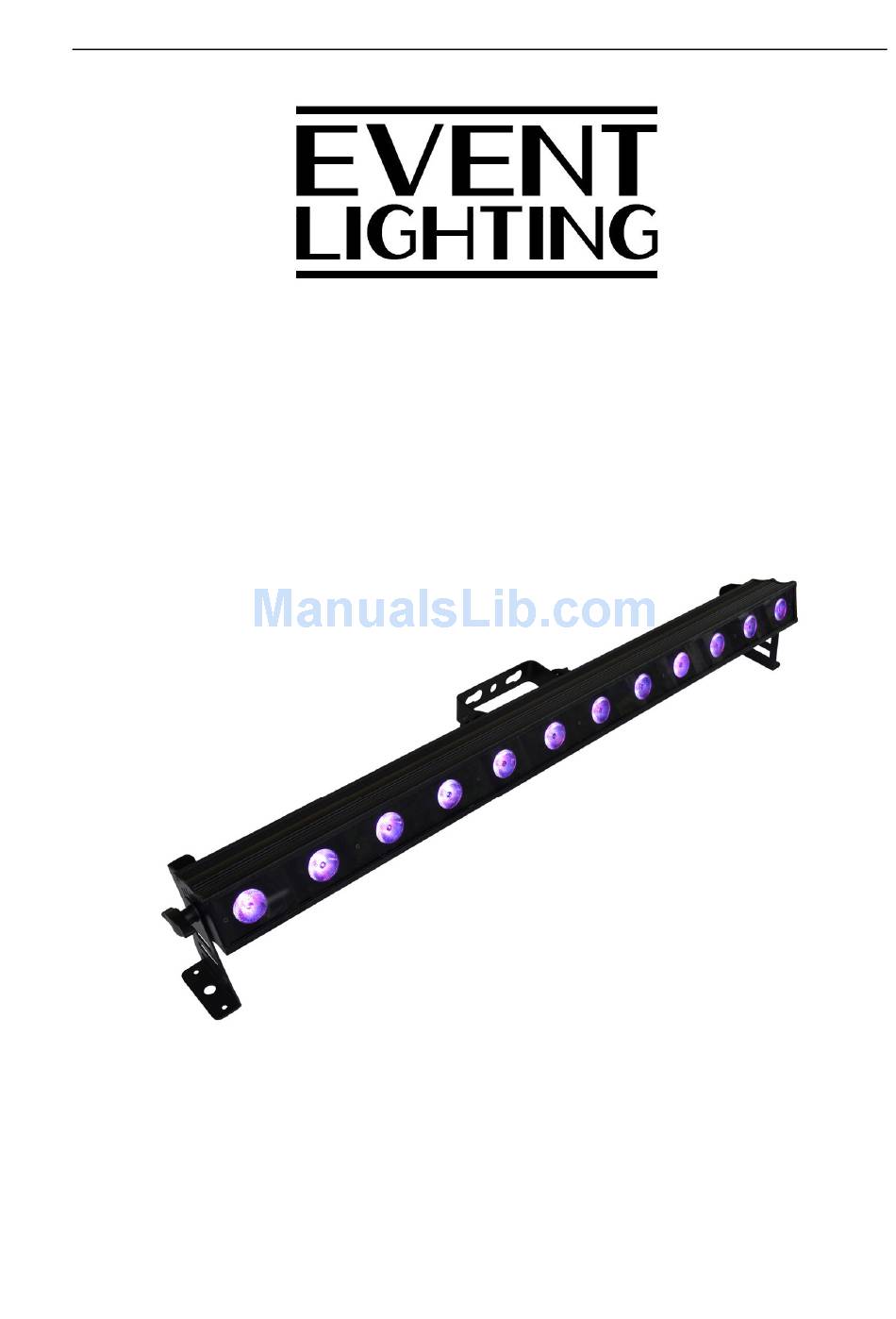

1
Pixel Bar
Model No. PIXBAR12x3 , PIXBAR12x8

USER MANUAL

For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXBAR12x3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PIXBAR12x3

Summary of Contents for Event Lighting PIXBAR12x3

  • Page 1: User Manual

    For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions Power Input & Power Linking Product Installation Fuse replacement Diagrams Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Sound Mode Setting Static Colors Manual Color Mode Automatic Mode Special Chaser Mode Settings for Master device Setting for the slave devices DMX Values Technical Specifications...

  • Page 3: Safety Instructions

    Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 4: Lux Chart

    Lux Chart Dimensions...

  • Page 5: Control Board Operation

    CONTROL BOARD OPERATION Press the Menu until one of the following displayed: Display 12x3 Display 12x8 Function 1.DMX Address 1.DMX Address To set DMX address To set DMX channel modes: 2.DMX Channel 2.DMX Channel 12x3 - CH03, CH05, CH06, CH07, CH09, CH12, CH18, CH36 12x8 - CH04, CH06, CH08, CH09, CH12, CH16, CH24, CH48 3.Dimmer Curve To set dimmer speeds: <01>...

  • Page 6: Automatic Mode

    Setting Static Colors Entered "4. Static Color" mode, you can select the desired solid color via the UP or DOWN buttons and confirm by Enter 12x3 12x8 Mode: Value: Function: Value: Function: Static color <R> Static color <R> Static color <G> Green Static color <G>...

  • Page 7: Special Chaser Mode

    Special Chaser Mode (only available for the internal programs Pr 12) This mode enables several slave units after the other so that chaser effects can be operated over several devices. You can build up to 126 different slave groups. as an explanation, we give an example with 10 different slave groups Settings for the master device 1.
  • Page 8 6 Channels Mode: 12x8 CHANNEL VALUE FUNCTION 000-255 Red 0% ~ 100% 000-255 Green 0% ~ 100% 000-255 Blue 0% ~ 100% 000-255 White 0% ~ 100% 000-255 Master DIMMER 0% ~ 100% 000-009 No Function 010-255 Strobe : Slow ~ Fast (1~30Hz) 6 Channels Mode: 12x3 CHANNEL VALUE...
  • Page 9 8 Channels Mode: 12x8 CHANNEL VALUE FUNCTION SECTION 000-255 Red 0% ~ 100% Section 1 000-255 Green 0% ~ 100% (1,2,3,4) 000-255 Blue 0% ~ 100% Section 2 (5,6,7,8) 000-255 White 0% ~ 100% 9 Channels Mode: 12x3 CHANNEL VALUE FUNCTION SECTION 1,4,7...
  • Page 10 16 Channels Mode: 12x8 CHANNEL VALUE FUNCTION SECTION 1,5,9,13 000-255 Red 0% ~ 100% Section 1 (1,2,3,4) 2,6,10,14 000-255 Green 0% ~ 100% Section2 (5,6,7,8) Section 3 (9,10,11,12) 3,7,11,15 000-255 Blue 0% ~ 100% Section 4 (12,14,15,16) 4,8,12,16 000-255 White 0% ~ 100% 18 Channels Mode: 12x3 CHANNEL VALUE...
  • Page 11 36 Channels Mode: 12x3 CHANNEL VALUE FUNCTION SECTION Section 1 (1,2,3) Section 2 (4,5,6) 1,4,7,10,13,16,19,22,25,28,31,34 000-255 Red 0% ~ 100% Section 3 (7,8,9) Section 4 (10,11,12) Section 5 (13,14,15) Section 6 (16,17,18) 2,5,8,11,14,17,20,23,26,29,32,35 000-255 Green 0% ~ 100% Section 7 (19,20,21) Section 8 (22,23,24) Section 9 (25,26,27) Section 10 (28,29,30)

  • Page 12: Technical Specifications

    LCD display with 4 buttons control Smooth electronic dimming with a 16-bit 4 Dimmer curve Aluminum Housing Smart Cooling system without fan Variable Speed Strobe Effect (1 – 30 Hz) WARRANTY Please refer to your local dealer or please contact Event Lighting.

This manual is also suitable for:

Pixbar12x8
