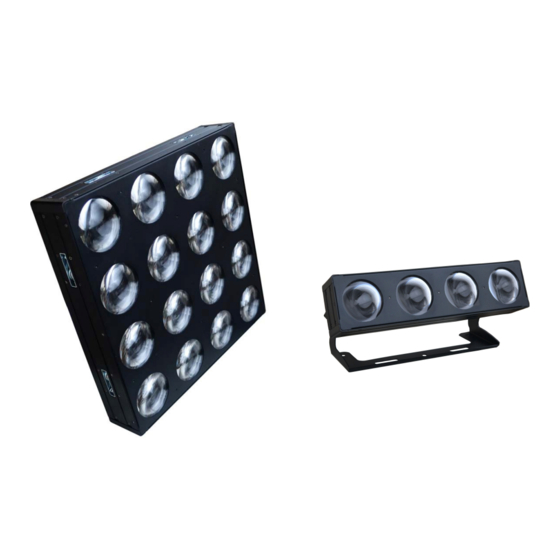

PANEL BEAM
Model No. PANBEAM4x4x10 PANBEAM4x1x10
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1
Advertisement
Table of Contents
Related Manuals for Event Lighting PANBEAM4x4x10
Summary of Contents for Event Lighting PANBEAM4x4x10
-

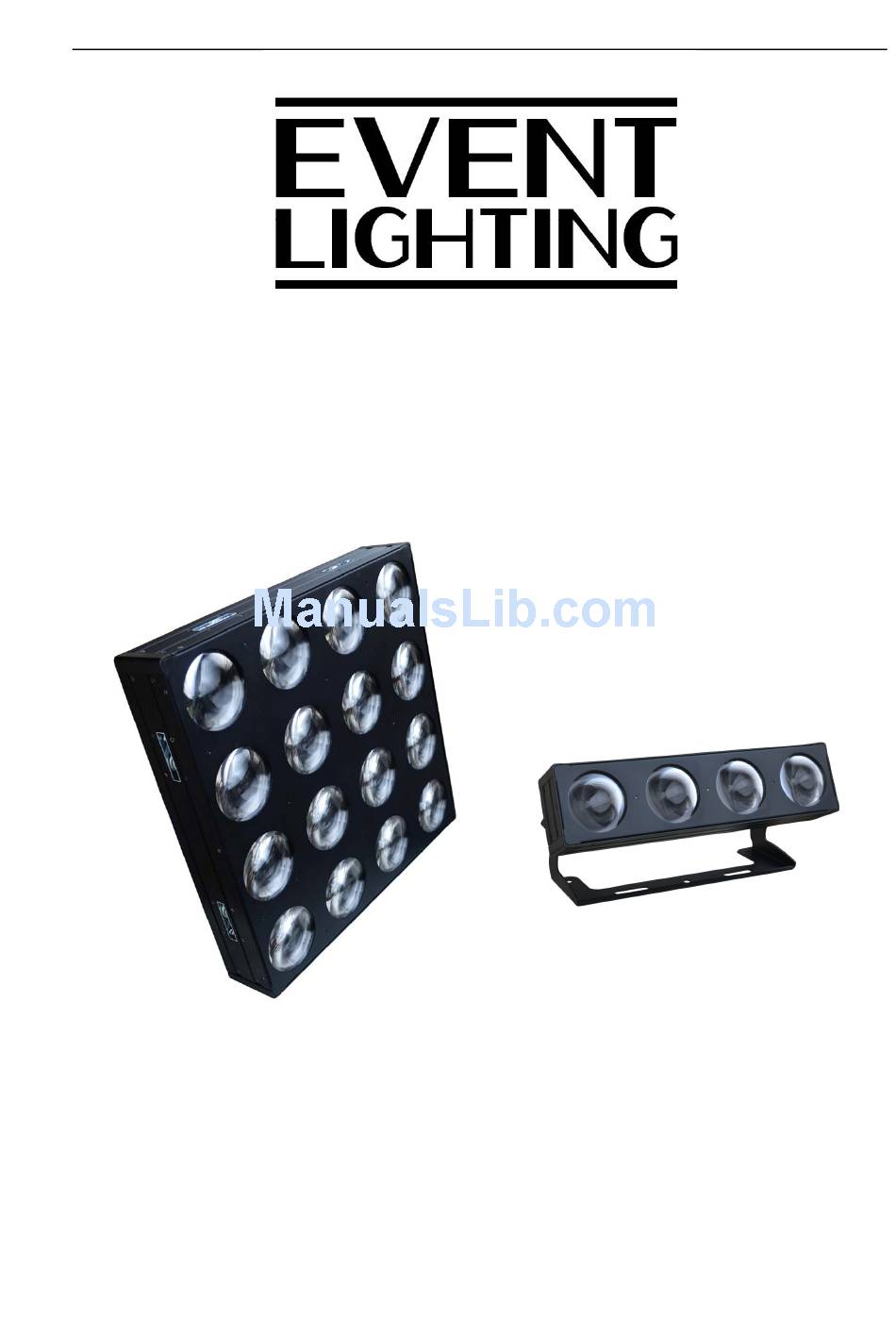

Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. -
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Appearance, Lux Chart, Dimensions
PRODUCT APPEARANCE, LUX CHART, DIMENSIONS... -
Page 4: Control Board Operation
CONTROL BOARD OPERATION Press the Menu until one of the following displayed: Display Function To set DMX 1.DMX Address address To set DMX channel modes: 2.DMX Channel 4x4 Model - CH 04, CH 06, CH 09, CH64 4x1 Models - CH 04, CH 06, CH 09, CH16 3.Dimmer Curve To set dimmer speeds: 01, 02, 03, 04 4.Sound Mode... -
Page 5: Setting Static Colors
Setting Static Colors Entered "Static Color", you can select the desired solid color via the UP or DOW N buttons and confirm by Enter (see following graphic). Mode: RGBW Models Value: Function: Green Blue White Green + Blue Red + Blue Red + Green Static Colour Red + Green + Blue... -
Page 6: Dmx Values
DMX VALUES 4 Channels Mode: ALL Models CHANNEL VALUE FUNCTION 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 6 Channels Mode: ALL Models CHANNEL VALUE FUNCTION 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255... - Page 7 Speed of Auto Programs (Slow ~ 000-255 Fast) 000-009 Default dimmer speed 010-070 Non-linear dimmer 1 071-132 Non-linear dimmer 2 133-194 Non-linear dimmer 3 195-255 Non-linear dimmer 4 16 Channels Mode: 4x1 Model CHANNEL VALUE FUNCTION 1,5,9,13 000-255 Red 0% ~ 100% 2,6,10,14 000-255 Green 0% ~ 100%...
-
Page 8: Technical Specifications
Fresnel lens for color beam Smooth electronic dimming with a 16-bit 4 Dimmer curve Oxidation surface treated aluminum Housing Smart Cooling system without fan Variable Speed Strobe Effect (1 – 30 Hz) WARRANTY Please refer to your local dealer or please contact Event Lighting.
