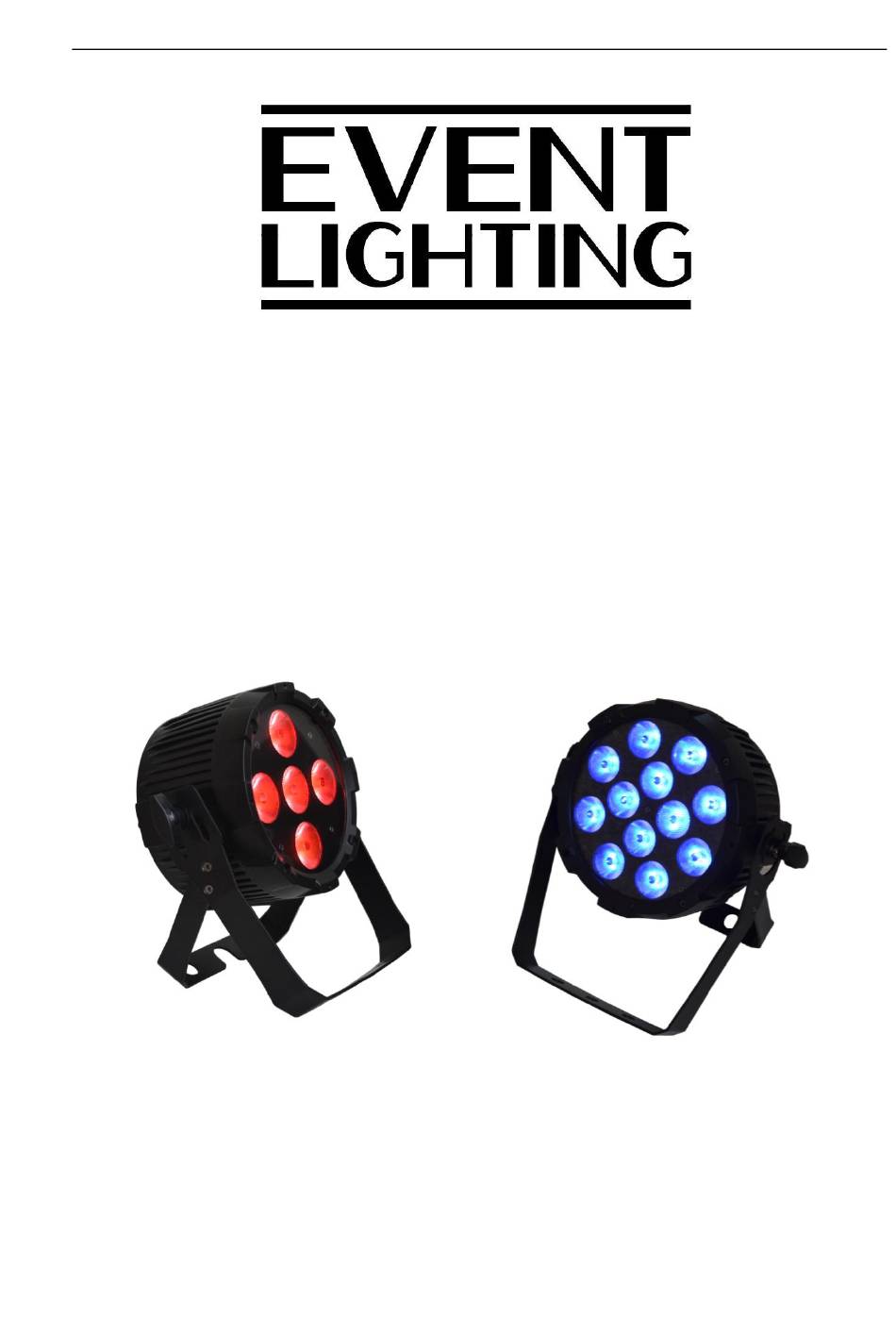

1

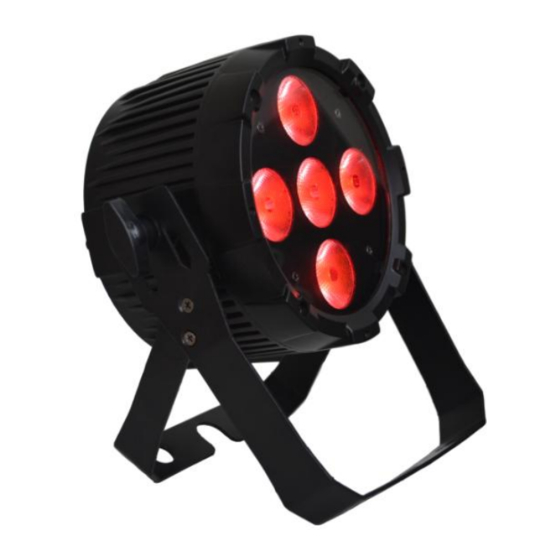

Thin Propar Quad
Model No. PARRGBW12x8 /
PARRGBW5x8
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting Thin Propar Quad PARRGBW12x8
Summary of Contents for Event Lighting Thin Propar Quad PARRGBW12x8
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Power Input & Power Linking Product Installation Fuse replacement Diagrams Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Dimmer Speed Setting Sound Mode Setting Static Colors Manual Color Mode Automatic Mode Master/slave Operation DMX Values 10 Channels Mode 6 Channels Mode 4 Channels Mode... -
Page 3: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
Lux Chart 12 LED version... - Page 5 5 LED version...
-
Page 6: Dimensions
Dimensions 12 LED version 5 LED version... -
Page 7: Control Board Operation
CONTROL BOARD OPERATION Display Function DMX Addr To set DMX address DMX Chan To set DMX channel modes: CH10, CH06, CH04 Dimmer C To set dimmer speeds: <01>, <02>, <03>, <04> Sound To set sound active mode and the sensitivity (Sen000 ~ Sen100) To set static colors: Static Color R, G, B, W, GB, RB, RG, RGB, RW, GW, BW, RGW, RBW, GBW, Static C RGBW... -
Page 8: Manual Color Mode
Green + Blue + White RGBW Red + Green + Blue + White Manual Color Mode This mode allows the user set intensity of R, G, B, W separately to get endless color mixing from the control board without DMX controller to set the device to run strobe desired. Entered "Manual C"... - Page 9 DMX VALUES: 10 Channels Mode: CHANNEL VALUE FUNCTION 000-255 Red 0% ~ 100% 000-255 Green 0% ~ 100% 000-255 Blue 0% ~ 100% 000-255 White 0% ~ 100% 000-255 Master DIMMER 0% ~ 100% 000-009 Strobe OFF 010-255 Strobe (slow-fast 1-30Hz) 000-019 No Function 020-039...
- Page 10 010-057 Auto Program 1 R G B W colors switching 058-106 Auto Program 2 15 colors switching 107-155 Auto Program 3 R G B W colors fading 156-204 Auto Program 4 15 colors Fading 205-255 Auto Program 5 Color Macros Fading 000-255 Speed of Auto Programs (Slow ~ Fast) 000-009...
-
Page 11: Warranty
Maximum housing temperature TC (steady state): 80° C Maximum housing temperature TC (steady state): 80° C Min. distance from flammable surfaces: 0.5 m Min. distance from flammable surfaces: 0.5 m WARRANTY Please refer to your local dealer or please contact Event Lighting.
