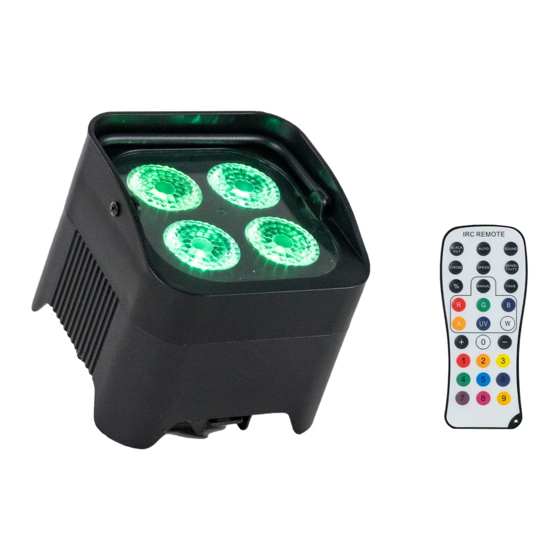

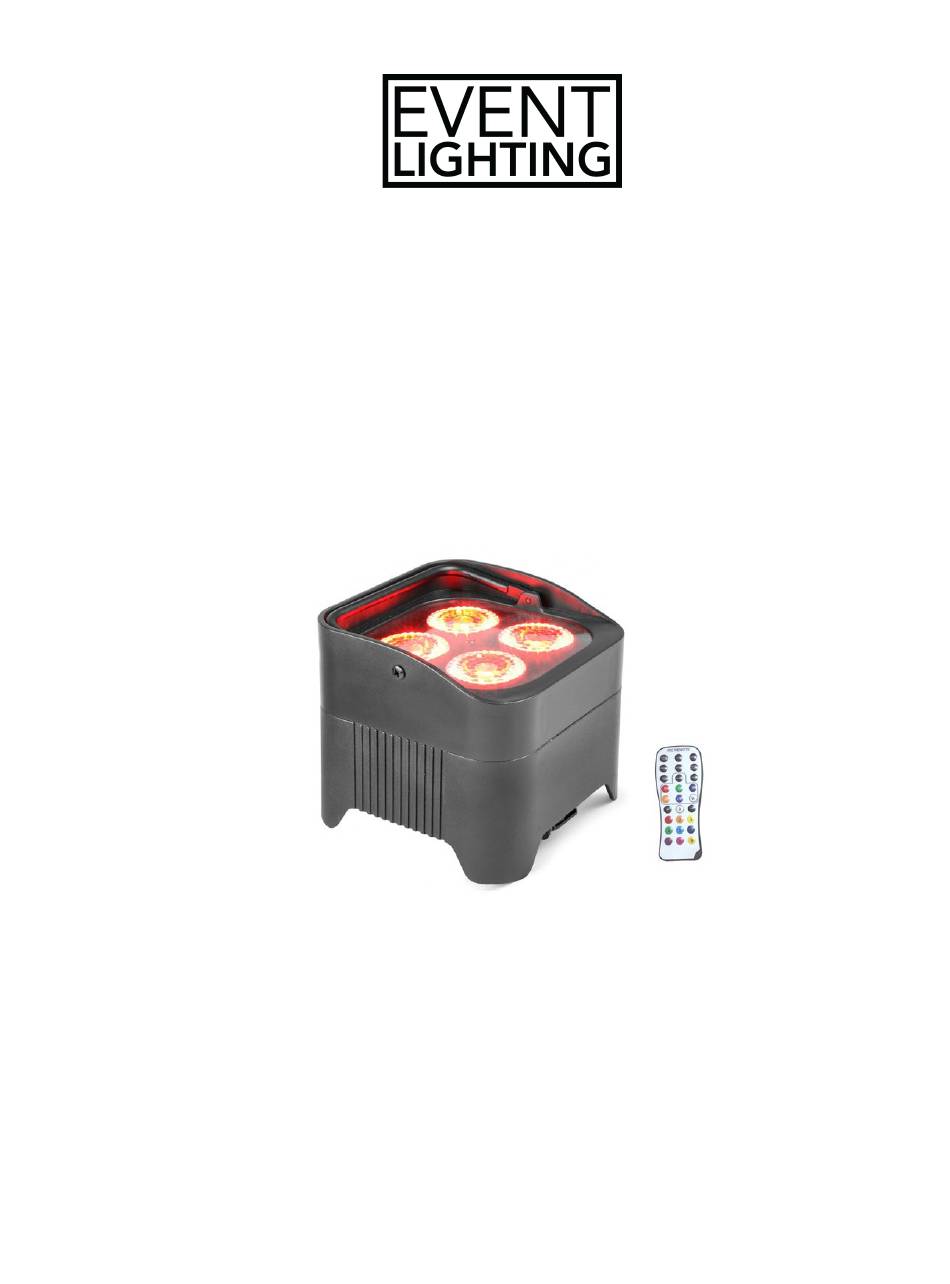

PRO PAR
Model No. PAR4X12B
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0.1 (27 Apr 2020)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO PAR and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PRO PAR

Summary of Contents for Event Lighting PRO PAR

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Diagrams Control Board Operation DMX chart Technical specifications Warranty...

  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
  • Page 4 www.event-lighting.com.au Lux Chart Dimensions...

  • Page 5: Control Board Operation

    www.event-lighting.com.au CONTROL BOARD OPERATION Menu Map -> Select DMX address for 6 ch mode -> Select DMX address for 10 ch mode -> Remaining percentage of battery power -> Set dimming speed (SL: slow / FA: fast) When lost DMX signal, ->...
  • Page 6 www.event-lighting.com.au Wi-Fi Control Mode Display current temperature Display version number -> Reset Static colour mode Value: Function: R + G B + R + UV G + B R + G + B + A + UV R + W G + W R + A B + W + UV...
  • Page 7 www.event-lighting.com.au Protocols TABLE1 Colour Protocol ELDMX Transmit and receive Green W-DMX Receive Blue W-DMX G3 Transmit Using W-DMX mode Transmitters Pressing the button momentarily will connect to all unconnected receivers in the coverage area. Pressing the button for more than 3s will disconnect all receivers in the coverage area. Receivers Pressing the button for more than 3s will disconnect the device with a transmitter.
  • Page 8 www.event-lighting.com.au IR remote control mode -You must switch off wireless DMX function, select -Select , then use IR remote to switch on IR remote control mode. Function Display Switch on/off IR function Pressing <blackout> button to switch on the fixture IR function, fixture will go to or your last setting CC12 auto colour switch mode or your last setting...
  • Page 9 www.event-lighting.com.au Select intensity of static colour Using to change intensity (R255) Select intensity of static colour Using to change intensity (UV50+R255) Select intensity of static colour Using to change intensity (R255+G50) Select intensity of static colour Using to change intensity (G255) Select intensity of static colour Using...
  • Page 10 www.event-lighting.com.au Wi-Fi Mode Downloading the application Login to the App Store (iOS) or Google Play (Android), download LED Wifi application. It allows you to control the PAR4x12B using your mobile devices with iOS / Android operating systems. App Store (iOS) Google Play (Android) Connecting mobile devices with iOS / Android to PAR4X12B Step 1: On your mobile devices, select Settings >...

  • Page 11: Dmx Chart

    www.event-lighting.com.au DMX Chart 6 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 10 channels Mode Channel Value Function...

  • Page 12: Technical Specifications

    Approx. 15 hours Single Colour at Auto Run Housing Materials: Die-cast Aluminum Finishing: Matte black IP rating: IP20 Net Weight: 1.9 kg Overall Size: 133 x 134 x 119 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: ww.event-lighting.com.au.

This manual is also suitable for:

Par4x12bPro par par4x12b
