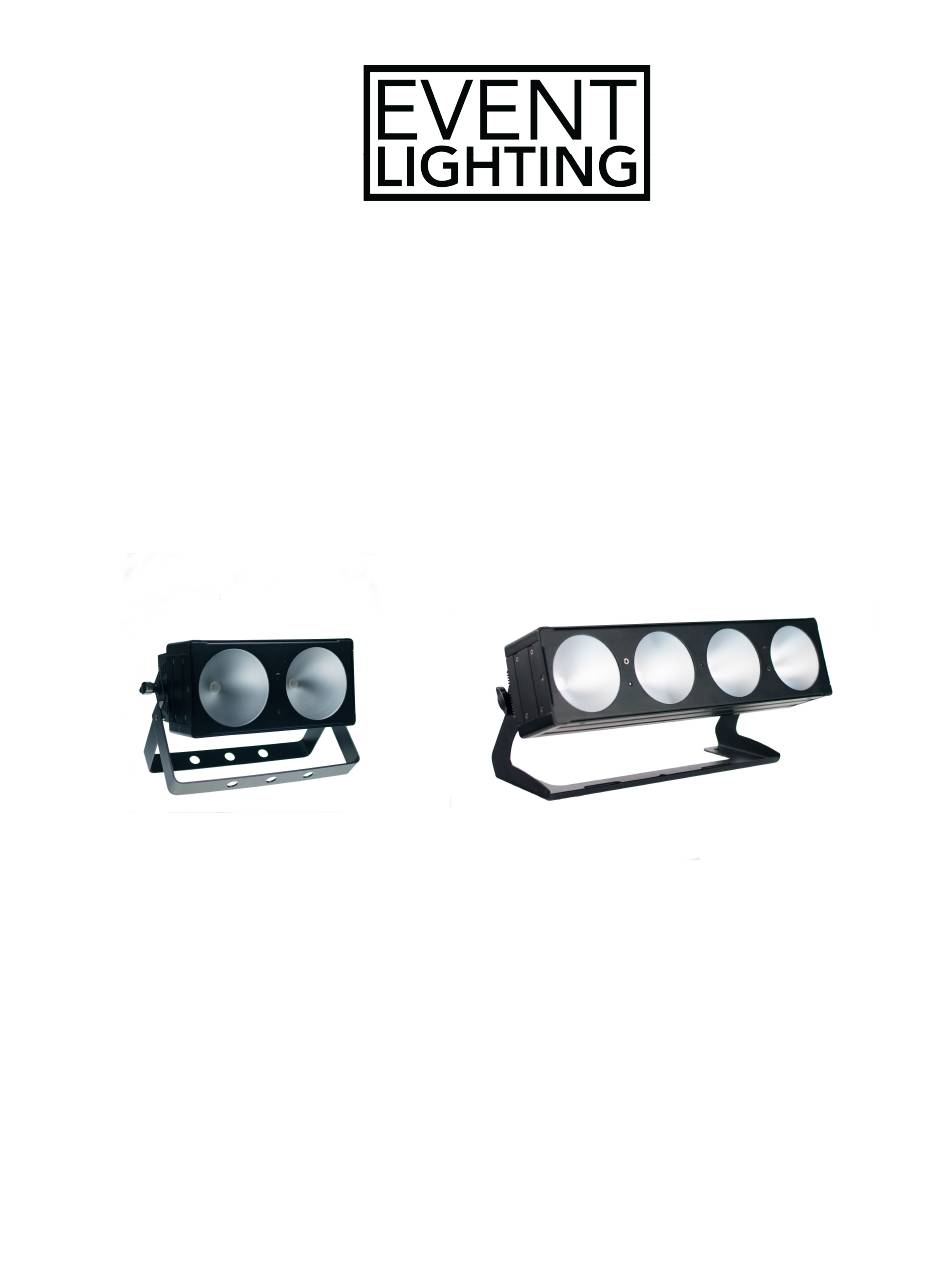

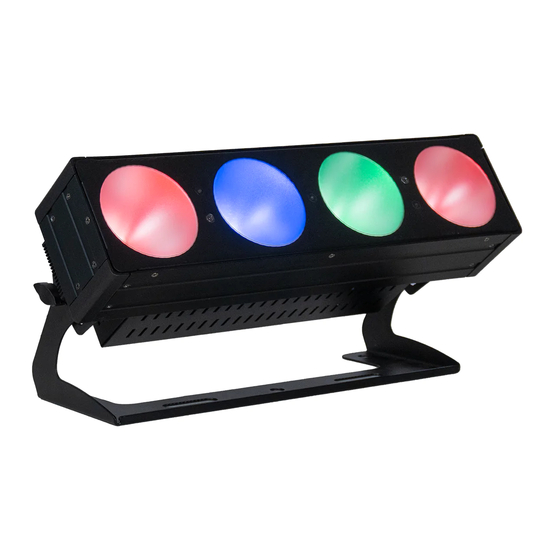

LED Pix Panel
PAN8X1X30, PAN4x1x30 ,PAN4x1x15, PAN2x1x30
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 2.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PAN8X1X30
Summary of Contents for Event Lighting PAN8X1X30
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power Input & Power Linking Product Installation Fuse replacement Product appearance Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Dimmer Speed Setting Sound Mode Setting Static Colors User Mode Automatic Mode DMX Values Technical Specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Product Appearance, Lux Chart, Dimensions
www.event-lighting.com.au PRODUCT APPEARANCE, LUX CHART, DIMENSIONS... -
Page 5: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Press the Menu until one of the following had been displayed: Display Function 1.DMX Address To set DMX address 2.DMX Channel To set DMX channel modes: 4x1 Models - CH 03, CH 05, CH 09, CH12, CH17 2x1 Model - CH 03, CH 05, CH 06, CH09, CH11 3.Dimmer Curve To set dimmer speeds: 01, 02, 03, 04, 05... -
Page 6: Automatic Mode
Entered "Auto Program" mode, use “Up” and “Down” to select the built-in auto run programs, press "Enter" to confirm. se “Up” and “Down” to select the operating speed of the auto program (Sp 000 ~ Sp100, freeze, slow ~ fast) PAN2X1X30 PAN4X1X15 & PAN4X1X30 & PAN8X1X30 Pr 01 R G B colors switching... -
Page 7: Dmx Values
www.event-lighting.com.au To setup multi fixture chases Before starting, go to each fixture and reset the menu to fixture defaults. 1. On the master unit, setup the DMX address to the total number of fixtures in the string. For example, you may have a total of 20 par cans including the master, so the DMX address should be set to “20”. - Page 8 6/12/24 channels mode PAN2X1X30 PAN4X1X30 PAN8X1X30 Value Function PAN4X1X15 000-255 LED 1 Red: 0% ~ 100% 000-255 LED 1 Green: 0% ~ 100% 000-255 LED 1 Blue: 0% ~ 100% 000-255 LED 2 Red: 0% ~ 100% 000-255 LED 2 Green: 0% ~ 100%...
- Page 9 9 channels mode PAN2X1X30 PAN4X1X30 Value Function PAN4X1X15 PAN8X1X30 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 Master dimmer 0% ~ 100% 000-009 Strobe OFF 010-255 Strobe (slow-fast 1-30Hz) 000-019 No Function...
- Page 10 www.event-lighting.com.au 054-068 7 colors Fading 069-083 Color Macros Fading 084-098 Effect program 1 099-113 Effect program 2 114-128 Effect program 3 129-143 Effect program 4 144-158 Effect program 5 159- 173 Effect program 6 174-188 Effect program 7 189-203 Effect program 8 204-218 Effect program 9 219-233...
- Page 11 11/17/29 channels mode PAN2X1X30 PAN4X1X30 PAN8X1X30 Value Function PAN4X1X15 000-255 LED 1 Red: 0% ~ 100% 000-255 LED 1 Green: 0% ~ 100% 000-255 LED 1 Blue: 0% ~ 100% 000-255 LED 2 Red: 0% ~ 100% 000-255 LED 2 Green: 0% ~ 100%...
- Page 12 www.event-lighting.com.au 054-068 7 colors Fading 069-083 Color Macros Fading 084-098 Effect program 1 099-113 Effect program 2 114-128 Effect program 3 129-143 Effect program 4 144-158 Effect program 5 159- Effect program 6 174-188 Effect program 7 189-203 Effect program 8 204-218 Effect program 9 219-233...
-
Page 13: Technical Specifications
DMX, auto run, sound active, master/slave, manual colour control, static colour control Beam Angle 60° Refresh Rate 11,700Hz DMX Channel mode 3/5/9/6/11 3/5/9/12/17 3/5/9/24/29 Power Input Power Output WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
