PAR12X12L

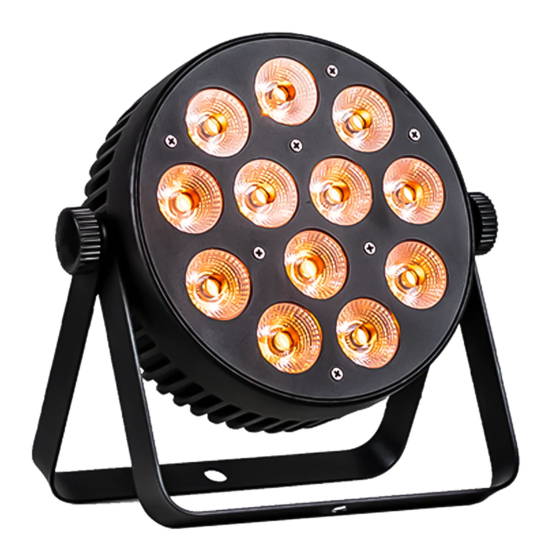

12x 12W RGBWAU 6-in-1 LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR12X12L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PAR12X12L

Summary of Contents for Event Lighting PAR12X12L

  • Page 1: User Manual

    For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    Stop using this device immediately if a serious operating problem becomes apparent. Product Installation PAR12X12L can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR12X12L...
  • Page 3 www.event-lighting.com.au Dimensions Lux Chart Distance (m) Diameter (m) Ø 0.73 Ø 1.46 Ø 2.18 Ø 2.91 Ø 3.64 1445 Green 2030 Blue 2910 White 2420 Amber Full 8550 2580 1123...

  • Page 4: Menu Map

    www.event-lighting.com.au Control Board Operation Menu Map -> Select DMX address -> Select DMX channel mode (CH-1: 6ch / CH-2: 11ch) -> Set program speed -> Select built-in program -> Select sound active mode -> Select static colour mode (See static colour mode chart below) ->...
  • Page 5 www.event-lighting.com.au Static Colour Mode Value Function Green Red+Green Blue Blue+Red+UV Green+Blue Red +Green+Blue+Amber+UV White Red+White Green+White Red+Amber Blue+White+UV Red + Blue+White+UV Red + Blue+White Red+Green+Blue+White+Amber+UV DMX Chart 6 Channel Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255...

  • Page 6: Channel Mode

    www.event-lighting.com.au 11 Channel Mode Channel Value Function Note 000-255 Master DIMMER 0% ~ 100% 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-012 Strobe OFF...
  • Page 7 DMX connection. If a DMX signal is received, PAR12X12L will prioritise the DMX signal and ignore the IR Remote. Use On/Off to turn PAR12X12L on or off. The current IR settings will be saved automatically when PAR12X12L is powered off and reloaded when it is turned on again.

  • Page 8: Technical Specifications

    Display: 4-button and 4-digit LED Display Control Panel • Cooling: Fanless Housing • Materials: Die Cast Aluminium. • Finishing: Matte Black. • IP Rating: IP20 • Net Weight: 1.85kg • Overall Size: 212x220x62mm Warranty Please refer to your local dealer or contact Event Lighting.
