PAR6X12OB

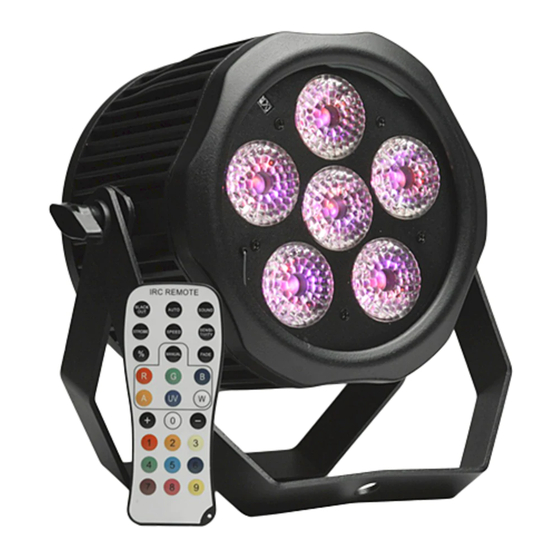

6x 12W RGBWAU Outdoor Battery LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0
Safety Instructions
Advertisement
Table of Contents
Related Manuals for Event Lighting PAR6X12OB
Summary of Contents for Event Lighting PAR6X12OB
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Product Installation
Stop using this device immediately if a serious operating problem becomes apparent. Product Installation PAR6X12OB can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR9X15O... -
Page 3: Lux Chart
www.event-lighting.com.au Dimensions Lux Chart Distance (m) Diameter (m) Ø0.73 Ø1.46 Ø2.18 Ø2.91 Ø3.64 1,160 1,205 1,280 Full 3,820... -
Page 4: Control Board Operation
www.event-lighting.com.au Control Board Operation -> Select DMX address for 6 ch mode -> Select DMX address for 10 ch mode -> Set dimming speed (SL: slow / FA: fast) When lost DMX signal, -> ho: keep the last DMX signal state OF: blackout ->... -
Page 5: Wireless Dmx Mode
R + G + B + W + A + UV Wireless DMX Mode Set Up Wireless DMX PAR6X12OB needs to be paired from the Wireless DMX transmitter. Follow the steps below to pair: 1. Connect the DMX512 controller to the wireless DMX transmitter. - Page 6 www.event-lighting.com.au Using WDMX Mode Transmitters Press the button to connect all unconnected receivers in the coverage area. Press the button for 3 seconds to disconnect all receivers in the coverage area. Receivers Press the button for 3 seconds to disconnect the device from the transmitter it is currently connected to.
-
Page 7: Ir Remote Control Mode
www.event-lighting.com.au IR Remote Control Mode • You must switch off wireless DMX function, select • Select , then use IR remote to switch on IR remote control mode. Function Display Switch on/off IR function Press <blackout> button to switch on the fixture IR function, fixture or your last setting will go to CC12 auto colour switch mode or your last setting... -
Page 8: Dmx Chart
www.event-lighting.com.au Select intensity of static to change intensity colour (R255+G50) Select intensity of static to change intensity colour (G255) Select intensity of static to change intensity colour (G160+B255+UV100) Select intensity of static to change intensity colour (B255+UV50) Select intensity of static to change intensity colour (R50+B255+UV200) Select intensity of static... - Page 9 www.event-lighting.com.au Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% 000-255 Strobe (slow-fast) 000-050...
-
Page 10: Technical Specifications
Materials: Die-cast Aluminium • Finishing: Matte black • IP rating: IP65 • Net Weight: 3 kg • Overall Size: 240 x 165 x 210 mm Warranty Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
