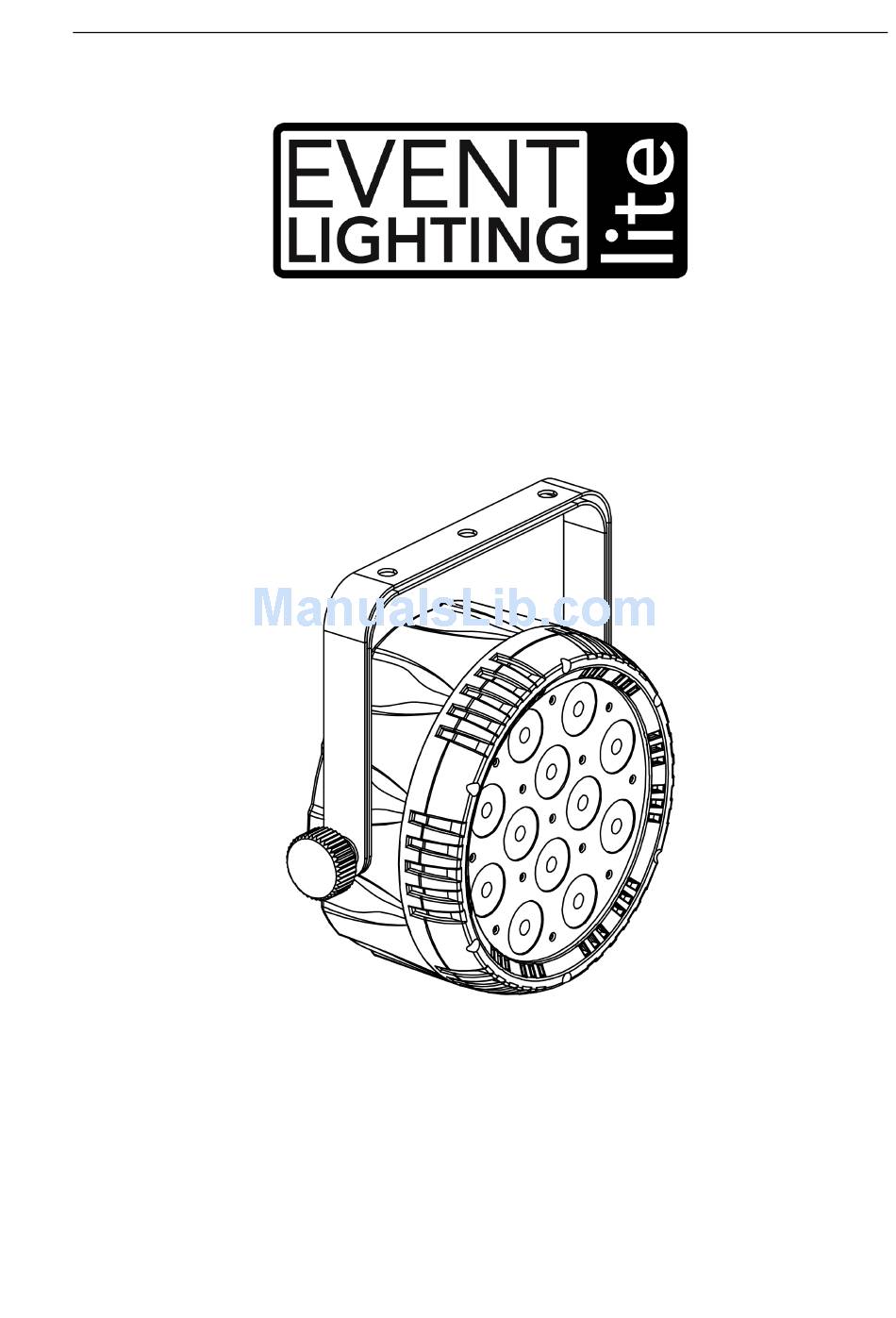

PRO PAR
Model No. PARP12x8
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 33
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PARP12x8
Summary of Contents for Event Lighting PARP12x8
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. - Page 2 www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Dimensions Control Board Operation Menu map Static colour mode chart DMX chart Technical specifications Warranty...
-
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 4 www.event-lighting.com.au CONTROL BOARD OPERATION Menu Map Select DMX address -> Select DMX channel mode (CH-1: 4ch / CH-2: 9ch) -> Set program speed -> Select built-in program -> Select sound active mode -> Select static colour mode -> (See static colour mode chart below) Set strobe speed (Hz) ->...
- Page 5 www.event-lighting.com.au Static colour mode Value: Function: Green Blue White Red + White Green + White Blue + White Green + Blue Red + Blue Red + Green Red + Green + Blue Green + Blue + White Red + Blue + White Red + Green + White Red + Green + Blue + White...
- Page 6 www.event-lighting.com.au DMX Chart 4 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 9 channels Mode Channel Value Function Note 000-255 Master DIMMER 0% ~ 100% 000-255 Red: 0% ~ 100% 000-255...
-
Page 7: Technical Specifications
Materials: Metal & Flame retardant ABS Finishing: Matte black IP rating: IP20 Net Weight: 2.3 kg Overall Size: 288 x 270 x 113 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
