PRO PAR

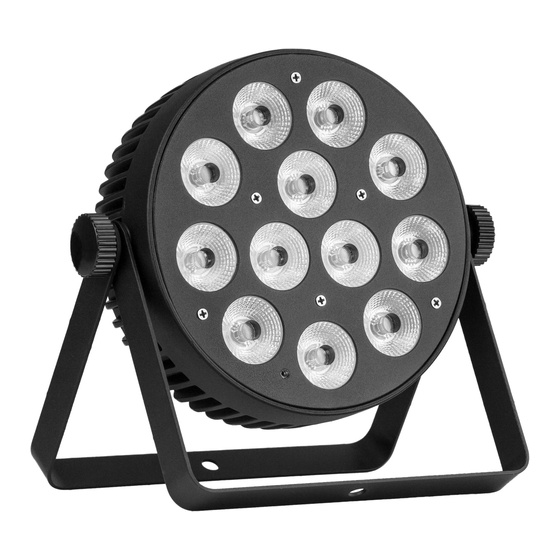

Model No. PAR12X8L
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting PRO PAR PAR12X8L
Summary of Contents for Event Lighting PRO PAR PAR12X8L

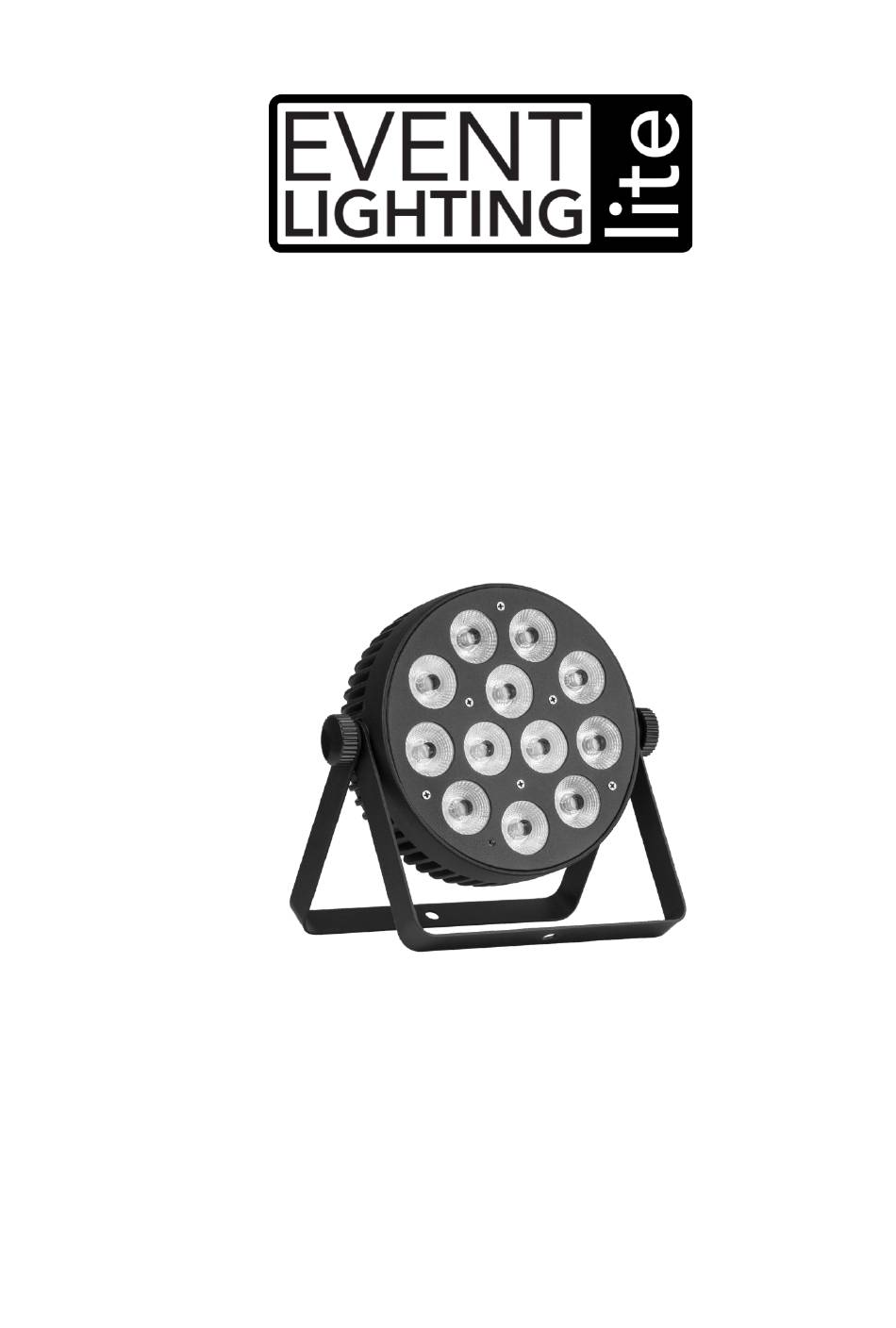

- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
- Page 2 www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
- Page 3 www.event-lighting.com.au Lux Chart CONTROL BOARD OPERATION Menu Map -> Select DMX address -> Select DMX channel mode (CH-1: 4ch / CH-2: 9ch) -> Set program speed -> Select built-in program -> Select sound active mode Select static colour mode -> (See static colour mode chart below) ->...
- Page 4 www.event-lighting.com.au -> Set blue colour intensity -> Set white colour intensity Set dimmer speed -> (nod0: fastest / nod4: slowest) -> Toggle LED display on / off -> Long press “Enter” button to show current temperature -> Show current software version ->...
- Page 5 www.event-lighting.com.au 9 channels Mode Channel Value Function Note 000-255 Master DIMMER 0% ~ 100% 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-012 Strobe OFF 013-255 Strobe (slow-fast) 000-009 No Function 010-019...
- Page 6 Materials: Die-cast aluminium − Finishing: Matte black − IP rating: IP20 − Net Weight: 1.85kg − Overall Size: 212 x 220 x 62 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
