1

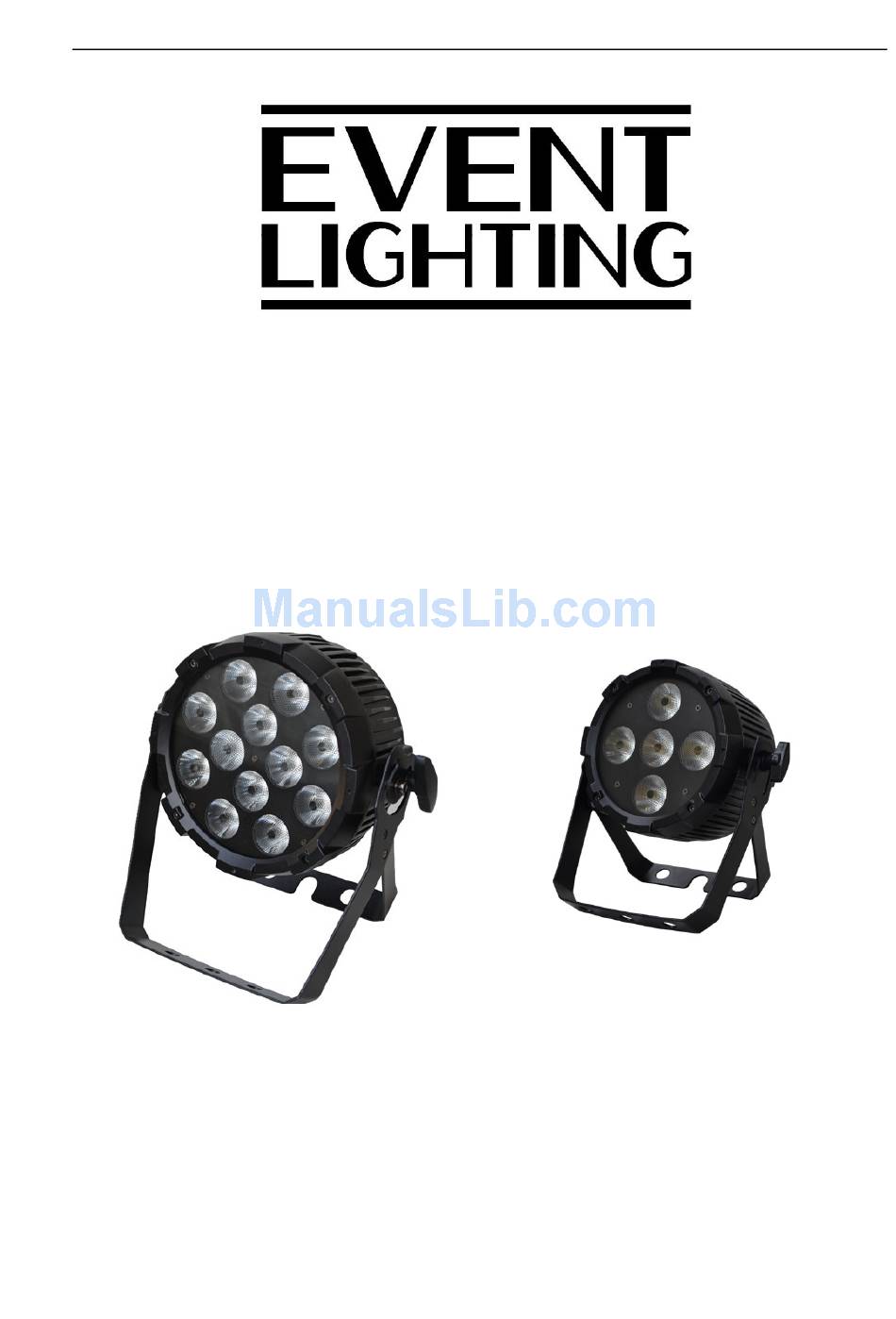

Propar
Model No. PARRGBW12x8, PARRGBWAU12x12
PARRGBW5x8, PARRGBWAU5x12
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PARRGBW12x8
Summary of Contents for Event Lighting PARRGBW12x8
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Power Input & Power Linking Product Installation Fuse replacement Diagrams Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Dimmer Speed Setting Sound Mode Setting Static Colors Manual Color Mode Automatic Mode Master/slave Operation DMX Values Technical Specifications Warranty... -
Page 3: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
Lux Chart Dimensions... -
Page 5: Control Board Operation
CONTROL BOARD OPERATION Display Function DMX Addr To set DMX address To set DMX channel modes: DMX Chan RGBW Models - CH10, CH06, CH04 RGBWAU Models - Ch12, CH08, CH06 Dimmer C To set dimmer speeds: <01>, <02>, <03>, <04> Sound To set sound active mode and the sensitivity (Sen000 ~ Sen100) To set static colors: Static Color... -
Page 6: Setting Static Colors
Setting Static Colors Entered "Static C" mode, you can select the desired solid color via the UP or DOWN buttons and confirm by Enter Mode: RGBW Models RGBWAU Models Value: Function: Value: Function: CL 01 Green CL 02 Green Blue CL 03 Blue White... -
Page 7: Automatic Mode
Automatic Mode This fixture has a built-in automatic program. Entered "Auto Pro" mode, use <UP> and <DOWN> to select the built-in programs "Pr 01 ~ Pr 05" then press the "Enter" to confirm. Use <UP> and <DOWN> to select the operating speed of the program(Value:S000 ~ S100, Freeze, Slow ~ Fast), press "Enter"... - Page 8 10/12 Channels Mode: RGBW RGBWAU VALUE FUNCTION 000-255 Red 0% ~ 100% 000-255 Green 0% ~ 100% 000-255 Blue 0% ~ 100% 000-255 White 0% ~ 100% 000-255 Amber 0% ~ 100% 000-255 UV 0% ~ 100% 000-255 Master DIMMER 0% ~ 100% 000-009 Strobe OFF 010-255...
-
Page 9: Warranty
Smooth electronic dimming with a 16-bit 4 Dimmer curve Die-cast Aluminum Housing Tempered glass front cover lens Smart Cooling system without fan Variable Speed Strobe Effect (1 – 30 Hz) WARRANTY Please refer to your local dealer or please contact Event Lighting.
