PRO PAR

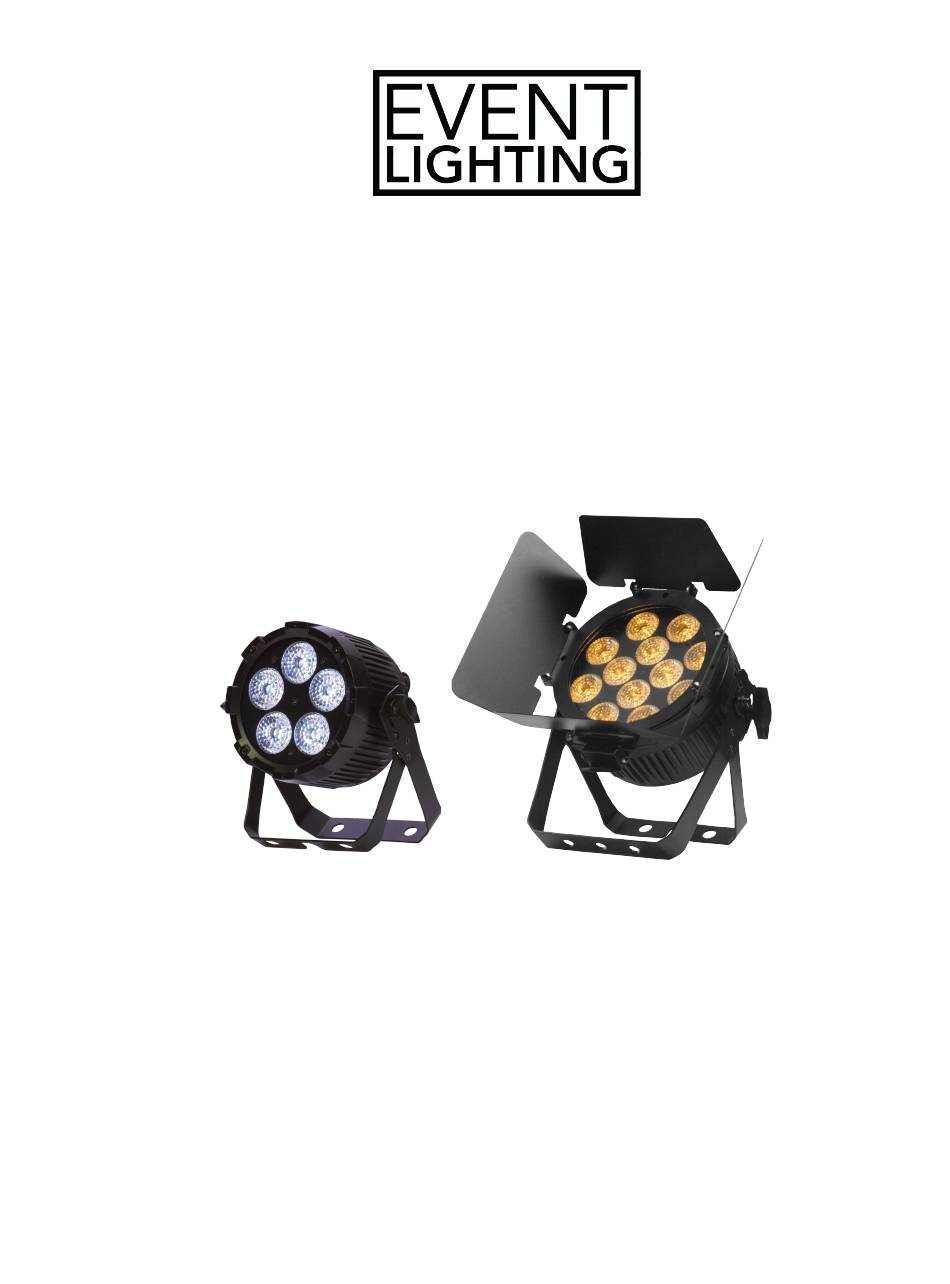

Model No. PAR12x12, PAR5x12
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 2.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PAR12x12
Summary of Contents for Event Lighting PAR12x12
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Diagrams Control Board Operation DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 4 Lux Chart PAR5X12 PAR12X12 Dimensions PAR5...
-
Page 5: Control Board Operation
www.event-lighting.com.au PAR12 CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> Set DMX address DMX Cha <02> <03> <06> <08> <12> Select DMX channel mode Dimmer <01> <02> <03> <04> <05> Select dimmer curve Sound <Sen000> - <Sen100> Select sound active mode and the sensitivity level from <Sen000>... - Page 6 www.event-lighting.com.au DMX Mode After select the "DMX Cha" and press “Enter”, use “Up” and “Down” button to select the desired DMX mode, press “Enter" to save new setting Dimmer Curve After select the "Dimmer" and press “Enter”, use “Up” and “Down” button to select the desired dimmer curves Sound Active Mode Entered “sound”...
- Page 7 www.event-lighting.com.au RGBW Red + Green + Blue + White RBWA Red + Blue + White + Amber RGWA Red + Green + White + Amber EGBWA Red + Green + Blue + White + Amber Red + UV Green + UV Amber + UV Red + Amber + UV …...
-
Page 8: Dmx Chart
www.event-lighting.com.au Master/Slave Operation Set the master fixture to one of the stand-alone operating modes: automatic, sound, static color or manual color modes. Set the slaves, entered "Mas/Sla" mode, set to “S”, press “Enter” to confirm. DMX Chart 2 channels Mode Channel Value Function... - Page 9 www.event-lighting.com.au 12 channels Mode RGBW Value Function Channel 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 RGBW Model : White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% for CH1, 2, 3, 4, 5, 6 &...
-
Page 10: Technical Specifications
DMX, auto run, sound active, master/slave, manual colour control, static colour control Beam Angle 30° 2940Hz Refresh Rate DMX Channel mode 2, 3, 6, 8,12 Power Input Neutrik® Powercon Power Output Neutrik® Powercon WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
