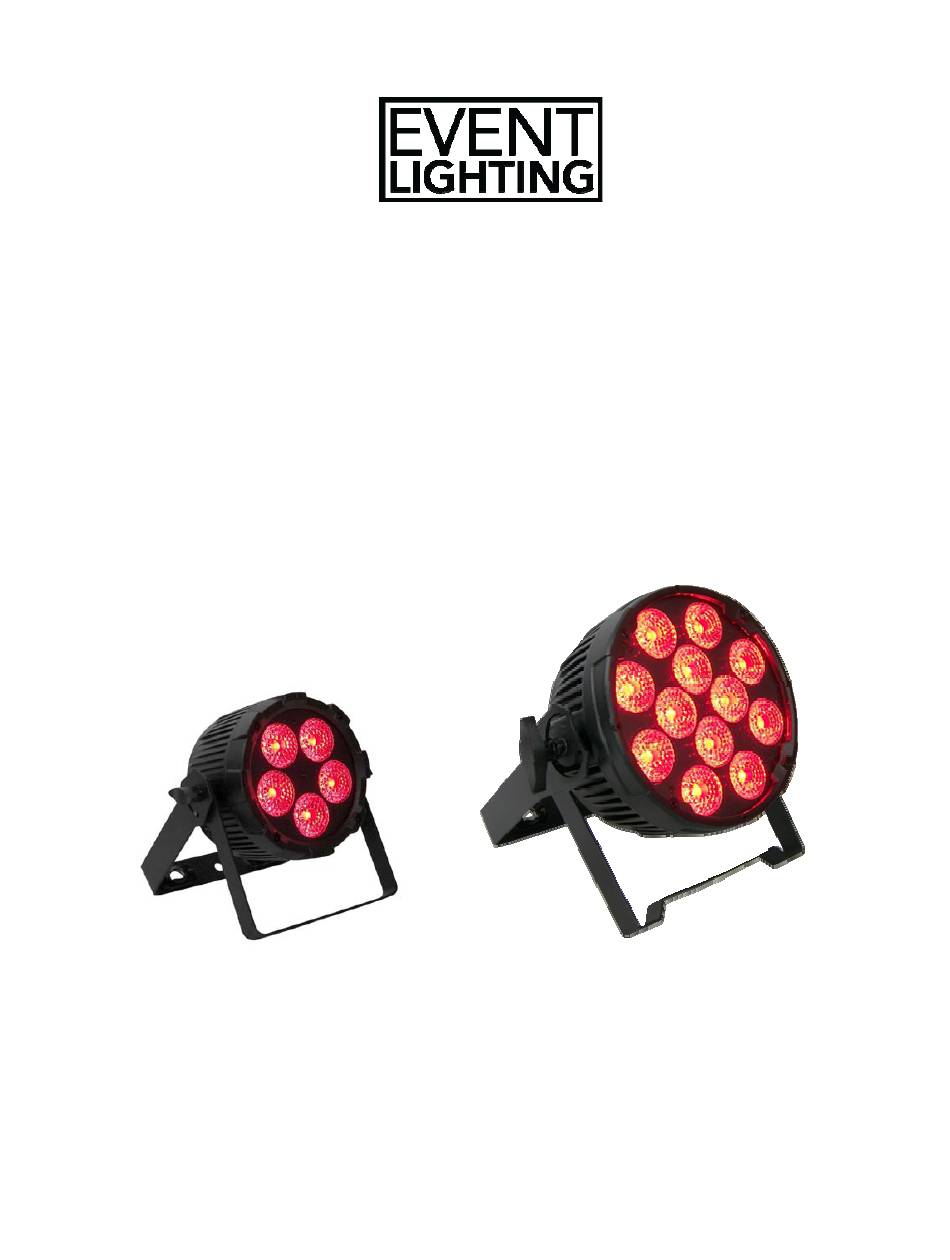

LED Pro Par with RGBWA+UV LEDs
PAR5H, PAR12H
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.eventec.com.au
Ver 2.1 (02.05.2025)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR12H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PAR12H

Summary of Contents for Event Lighting PAR12H

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Table Of Contents

    www. eventec.com.au CONTENTS Safety Instructions..................2 Product Installation ..................2 Diagrams......................3 Control Board Operation ................5 DMX chart...................... 9 Technical specifications................13 Warranty......................14...

  • Page 3: Safety Instructions

    www. eventec.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 4: Lux Chart

    Lux Chart PAR12H PAR5H...
  • Page 5 www.event-lighting.com.au Dimensions...

  • Page 6: Control Board Operation

    www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> Set DMX address DMX Cha <02> <03> <06> <08> <12> Select DMX channel mode Dimmer <01> <02> <03> <04> <05> Select dimmer curve Sound <Sen000> - <Sen100> Select sound active mode and the sensitivity level from <Sen000>...
  • Page 7 www.event-lighting.com.au Entered “sound” mode, use “Up” and “Down” button to select the sensitivity Sen000-Sen100, press “Enter” to save new setting Static Colour Mode Entered "Static C" mode, you can select the desired solid color via the “UP” or “DOWN” buttons, press “Enter" to save new setting Value: Function:...
  • Page 8 www.event-lighting.com.au RGBW Red + Green + Blue + White RBWA Red + Blue + White + Amber RGWA Red + Green + White + Amber EGBWA Red + Green + Blue + White + Amber Red + UV Green + UV Amber + UV Red + Amber + UV …...
  • Page 9 www.event-lighting.com.au On each slave unit, setup the DMX address to the fixture position in the string. For example, if this unit is the 2nd unit in the string including the master, then set the DMX address to 2. If this the last unit of 20, then the DMX address should be set to 20.

  • Page 10: Dmx Chart

    www.event-lighting.com.au Master/Slave Operation Set the master fixture to one of the stand-alone operating modes: automatic, sound, static color or manual color modes. Set the slaves, entered "Mas/Sla" mode, set to “S”, press “Enter” to confirm. DMX Chart 1 channels Mode Channel Value Function...
  • Page 11 www.event-lighting.com.au 8 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% 000-009 No function 010-019...
  • Page 12 www.event-lighting.com.au 12 channels Mode RGBW Value Function Channel 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 RGBW Model : White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% for CH1, 2, 3, 4, 5, 6 &...
  • Page 13 www.event-lighting.com.au 058-106 16 bits Non-linear dimmer 2 107-155 16 bits Non-linear dimmer 3 156-204 16 bits Non-linear dimmer 4 205-255 8 bits Linear dimmer 5...

  • Page 14: Technical Specifications

    000-255 Max Intensity 000-009 No Function 010-019 Sound Active 020-255 Strobe Slow-fast TECHNICAL SPECIFICATIONS Model PAR5H PAR12H Dimensions and Weight Overall size LxWxH (mm) 207x227x120 263x293x98 Weight (kg) Power Power Supply 100~240V AC, 50/60 Hz Power Consumption (w) Fuse T 1 A, 250 V...

  • Page 15: Warranty

    www.event-lighting.com.au WARRANTY Please refer to your local dealer or please contact Eventec Website: www.eventec.com.au...
