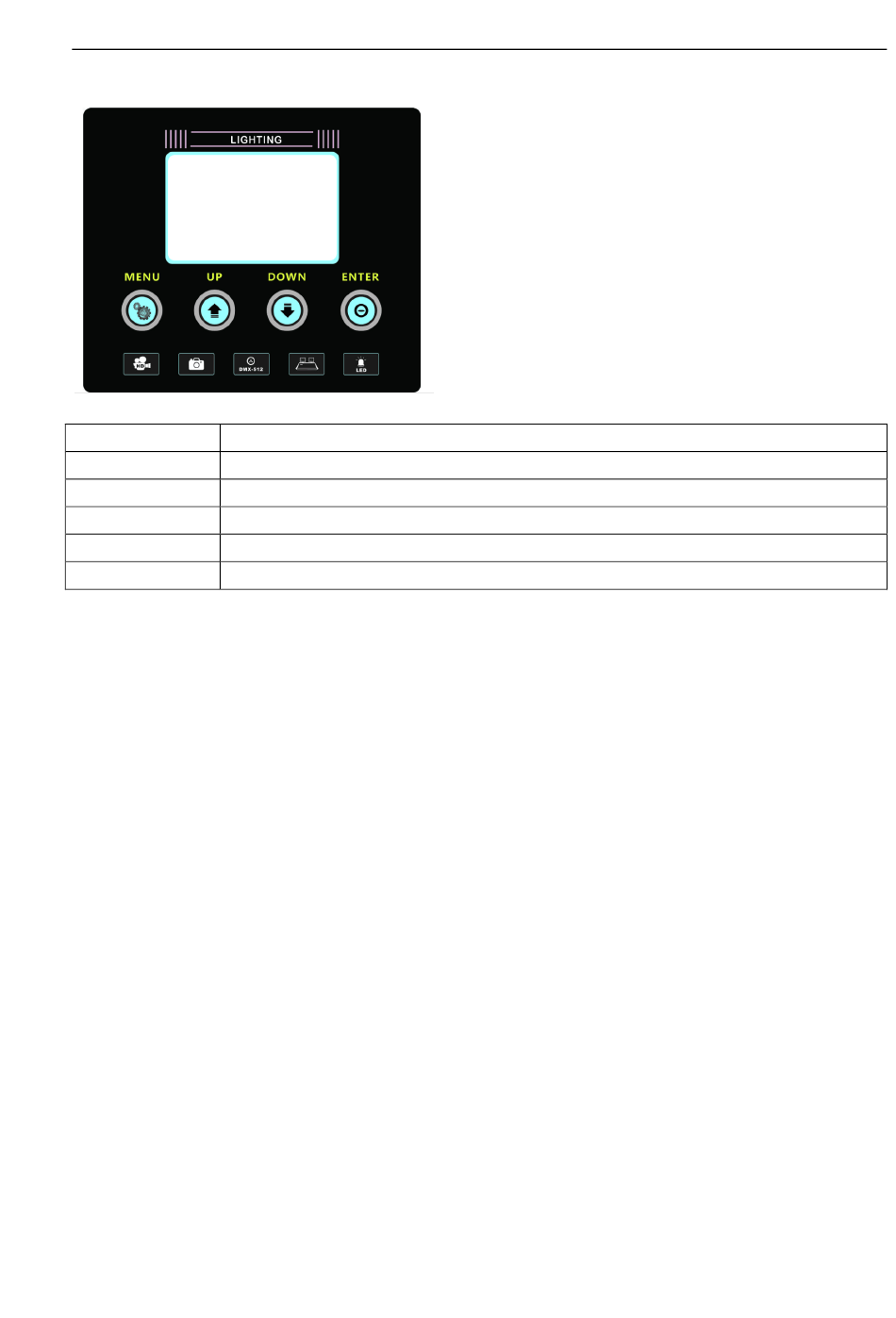

CONTROL BOARD OPERATION

Press the Menu until one of the following had been displayed:
Display Function
1.DMX Address To set DMX address
2.DMX Channel To set DMX channel modes: CH 01, CH 02, CH 03
3.Dimmer Curve To set dimmer speeds: 01, 02, 03, 04
4.Manual Control To set intensity of Dimmer, Dimmer Fine and Strobe
5.Reset To recover to manufactory default
Use "Up" and "Down" button to select your desired operation, press "Enter" to set all function
Set DMX address
After selecting the "DMX Address" and press "Enter", then use "Up" and "Down" to set the desired DMX address,
press "Enter" again to confirm.
Set DMX modes
After selecting the "DMX Channel" and press "Enter", then use "Up" and "Down" to set the desired DMX mode,
press "Enter" again to confirm.
Set Dimmer curve
After selecting the "Dimmer Curve" and press "Enter", then use "Up" and "Down" to set the desired dimmer curve,
press "Enter" again to confirm.
Set Manual Control
Set up intensity of Dimmer, Dimmer Fine and Strobe rate through the control panel. Use "Enter" to save your set for
each step. Use "Up" and "Down" to set strobe speed from Sp 000 to Sp 100, ("0" is freeze, "001 – 100" is slow to fast),
then press "Enter" to confirm.
Factory Reset
To recover factory default, select the "Reset" and press "Enter", press "Enter" again to confirm to recover factory default
