Model No. PARRGBW12x8, PAR12x8A
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

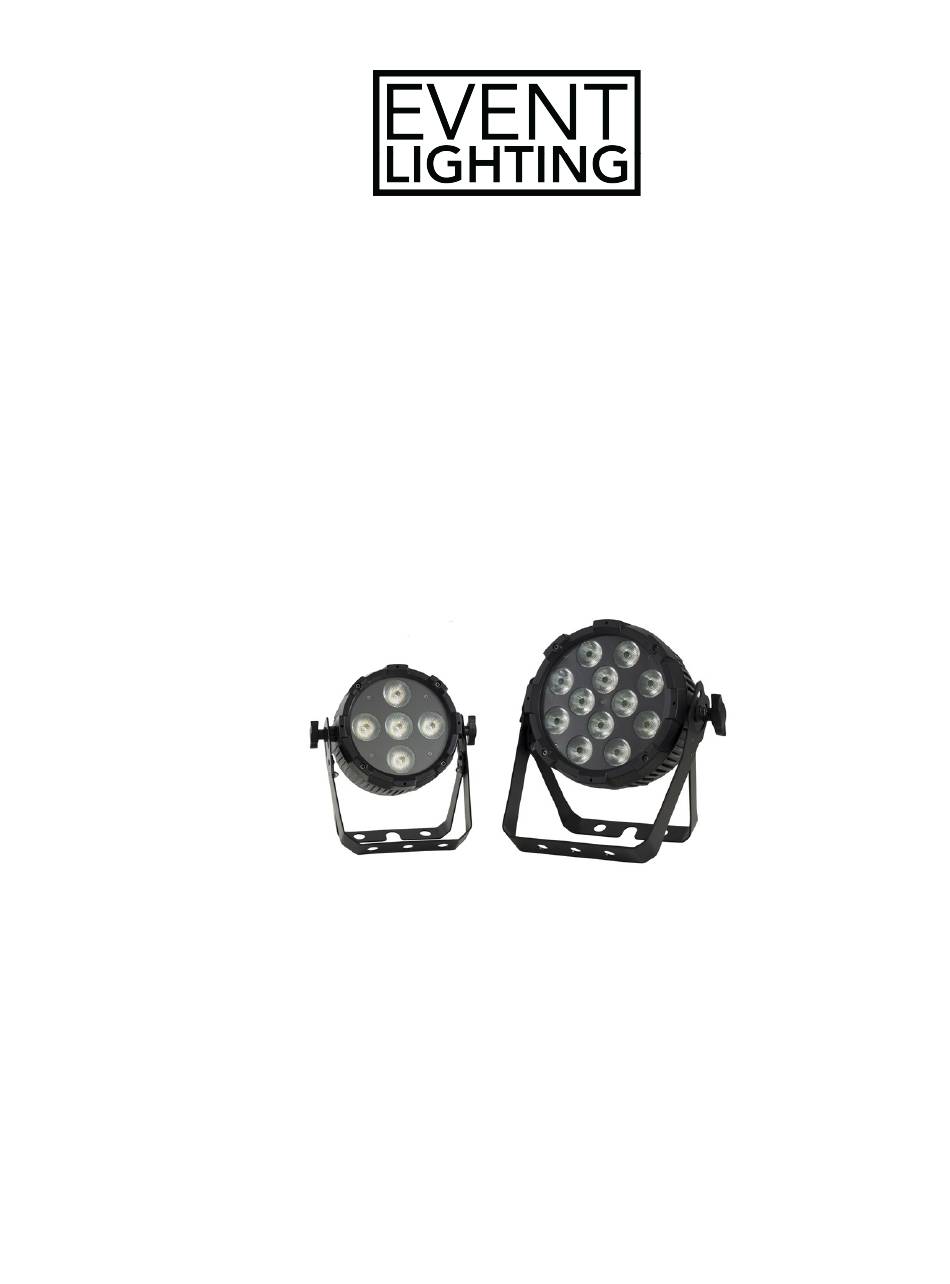

PRO PAR
PARRGBW5x8, PAR5x8A
USER MANUAL
www.event-lighting.com.au
Ver 2.3
Advertisement
Table of Contents
Related Manuals for Event Lighting PAR12x8A
Summary of Contents for Event Lighting PAR12x8A
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. -
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Diagrams Control Board Operation DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 4 Lux Chart PARRGBW5X8 PAR5X8A PARRGBW12X8 PAR12X8A...
- Page 5 www.event-lighting.com.au Dimensions PAR5 PAR12...
-
Page 6: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> Set DMX address DMX Cha <02> <03> <04> <06> <10> Select DMX channel mode Dimmer <01> <02> <03> <04> <05> Select dimmer curve Sound <Sen000> - <Sen100> Select sound active mode and the sensitivity level from <Sen000>... - Page 7 www.event-lighting.com.au 8W RGBW LED 8W RGBA LED Value: Function: Value: Function: Green Green Blue Blue White Amber Green + Blue Green + Blue Red + Blue Red + Blue Red + Green Red + Green Red + Green + Blue Red + Green + Blue Red + White Red + Amber...
-
Page 8: Dmx Chart
www.event-lighting.com.au Set multi fixture chases Pr 07 Before starting, go to each fixture and reset the menu to fixture defaults. On the master unit, setup the DMX address to the total number of fixtures in the string. For example, you may have a total of 20 par cans including the master, so the DMX address should be set to “20”. - Page 9 www.event-lighting.com.au 6 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 RGBW Model : White: 0% ~ 100% RGBA Model : Amber: 0% ~ 100% 000-255 Master Dimmer 0% ~ 100% 000-009 No function 010-019...
-
Page 10: Warranty
22°/ optional 55° Beam Angle Refresh Rate 2940Hz DMX Channel mode 2, 3, 4, 6, 10 3-pin XLR / optional 5-pin XLR DMX Connectors WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
