Mounting Dimensions - Eliwell ICPlus 915 Manual

ACCURACY:
PT100:
RESOLUTION:
ACCURACY:
TcJ:
RESOLUTION:
ACCURACY:
Tck:
RESOLUTION:
The device is designed for panel mounting. Drill a 29x71 mm hole and insert the instrument; secure it with the special brackets provided.
Do not install the instrument in damp and/or dirty places; in fact, it is suitable for use in places with ordinary or normal levels of pollution.
Keep the area around the instrument cooling slots adequately ventilated.
70 mm
PT100/Tcj-Tck MODELs
0.5% for whole scale + 1 digit
0.2% from -150 to 300°C
0.1°C (0.1°F) from -199.9°C up to 199.9°C; 1°C (1°F) beyond
0.4% for whole scale + 1 digit
0.1°C (0.1°F) from -199.9°C up to 199.9°C; 1°C (1°F) beyond
0.5% for whole scale + 1 digit
0.3% from -40 to 800°C
0.1°C (0,1°F) from -199.9°C up to 199.9°C; 1°C (1°F) beyond

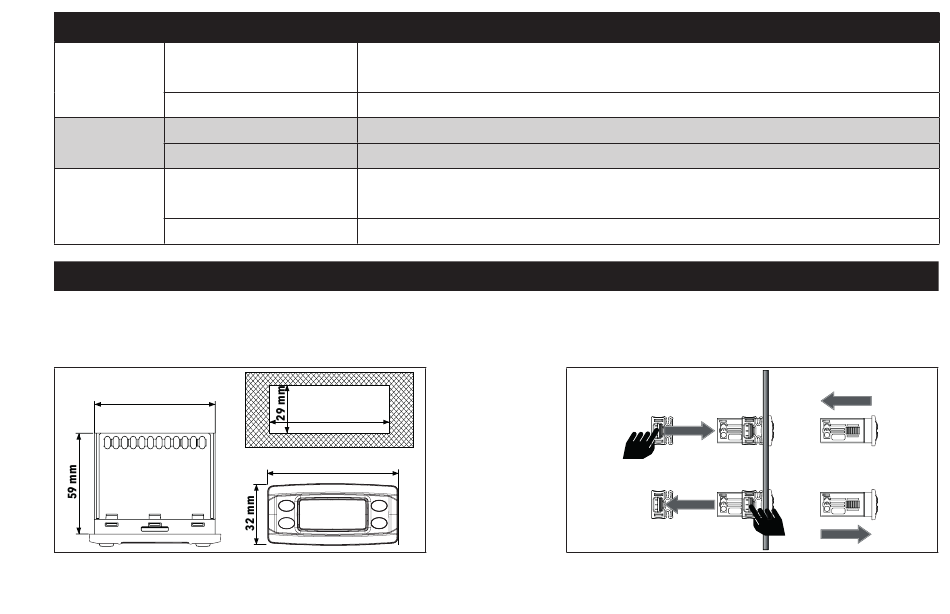

MOUNTING - DIMENSIONS
71 mm
74 mm
