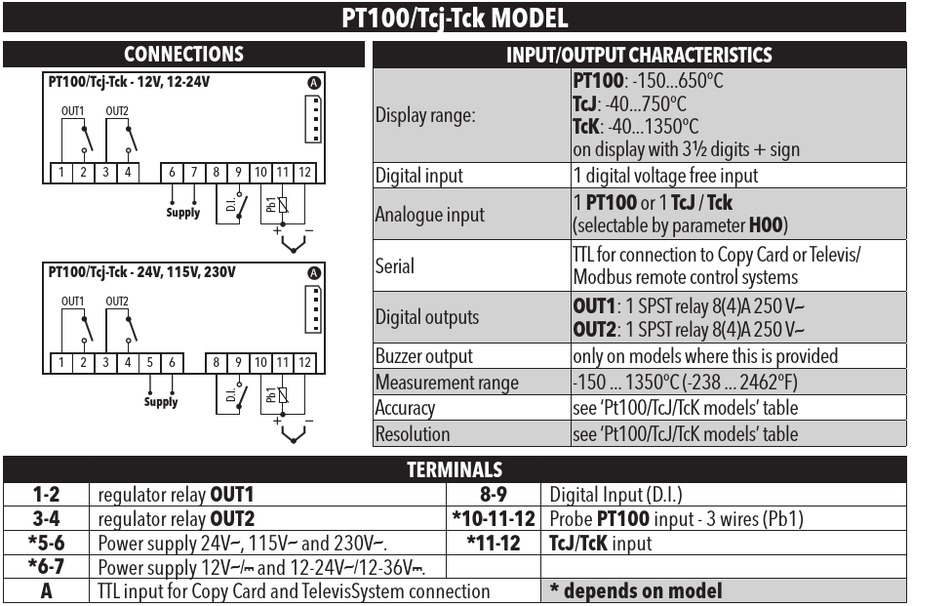

CONNECTIONS
PT100/Tcj-Tck - 12V, 12-24V
OUT1 OUT2
1 2 3 4 6 7
Supply
PT100/Tcj-Tck - 24V, 115V, 230V
OUT1 OUT2
1 2 3 4 5 6
Supply
1-2 regulator relay OUT1
3-4 regulator relay OUT2
*5-6
Power supply 24V
*6-7
Power supply 12V
A TTL input for Copy Card and TelevisSystem connection
PT100/Tcj-Tck MODEL
Display range:
Digital input
8 9 10 11 12
Analogue input
+ −
Serial
Digital outputs
Buzzer output
8 9 10 11 12
Measurement range
Accuracy
+ −
Resolution
, 115V and 230V .
a a a
and 12-24V 12-36V
a/c a/
INPUT/OUTPUT CHARACTERISTICS
PT100: -150...650°C
TcJ: -40...750°C
TcK: -40...1350°C
on display with 3½ digits + sign
1 digital voltage free input
1 PT100 or 1 TcJ / Tck
(selectable by parameter H00)
TTL for connection to Copy Card or Televis/
Modbus remote control systems
OUT1: 1 SPST relay 8(4)A 250 V
OUT2: 1 SPST relay 8(4)A 250 V
only on models where this is provided
-150 ... 1350°C (-238 ... 2462°F)
see 'Pt100/TcJ/TcK models' table
see 'Pt100/TcJ/TcK models' table
TERMINALS
8-9 Digital Input (D.I.)
*10-11-12 Probe PT100 input - 3 wires (Pb1)
*11-12 TcJ/TcK input
.
c
* depends on model
