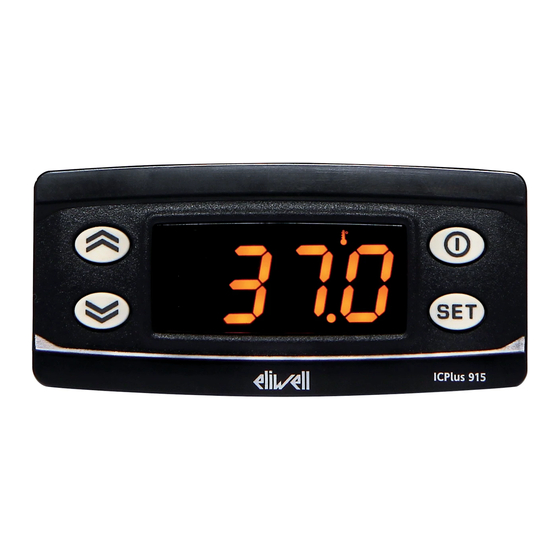

Eliwell ICPlus 915 Manual

Electronic controller with 2 intervention points
Hide thumbs

Advertisement

Table of Contents

ICPlus 915
EN
Electronic controller with 2 intervention points

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICPlus 915 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eliwell ICPlus 915

Summary of Contents for Eliwell ICPlus 915

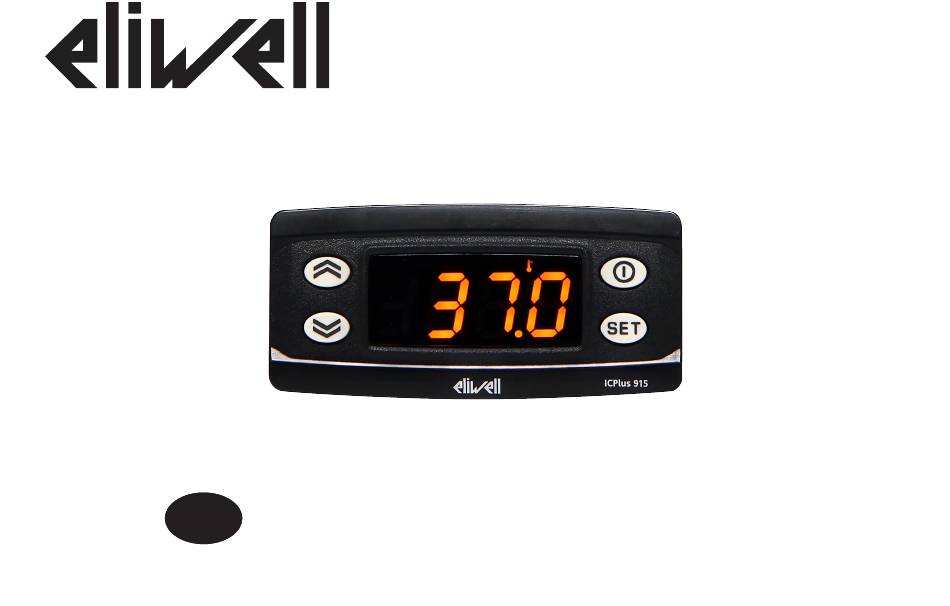

  • Page 1 ICPlus 915 Electronic controller with 2 intervention points...

  • Page 2: User Interface

    USER INTERFACE ICPlus 915 KEYS STAND-BY (ESC) Press and release Press and release Scroll menu items Returns to the previous menu level Increases values Confirms parameter value Press for at least 5 sec Press for at least 5 sec Function can be configured by the user (H31)
  • Page 3 ICONs Decimal Point Temperature Permanently on: decimal point Permanently on: displays a temperature Flashing: Soft Start active Flashing: reduced set active, displays a temperature or no unit of Off: otherwise measure selected Pressure Humidity Permanently on: displays a pressure Permanently on: displays a humidity Flashing: reduced set active and displays Flashing:...
  • Page 4 NTC/PTC MODEL CONNECTIONS INPUT/OUTPUT CHARACTERISTICS NTC: -50...110°C (-58...230°F) NTC/PTC - 12V, 12-24V Display range: PTC: -50...140°C (-58...302°F) OUT1 OUT2 on display with 3½ digits + sign Digital input 1 digital voltage free input 1 NTC or 1 PTC 9 10 11 12 Analogue input (selectable by parameter H00) TTL for connection to Copy Card or Televis/...
  • Page 5 V/I MODEL CONNECTIONS INPUT/OUTPUT CHARACTERISTICS -199...199 (ndt = n) V/I - 12V, 12-24V -199.9...199.9 (ndt = y) Display range: OUT1 OUT2 -1999...1999 (ndt = int) on display with 3½ digits + sign Digital input 1 digital voltage free input 9 10 11 12 1 V/I (0-1V, 0-5V, 0-10V, 0...20mA, 4...20mA) −...
  • Page 6 PT100/Tcj-Tck MODEL CONNECTIONS INPUT/OUTPUT CHARACTERISTICS PT100: -150...650°C PT100/Tcj-Tck - 12V, 12-24V TcJ: -40...750°C Display range: OUT1 OUT2 TcK: -40...1350°C on display with 3½ digits + sign Digital input 1 digital voltage free input 9 10 11 12 1 PT100 or 1 TcJ / Tck Analogue input Supply (selectable by parameter H00)

  • Page 7: Mounting Dimensions

    PT100/Tcj-Tck MODELs 0.5% for whole scale + 1 digit ACCURACY: PT100: 0.2% from -150 to 300°C RESOLUTION: 0.1°C (0.1°F) from -199.9°C up to 199.9°C; 1°C (1°F) beyond ACCURACY: 0.4% for whole scale + 1 digit TcJ: RESOLUTION: 0.1°C (0.1°F) from -199.9°C up to 199.9°C; 1°C (1°F) beyond 0.5% for whole scale + 1 digit ACCURACY: Tck:...
  • Page 8 EWPA-EWHS PROBE CONFIGURATION EWHS 284 2 wires EWHS 304/314 3 wires 9 10 11 12 9 10 11 12 Probe Probe RH/T blue GND (only EWHS314) brown EWHS 314 4 wires (V-I model) EWPA 007/030 2 wires / Transducer ICPlus 1 ICPlus 2 9 10 11 12 9 10 11 12...

  • Page 9: Accessing And Using The Menus

    ACCESSING AND USING THE MENUs The resources are organized into 2 menus which are accessed as follows: • ‘Machine Status’ menu: press and release the key. • ‘Programming’ menu: hold down the key for 5 seconds. Either do not press any keys for 15 seconds (timeout) or press the key once, to confirm the last value displayed and return to the previous screen.

  • Page 10: Machine Status Menu

    MACHINE STATUS MENU Access the Machine Status menu by pressing and releasing the key. If no alarms are active, the ‘SEt’ label appears. Use the keys to scroll through all the folders in the menu: - AL: alarms folder (only visible if an alarm is active); - SP1: Setpoint 1 setting folder;...
  • Page 11 DIAGNOSTICS Alarms are always indicated by the alarm icon , the buzzer and the relay (if setting). To switch off the buzzer, press and release any key; the corresponding icon will continue to flash. N.B.: If alarm exclusion times have been set (see ‘AL’ folder in the parameters table) the alarm will not be signalled. ALARMs Label Fault...

  • Page 12: Max/Min Temperature Alarms

    MAX/MIN TEMPERATURE ALARMS Temperature as a value Temperature as an relative to Setpoint (Att=1) Absolute value (Att=0) LAL + AFd LAL - AFd SEt + LAL SEt + HAL SEt + LAL + AFd SEt + HAL – AFd Minimum alarm Temp.
  • Page 13 ON-OFF CONTROL DIAGRAM ON-OFF regulation diagram with independent setpoint (H01=0, HC1=H and HC2=C). HC1=H HC2=C The two outputs regulate as though they were completely independent of each other. H01=in SP1-dF1 SP2+dF2 ON-OFF regulation diagram with dependent setpoint (H01=1, HC1=H and HC2=C). HC1=H HC2=C Setpoint 2 (SP2) regulates relative to SP1.
  • Page 14 TELEVIS SYSTEM The Televis remote control systems can be connected using the TTL serial port (TTL-RS485 BusAdapter 130 or 150 interface ICPlus module must be used). To configure the instrument to do this, you need to access the Add folder and use the dEA and FAA parameters. RS485 IMPORTANT! CHECK THE AVAILABILITY OF MODELS COMPATIBLE WITH REMOTE SUPERVISION SYSTEMS.
  • Page 15 TECHNICAL DATA (EN 60730-2-9) Classification: operation (not safety) device for incorporation Mounting: panel mounting with 71x29 mm (+0.2/-0.1 mm) drilling template Type of action: Pollution class: Material class: IIIa Overvoltage category: Rated impulse voltage: 2500V Temperature: Operating: –5 … +55 °C - Storage: –30 … +85 °C •...

  • Page 16: Further Information

    • climate range A • measurement class 1 in the range from -25°C to 15°C (*) (* exclusively using Eliwell probes) NOTE: The technical specifications given in this document regarding measurement (range, accuracy, resolution, etc.) refer to the instrument and not to any accessories provided, such as the probes. This means, for example, that the error...
  • Page 17 USING THE COPY CARD The Copy Card is connected to the serial port (TTL) and allows rapid programming of the instrument parameters. Access Installer parameters by entering ‘PA2’ , scroll through the folders using until folder FPr appears. Select it using , scroll through the parameters using , then select the function using...

  • Page 18: Parameters Table

    PARAMETERS TABLE PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL NTC/PTC °C/°F Temperature control setpoint SP1. The SEtpoint is visible from the PT100-Tc LS1...HS1 °C/°F machine status menu and not from the programming menu. NTC/PTC °C/°F Temperature control setpoint SP2. The SEtpoint is visible from the PT100-Tc LS2...HS2 °C/°F...
  • Page 19 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL NTC/PTC -150.0...HA1 -50.0 °C/°F Minimum temperature alarm on OUT1. PT100-Tc -328...HA1 -199.9 °C/°F User/Inst (See ‘Max/Min temperature alarms’) -150...HA1 -150 Switch-on delay. The indicated time must elapse between the request for 0...250 Inst activation of the controller 1 relay and switch-on.
  • Page 20 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL OUT2 activation differential. The utility stops on reaching the SP2 value NTC/PTC 0.0...30.0 °C/°F (as indicated by control probe) and restarts at a temperature value equal to PT100-Tc 0.0...30.0 °C/°F User/Inst T=SP2+dF2 relative to HC2. 0...30 NTC/PTC 140.0...
  • Page 21 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL Controller 2 switch-off time in the event of faulty probe. if OF2=1 and On2=0, the controller remains off; 0...250 Inst if OF2=1 and On2>0, the controller operates in Duty Cycle mode. SOFT START CONTROLLER (folder ‘SFt’) NTC/PTC 0.0...25.0 °C/°F...
  • Page 22 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL Alarm exclusion time until the Setpoint is reached. 0 = disabled. If SAO >0, an alarm will be generated if the Setpoint is not 0...10 hours Inst reached after the time SAO (in hours). tAO Delay preceding indication of temperature alarm.
  • Page 23 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL NTC/PTC -30.0...30.0 °C/°F Calibration 1. Positive or negative temperature value added to the value read by PT100-Tc -30.0...30.0 °C/°F User/Inst Pb1, according to the setting of parameter CAI. -30...30 Intervention of the offset on display, temperature control or both. 0 = only the temperature shown is modified;...
  • Page 24 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL Press the ESC, UP and DOWN keys (if configured for a second function) for the time H02 to activate the function itself. 0...15 secs Inst N.B.: The AUX function has a fixed activation time of 1 second. NTC/PTC Lower input current/voltage limit.
  • Page 25 PAR. DESCRIPTION MODEL RANGE VALUE M.U. LEVEL Configuration of Digital Output1 (OUT1). 0 = disabled; 1 = on-off (controller 1) 0...6 Inst 2 = on-off (controller 2); 3 = Alarm; 4 = Cyclic; 5 = Aux/Light; 6 = Stand-by. H22 Configuration of Digital Output2 (OUT2). Same as H21. 0...6 Inst Configuration of UP key.

  • Page 26: Electrical Connections

    ELECTRICAL CONNECTIONs Attention! Make sure the machine is switched off before working on the electrical connections. The instrument is equipped with screw or disconnectable terminal blocks for connecting electrical cables with a max. diameter of 2.5 mm (one wire per terminal for power connections): for the terminal ratings, see the label on the instrument. Do not exceed the maximum permissible current;...

  • Page 27: Liability And Residual Risks

    • installation/use on panels not complying with current standards and regulations. DISCLAIMER This document is the exclusive property of ELIWELL CONTROLS SRL and may not be reproduced or circulated unless expressly authorised by ELIWELL CONTROLS SRL itself. Every care has been taken in preparing this document; nevertheless ELIWELL CONTROLS SRL cannot accept liability for any damage resulting from its use.
  • Page 28 Technical helpline: +39 0437 986 300 E-mail: techsuppeliwell@invensys.com Sales Telephone: +39 0437 986 100 (Italy) +39 0437 986 200 (other countries) cod. 9IS44317-1 • ICPlus 915 • EN • rel. 09/13 E-mail: saleseliwell@invensys.com © Eliwell Controls s.r.l. 2013 • All rights reserved.
