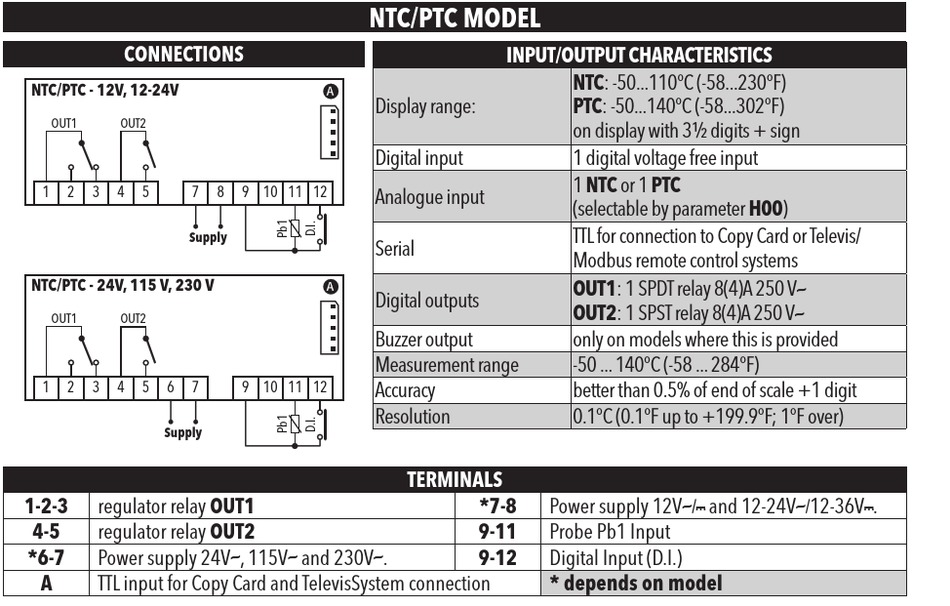

CONNECTIONS
NTC/PTC - 12V, 12-24V
OUT1 OUT2
1 2 3 4 5 7
Supply
NTC/PTC - 24V, 115 V, 230 V
OUT1 OUT2
1 2 3 4 5 6 7
Supply
1-2-3 regulator relay OUT1
4-5 regulator relay OUT2
*6-7
Power supply 24V
A TTL input for Copy Card and TelevisSystem connection
NTC/PTC MODEL
Display range:
Digital input
8 9 10 11 12
Analogue input
Serial
Digital outputs
Buzzer output
Measurement range
Accuracy
9 10 11 12
Resolution
, 115V and 230V .
a a a
INPUT/OUTPUT CHARACTERISTICS
NTC: -50...110°C (-58...230°F)
PTC: -50...140°C (-58...302°F)
on display with 3½ digits + sign
1 digital voltage free input
1 NTC or 1 PTC
(selectable by parameter H00)
TTL for connection to Copy Card or Televis/
Modbus remote control systems
OUT1: 1 SPDT relay 8(4)A 250 V
OUT2: 1 SPST relay 8(4)A 250 V
only on models where this is provided
-50 ... 140°C (-58 ... 284°F)
better than 0.5% of end of scale +1 digit
0.1°C (0.1°F up to +199.9°F; 1°F over)
TERMINALS
*7-8
Power supply 12V
9-11 Probe Pb1 Input
9-12 Digital Input (D.I.)
* depends on model
a
a
and 12-24V 12-36V
a/c a/
.
c
