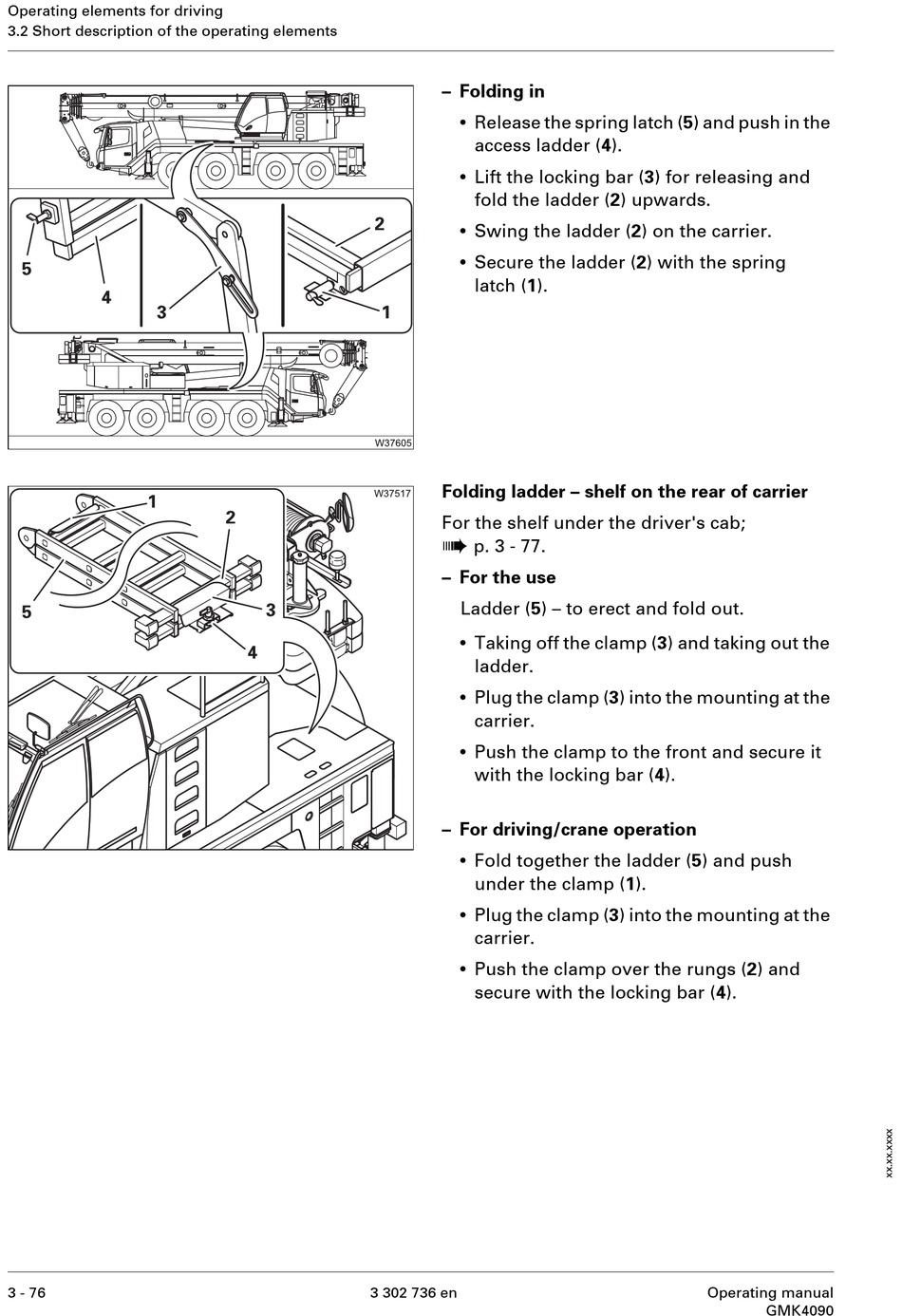

Operating elements for driving
3.2 Short description of the operating elements
3 - 76
– Folding in
•
Release the spring latch (5) and push in the
access ladder (4).
•
Lift the locking bar (3) for releasing and
fold the ladder (2) upwards.
•
Swing the ladder (2) on the carrier.
•
Secure the ladder (2) with the spring
latch (1).
Folding ladder – shelf on the rear of carrier
For the shelf under the driver's cab;
à
p. 3 - 77.
– For the use
Ladder (5) – to erect and fold out.
•
Taking off the clamp (3) and taking out the
ladder.
•
Plug the clamp (3) into the mounting at the
carrier.
•
Push the clamp to the front and secure it
with the locking bar (4).
– For driving/crane operation
•
Fold together the ladder (5) and push
under the clamp (1).
•
Plug the clamp (3) into the mounting at the
carrier.
•
Push the clamp over the rungs (2) and
secure with the locking bar (4).
