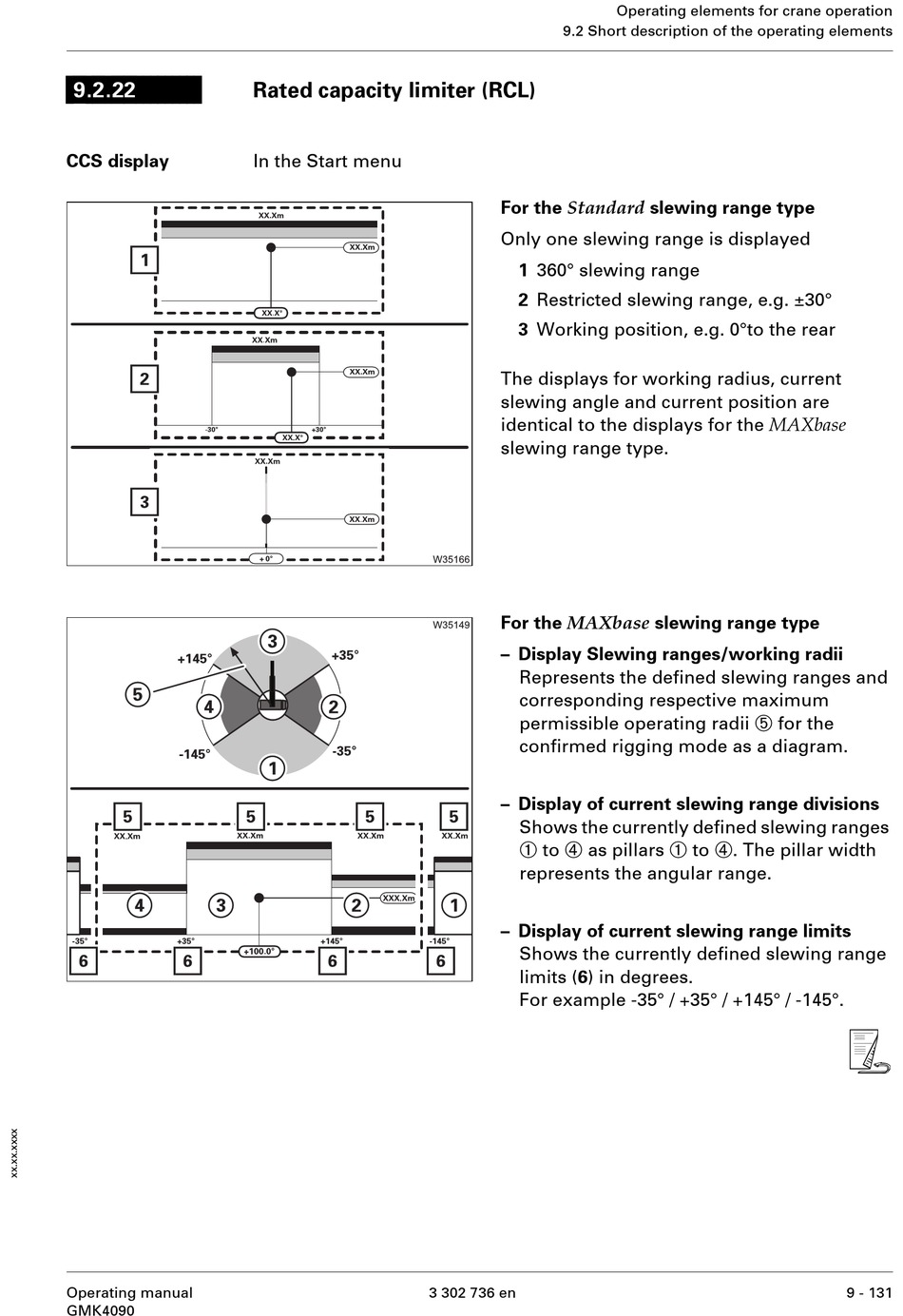

CCS display
Operating manual
GMK4090

Rated capacity limiter (RCL)

In the Start menu
9.2 Short description of the operating elements
For the Standard slewing range type
Only one slewing range is displayed
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Working position, e.g. 0°to the rear
The displays for working radius, current
slewing angle and current position are
identical to the displays for the MAXbase
slewing range type.
For the MAXbase slewing range type
– Display Slewing ranges/working radii
Represents the defined slewing ranges and
corresponding respective maximum
permissible operating radii
confirmed rigging mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing ranges
1 4
to as pillars
represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
