Manitowoc Grove GMK4090 Operating Manual page 154

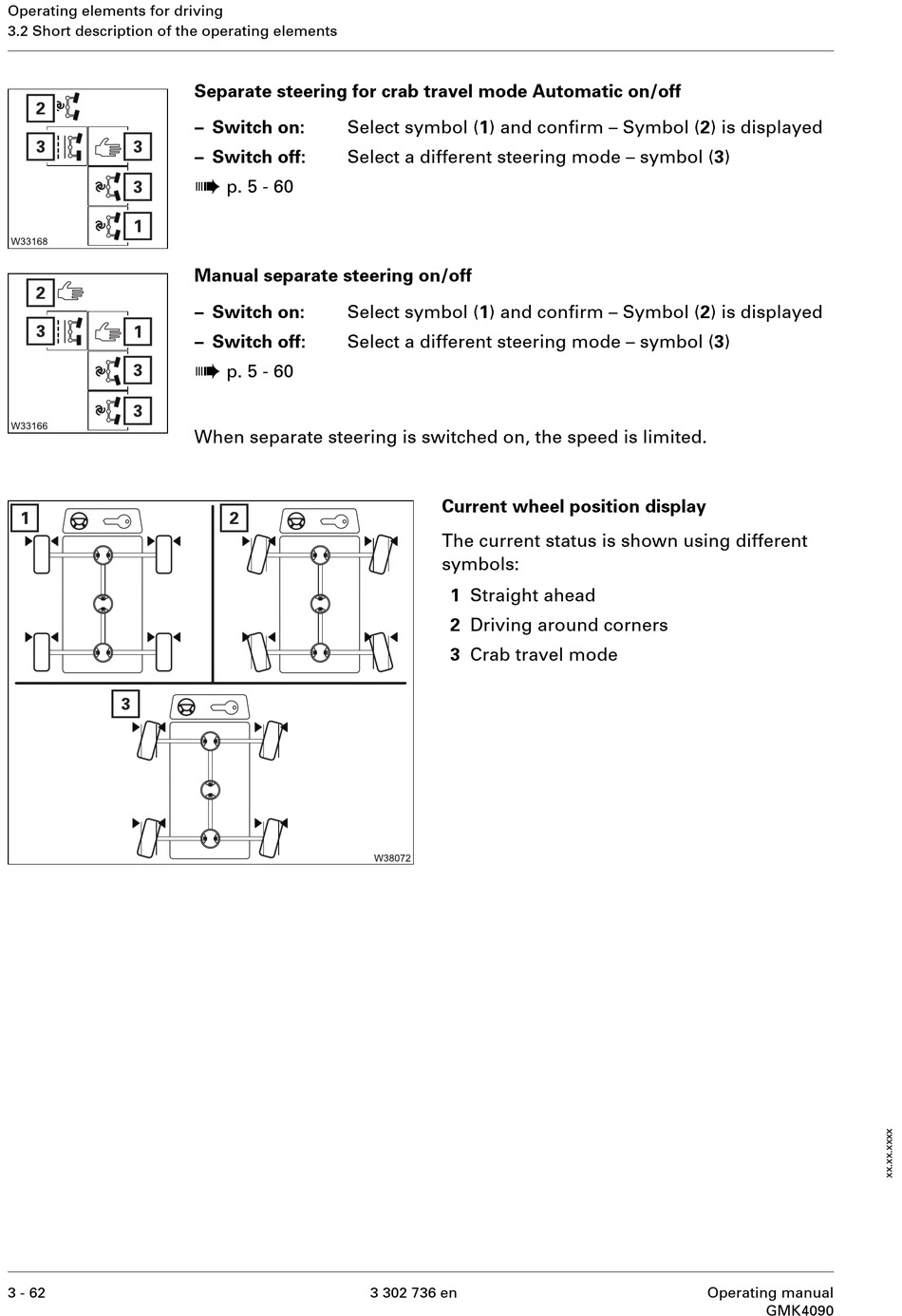

Operating elements for driving
3.2 Short description of the operating elements
3 - 62
Separate steering for crab travel mode Automatic on/off
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – symbol (3)
à
p. 5 - 60
Manual separate steering on/off
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – symbol (3)
à
p. 5 - 60
When separate steering is switched on, the speed is limited.
Current wheel position display
The current status is shown using different
symbols:
1 Straight ahead
2 Driving around corners
3 Crab travel mode
3 302 736 en Operating manual
GMK4090
