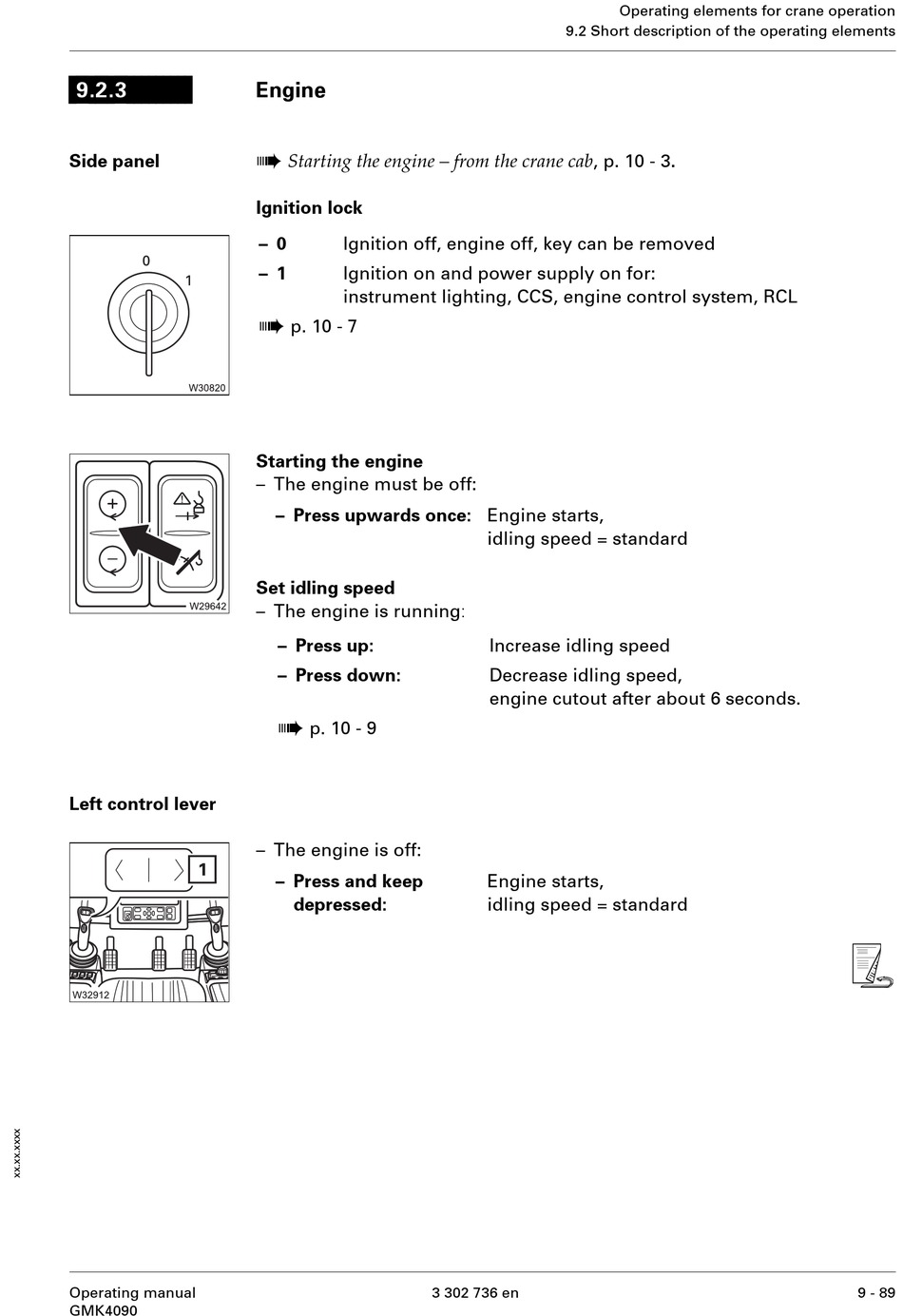

9.2.3
Side panel
Left control lever
Operating manual
GMK4090

Engine

à
Starting the engine – from the crane cab , p. 10 - 3.
Ignition lock
– 0 Ignition off, engine off, key can be removed
– 1 Ignition on and power supply on for:
instrument lighting, CCS, engine control system, RCL
à
p. 10 - 7
Starting the engine
– The engine must be off:
– Press upwards once: Engine starts,
Set idling speed
– The engine is running
– Press up:
– Press down:
à
p. 10 - 9
– The engine is off:
– Press and keep
depressed:
9.2 Short description of the operating elements
idling speed = standard
:
Increase idling speed
Decrease idling speed,
engine cutout after about 6 seconds.
Engine starts,
idling speed = standard
3 302 736 en
