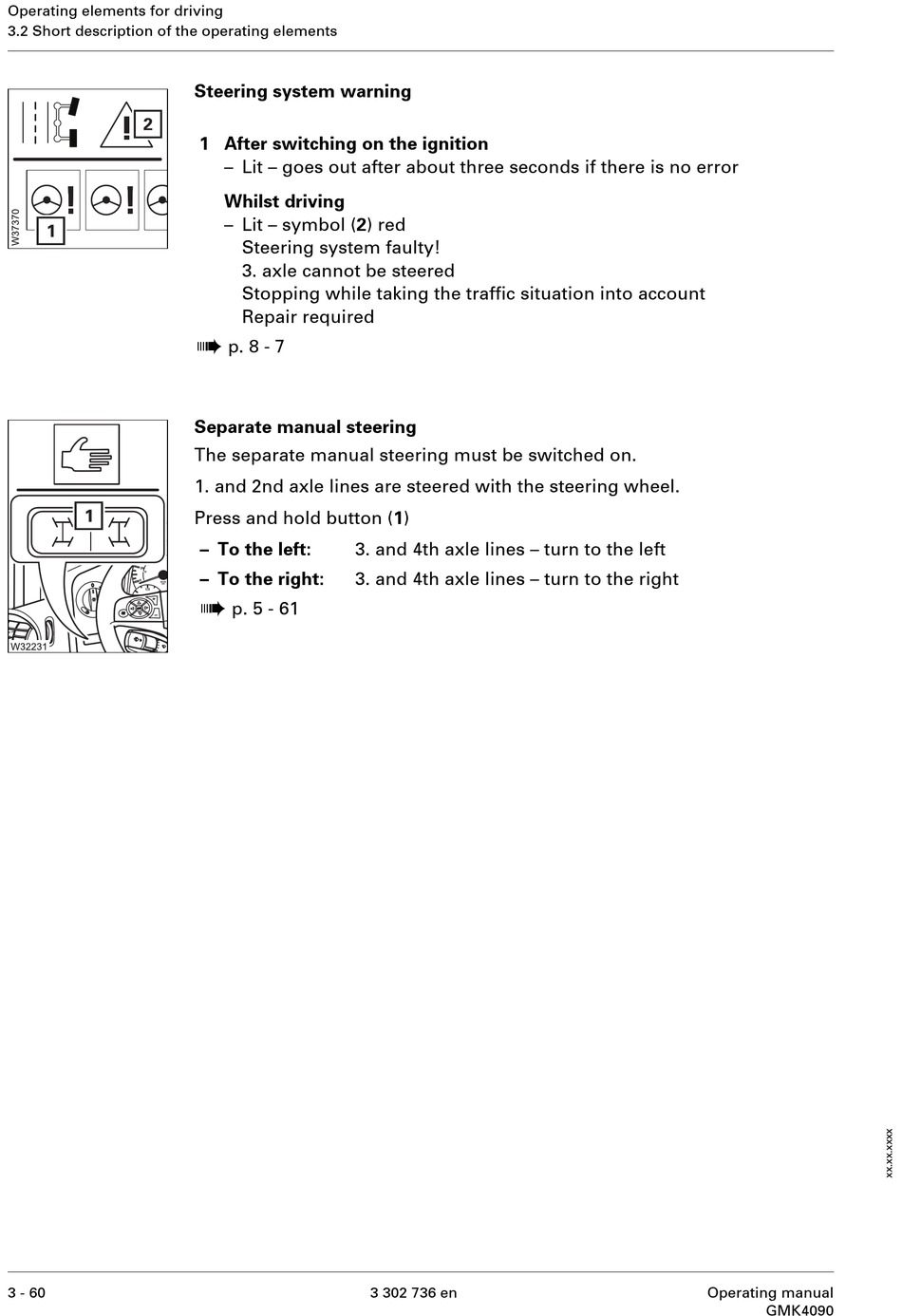

Operating elements for driving
3.2 Short description of the operating elements
3 - 60
Steering system warning
1 After switching on the ignition
– Lit – goes out after about three seconds if there is no error
Whilst driving
– Lit – symbol (2) red
Steering system faulty!
3. axle cannot be steered
Stopping while taking the traffic situation into account
Repair required
à
p. 8 - 7
Separate manual steering
The separate manual steering must be switched on.
1. and 2nd axle lines are steered with the steering wheel.
Press and hold button (1)
– To the left: 3. and 4th axle lines – turn to the left
– To the right: 3. and 4th axle lines – turn to the right
à
p. 5 - 61
3 302 736 en Operating manual
GMK4090
