14.5.3
Operating manual
GMK4090

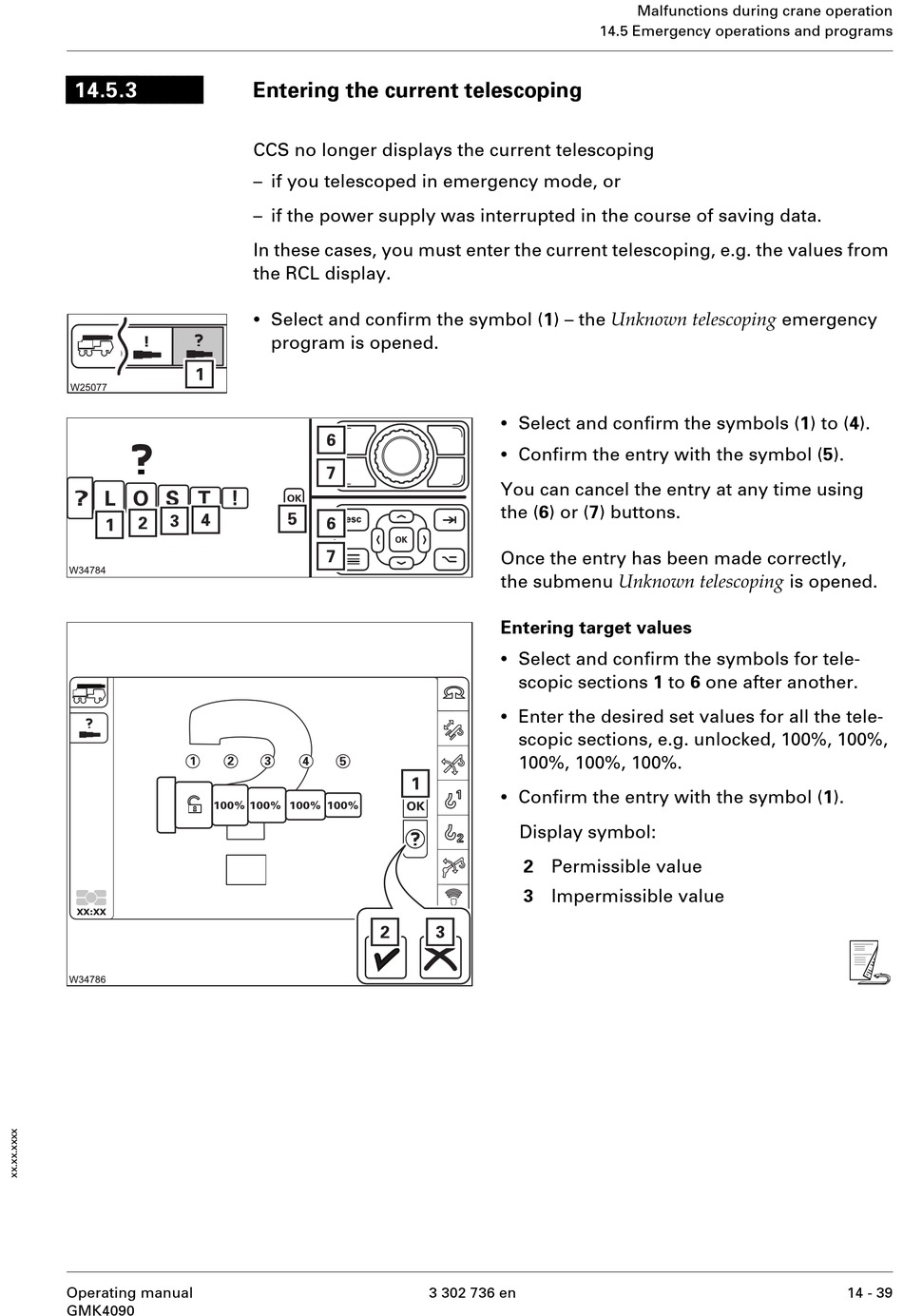

Entering the current telescoping

CCS no longer displays the current telescoping
– if you telescoped in emergency mode, or
– if the power supply was interrupted in the course of saving data.
In these cases, you must enter the current telescoping, e.g. the values from
the RCL display.
•
Select and confirm the symbol (1) – the Unknown telescoping emergency
program is opened.
14.5 Emergency operations and programs
•
Select and confirm the symbols (1) to (4).
•
Confirm the entry with the symbol (5).
You can cancel the entry at any time using
the (6) or (7) buttons.
Once the entry has been made correctly,
the submenu Unknown telescoping is opened.
Entering target values
•
Select and confirm the symbols for tele-
scopic sections 1 to 6 one after another.
•
Enter the desired set values for all the tele-
scopic sections, e.g. unlocked, 100%, 100%,
100%, 100%, 100%.
•
Confirm the entry with the symbol (1).
Display symbol:
2 Permissible value
3 Impermissible value
3 302 736 en
Malfunctions during crane operation
s
14 - 39
