Hardware Installation Manual
2.
Insert the DC plug (5) located at the end of the power cord (4) of the power adapter into
the device's power socket located on the rear panel.

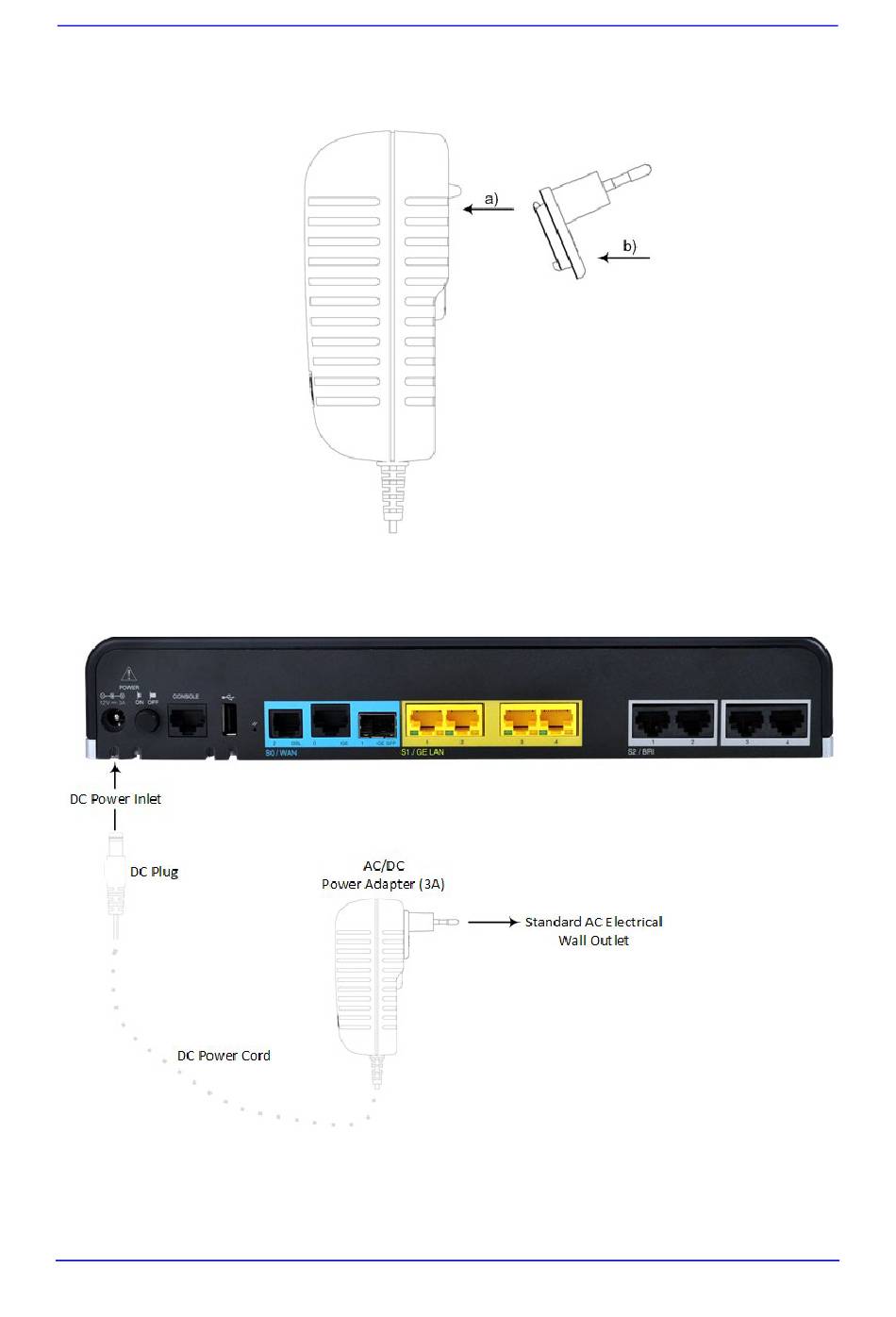

Figure 6-17: Cabling Power with 3A AC/DC Power Adapter
3.
Plug the power adapter directly into a standard electrical wall outlet.
Mediant i-Series
Figure 6-16: Inserting Plug into Power Adapter
45
6. Cabling the Device
Mediant 500Li
