6.7.1
3-Amp Power Supply Cabling
For 3-Amp power supply, the device is shipped with the AC/DC power adapter shown in the
figure below. The power adapter also supports interchangeable plugs to suite the electrical
wall outlet type requirement of the country in which the device is being installed.
Table 6-8: Power Adapter with Interchangeable Plugs
Item
1
2
3
4
5
To connect the device to the power supply using the 3-Amp power adapter:
1.
Insert the relevant AC plug into the housing power adapter:
a.
Insert the top part of the plug into the upper part of the housing slot (1).
b.
Press down on the bottom part of the plug until a "click" sound is heard, indicating
that the plug is securely inserted in the housing slot. To remove the plug, push
and slide down the OPEN plug release lever (3).
Hardware Installation Manual

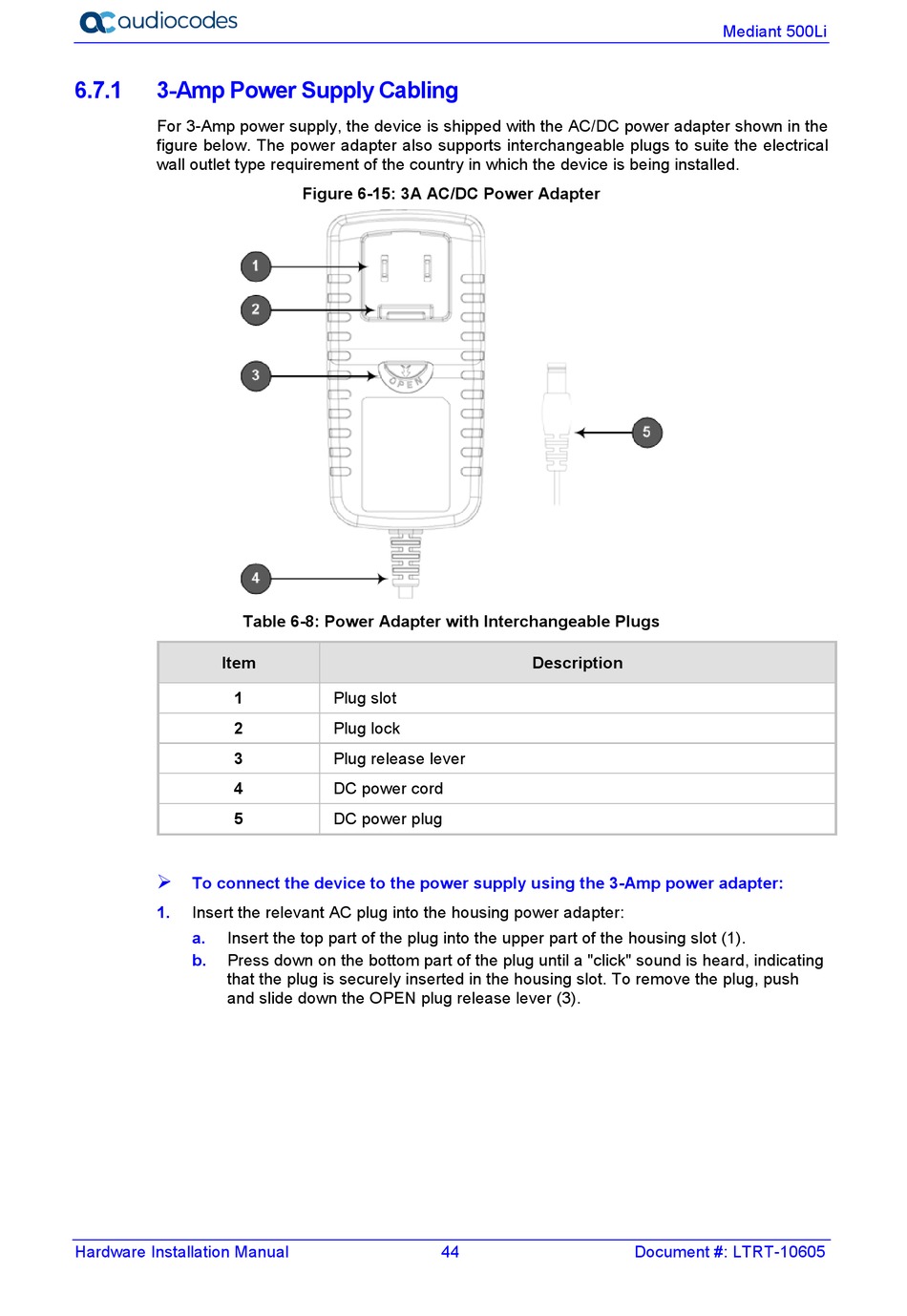

Figure 6-15: 3A AC/DC Power Adapter
Plug slot
Plug lock
Plug release lever
DC power cord
DC power plug
44
Description
Document #: LTRT-10605
Mediant 500Li
