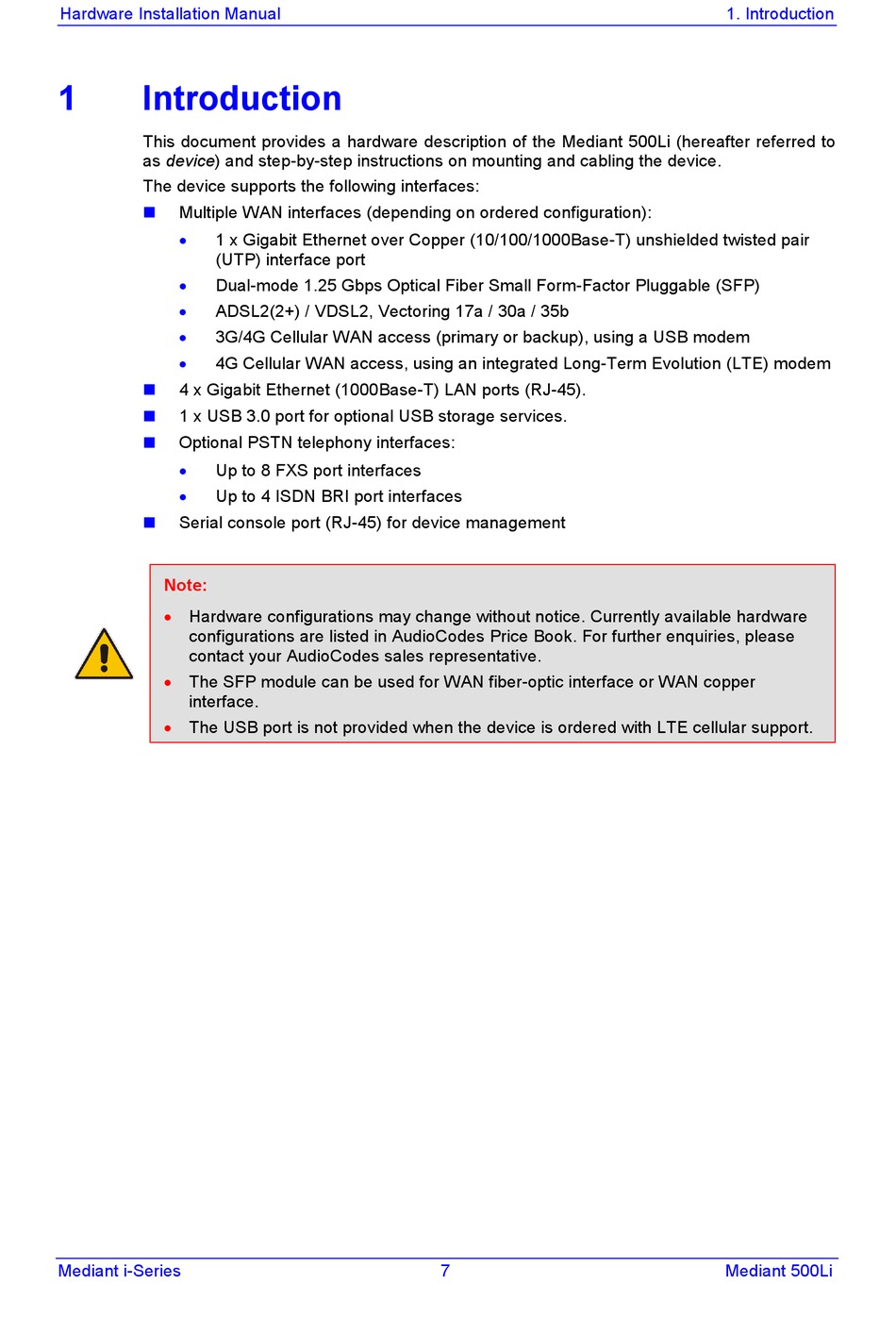

Introduction

This document provides a hardware description of the Mediant 500Li (hereafter referred to
as device) and step-by-step instructions on mounting and cabling the device.
The device supports the following interfaces:
Multiple WAN interfaces (depending on ordered configuration):

• 1 x Gigabit Ethernet over Copper (10/100/1000Base-T) unshielded twisted pair
(UTP) interface port
Dual-mode 1.25 Gbps Optical Fiber Small Form-Factor Pluggable (SFP)
•
• ADSL2(2+) / VDSL2, Vectoring 17a / 30a / 35b
3G/4G Cellular WAN access (primary or backup), using a USB modem
•
• 4G Cellular WAN access, using an integrated Long-Term Evolution (LTE) modem
4 x Gigabit Ethernet (1000Base-T) LAN ports (RJ-45).

1 x USB 3.0 port for optional USB storage services.

Optional PSTN telephony interfaces:

Up to 8 FXS port interfaces
•
• Up to 4 ISDN BRI port interfaces
Serial console port (RJ-45) for device management

Note:
• Hardware configurations may change without notice. Currently available hardware
configurations are listed in AudioCodes Price Book. For further enquiries, please
contact your AudioCodes sales representative.
• The SFP module can be used for WAN fiber-optic interface or WAN copper
interface.
The USB port is not provided when the device is ordered with LTE cellular support.
•
