Rear Panel Description

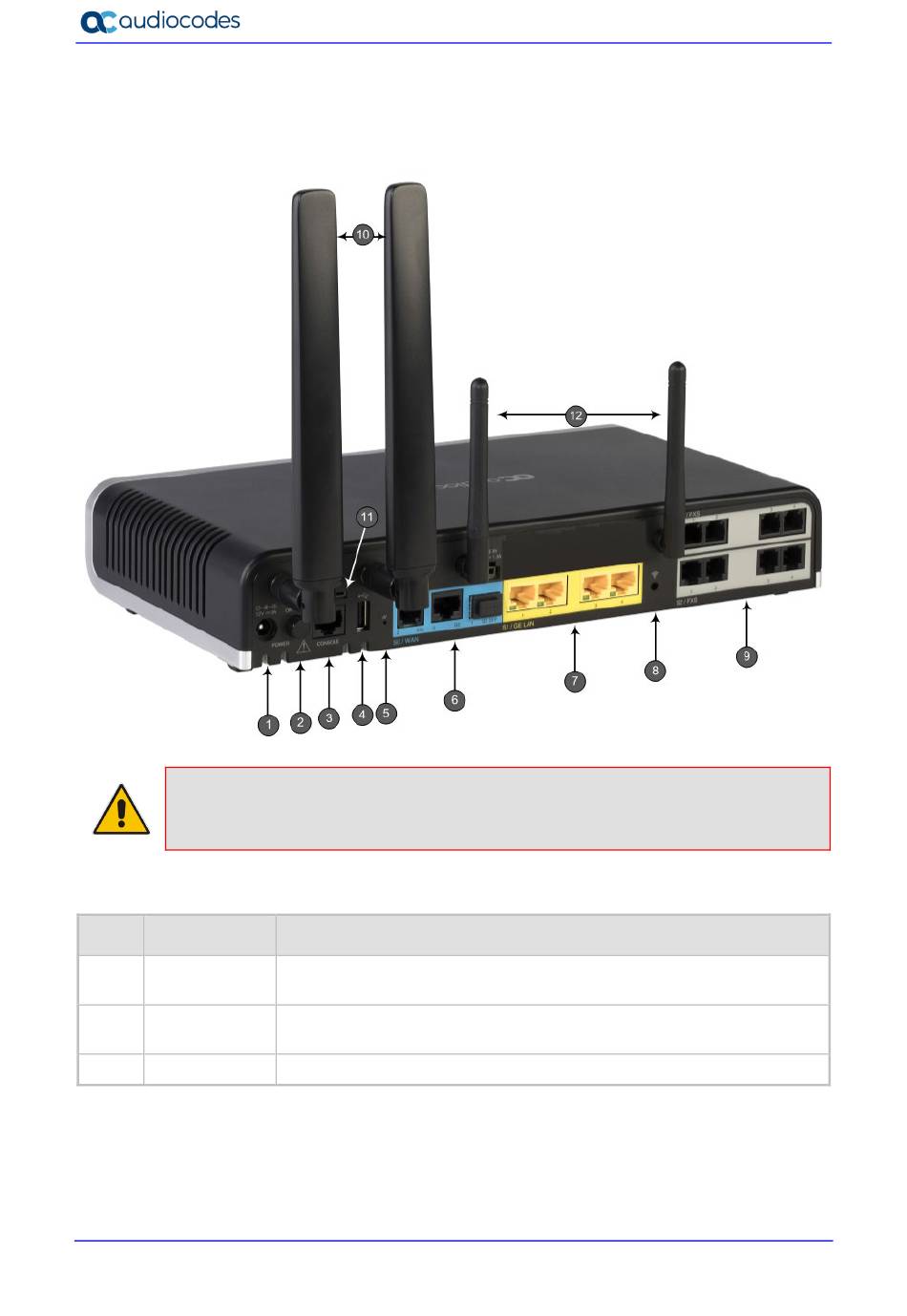

The device's rear panel is shown in the figure below and described in the subsequent table.
Note:
The figure above is used only as an example. The hardware configuration
depends on the ordered model.
Item #
Label
1
POWER
2
ON / OFF
3
CONSOLE
Hardware Installation Manual
Figure 3-2: Rear Panel
Table 3-10: Front Panel Description
DC power supply plug entry for connecting the device to the external
AC/DC power supply adapter.
Power button which powers on the device when pressed in and powers
off the device when pressed again (pressed out).
RJ-45 port for RS-232 serial communication with the device.
16
Description
Document #: LTRT-10605
Mediant 500Li
