4.2
Wall Mounting
You can mount the device on a wall using the keyholes on the bottom of the device.
To mount the device on a wall:
1.
Drill three holes in the wall where you want to mount the device, using the distances
between the holes as shown in the figure below:
Horizontal distance between the top two parallel holes: 89 mm (5.51 in.)
•
Vertical distance between the top two parallel holes and bottom hole: 204 mm
•
(8.03 in.)
•
Horizontal distance between a top hole and the bottom hole: 44.5 (1.75 in.)
Note:
When choosing the area on the wall to mount the device, make sure that sufficient
•
space is available for attaching cables on the rear panel.
Make sure that you drill the holes in the same orientation as shown in the above
•
figure (i.e., two parallel holes on the top and the single hole on the bottom).
•
Use the mounting template on the following page (print out) to mark the locations
for the mounting holes on the wall.
Hardware Installation Manual

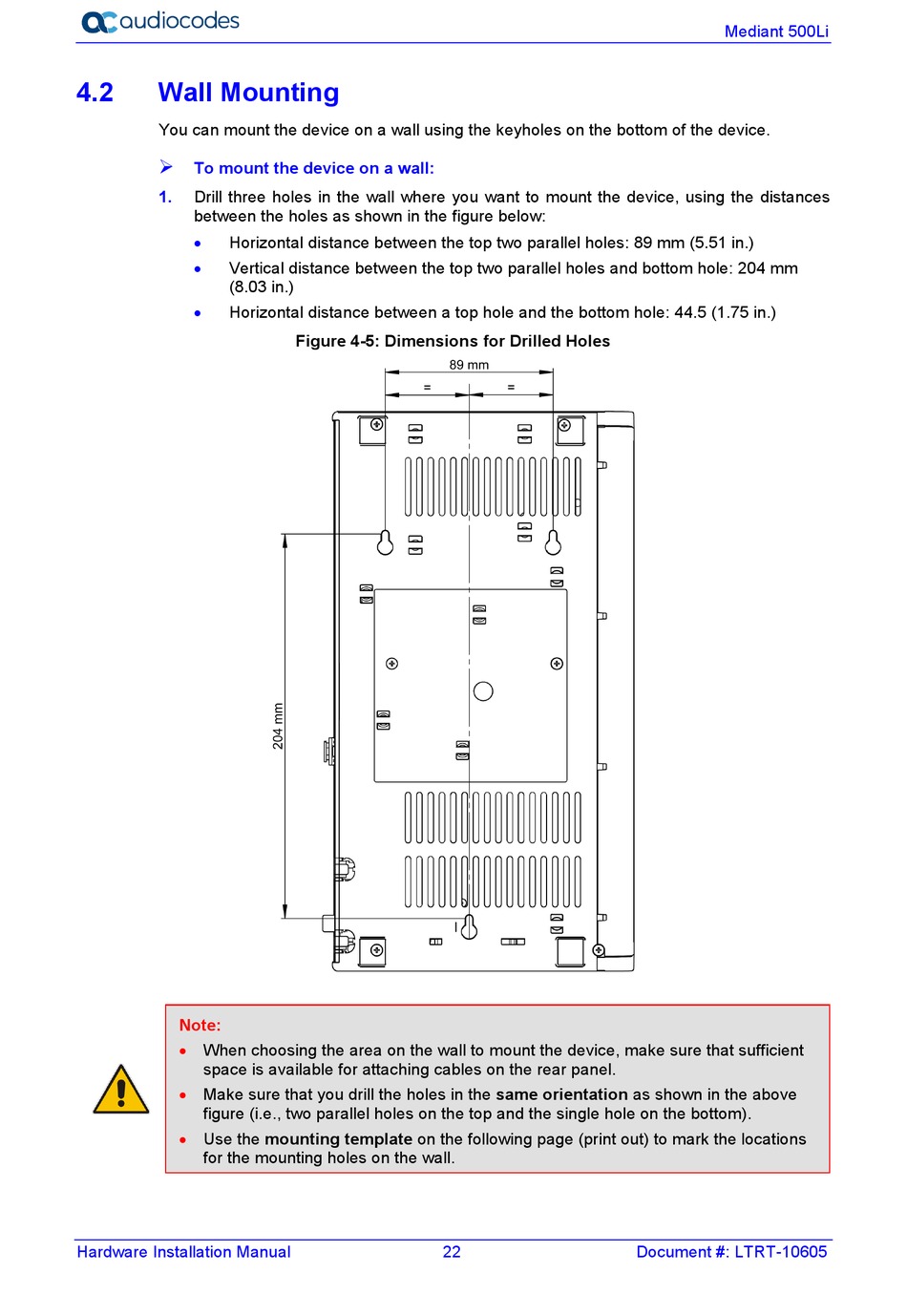

Figure 4-5: Dimensions for Drilled Holes
22
Mediant 500Li
Document #: LTRT-10605
