6.2

Connecting to LAN

The device's Gigabit Ethernet LAN ports (1000Base-T) can be connected to network
equipment and entities such as computers, switches, and IP phones. These ports support
half- and full-duplex modes, auto-negotiation, and straight or crossover cable detection.
Cable specification:
Cable: straight-through Cat 5e or Cat 6 cable

Connector: RJ-45

Connector Pinouts:

Pin
1
2
3
6
4
5
7
8

To connect the device to the LAN:
1.
Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the LAN port,
located on the rear panel and labeled GE LAN.
2. Connect the other end of the cable to a network device or entity.
Hardware Installation Manual

Table 6-4: RJ-45 Connector Pinouts for GE

Ethernet signal pair (1000Base-T)
Ethernet signal pair (1000Base-T)
Ethernet signal pair (1000Base-T)
Ethernet signal pair (1000Base-T)

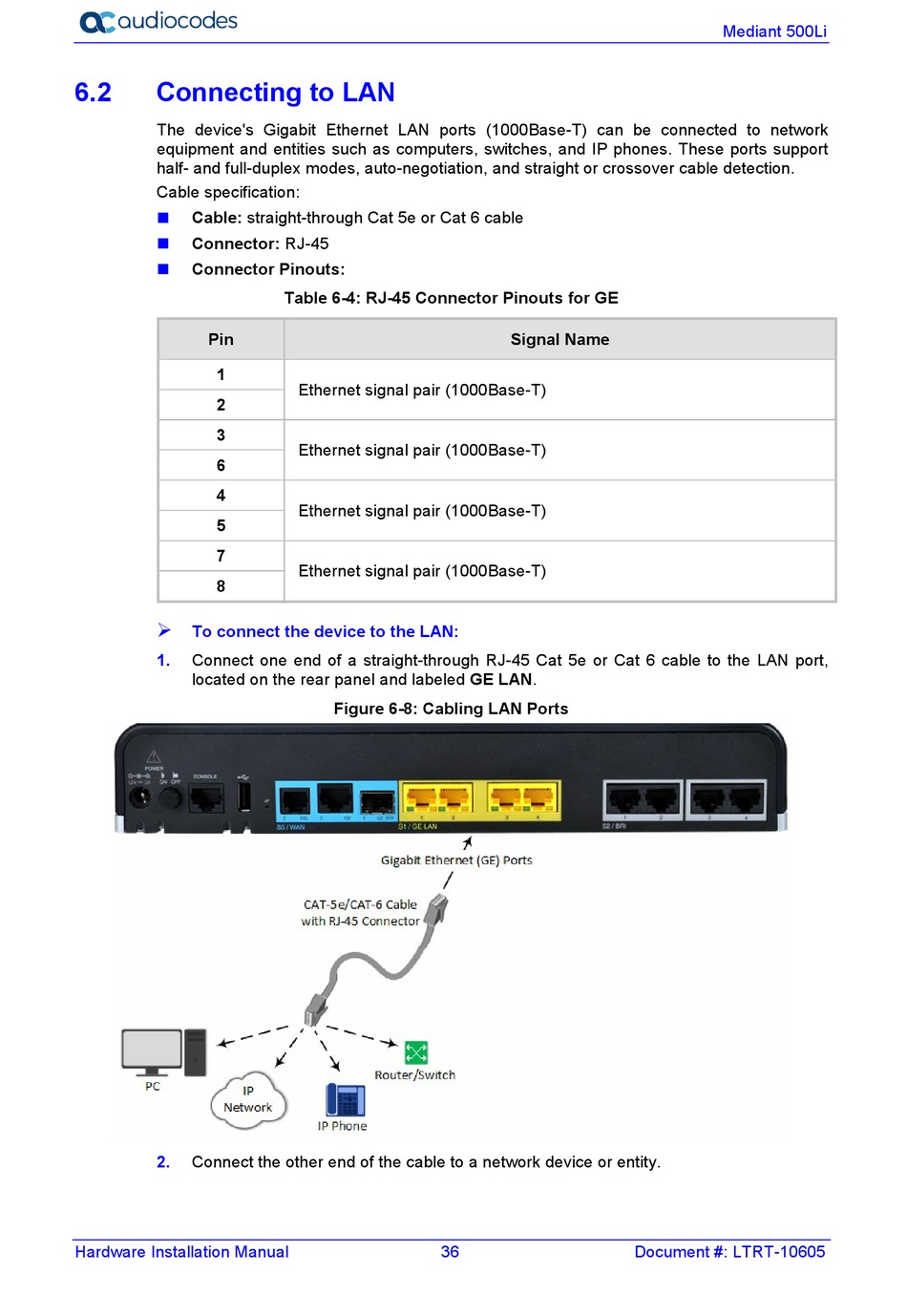

Figure 6-8: Cabling LAN Ports

36
Signal Name
Document #: LTRT-10605
Mediant 500Li
