CHAPTER 5 Cabling the Device
5

Cabling the Device

This section describes the cabling of the device.

Grounding the Device

The device must be connected to earth (grounded) using an equipment-earthing conductor.
Protective Earthing: The equipment is classified as Class I EN60950 and UL60950
and must be earthed at all times.
●
●
●
➢
To earth the device:
1. Connect an electrically earthed strap of 16 AWG wire (minimum) to the chassis' earthing screw
(located on the rear panel), using the supplied washer.
2. Connect the other end of the strap to a protective earthing. This should be in accordance with
the regulations enforced in the country of installation.

Connecting to the LAN

The device provides up to four Gigabit Ethernet (10/100/1000Base-T) ports for connection to the
LAN (e.g., computers, switches, and IP phones). These ports support half- and full-duplex modes,
auto-negotiation, and straight or crossover cable detection.
The RJ-45 connector pinouts are described in the following table:
Pin
1
2
3
6
For Finland: "Laite on liltettava suojamaadoituskoskettimilla varustettuun
pistorasiaan."
For Norway: "Apparatet rna tilkoples jordet stikkontakt."
For Sweden: "Apparaten skall anslutas till jordat uttag."

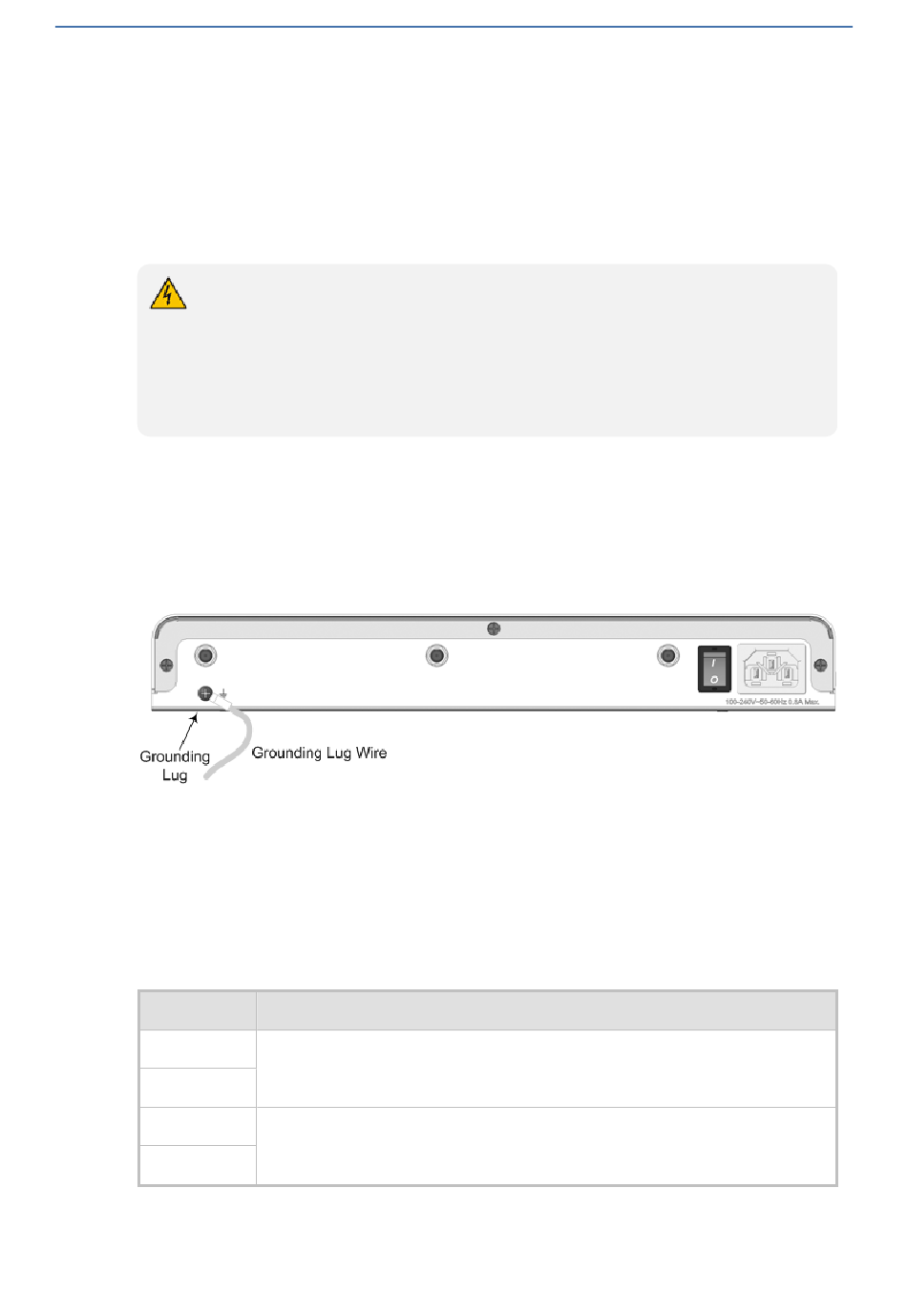

Figure 5-1:
Table 5-1: RJ-45 Connector Pinouts for GbE
Ethernet signal pair (10/100/1000Base-T)
Ethernet signal pair (10/100/1000Base-T)
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
Earthing the Device
Signal Name
- 14 -
