v45C - Maritime VSAT Antenna System

6.4 Antenna System Configuration

For the proper operation of the satellite communication system, the required components must be
connected as shown in the figure. Separate purchase of a satellite modem and ship's gyrocompass may be
needed.

6.4.1 Single Antenna System Configuration

The basic system consists of one VSAT antenna and one ACU. Connect the cables according to the
following configuration.
ACU
100~240 VAC
Modem
(Not supplied)
NOTE
The dual antenna system is not configurable with this system.
NOTE
Antenna
RF Connector
(Tx, Rx, 48 VDC Power)
Antenna
Modem Modem
Rx Tx
iDirect X7 Modem
(OpenAMIP)
AC 100~240V

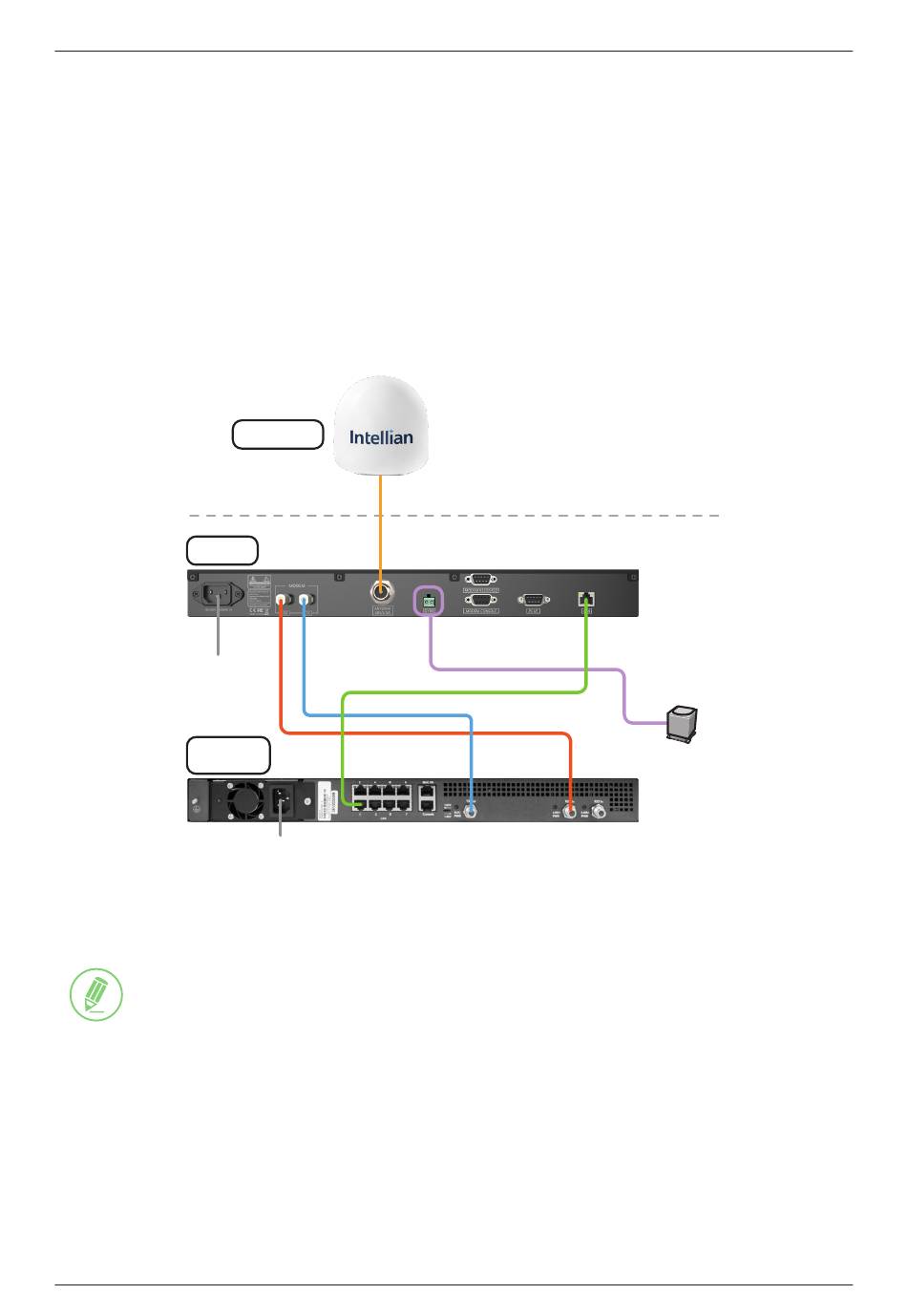

Figure 18: Antenna System Configuration

LAN
NMEA Input
0183 (GYRO)
Tx Rx
32
Above Decks
Below Decks
Ship's Gyro
(Not supplied)
