v45C - Maritime VSAT Antenna System
ü

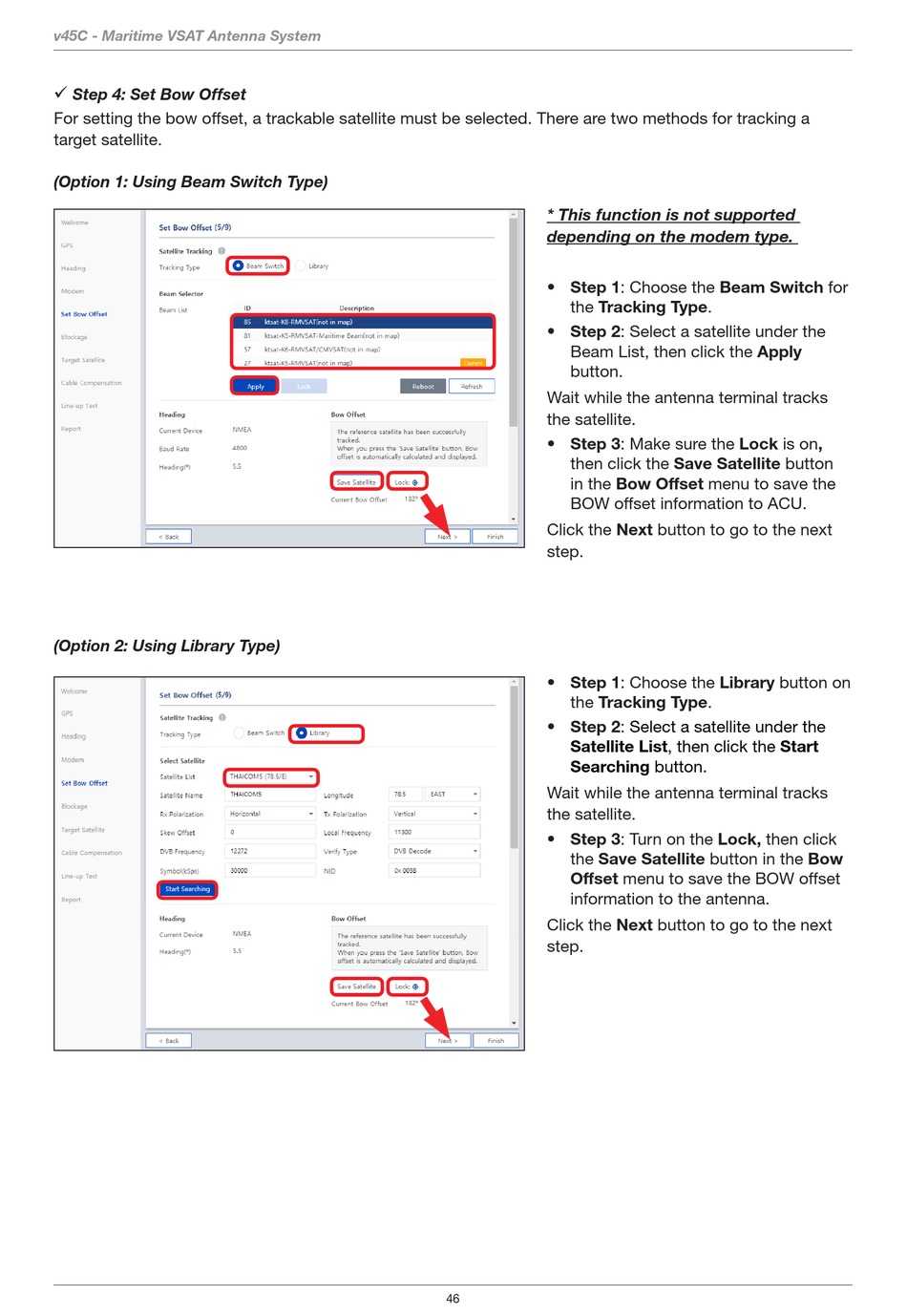

Step 4: Set Bow Offset
For setting the bow offset, a trackable satellite must be selected. There are two methods for tracking a
target satellite.
(Option 1: Using Beam Switch Type)
(Option 2: Using Library Type)
* This function is not supported
depending on the modem type.
• Step 1: Choose the Beam Switch for
the Tracking Type.
• Step 2: Select a satellite under the
Beam List, then click the Apply
button.
Wait while the antenna terminal tracks
the satellite.
• Step 3: Make sure the Lock is on,
then click the Save Satellite button
in the Bow Offset menu to save the
BOW offset information to ACU.
Click the Next button to go to the next
step.
• Step 1: Choose the Library button on
the Tracking Type.
• Step 2:
Satellite List, then click the Start
Searching button.
Wait while the antenna terminal tracks
the satellite.
• Step 3: Turn on the Lock, then click
the Save Satellite button in the Bow
Offset menu to save the BOW offset
information to the antenna.
Click the Next button to go to the next
step.
46
Select a satellite under the
