v45C - Maritime VSAT Antenna System

5.2 Antenna Mounting Hole Pattern

Use the supplied mounting template when drilling mounting holes on the mast. The hole placement for the
antenna must match the mounting hole pattern on the template.
Make a cut-out of a cable hole in the center of the template using the 'Cutting Hole for Cable Hole' pattern
to install a cable. Make drill holes using the 'Drill Holes' pattern to mount the antenna.
WARNING
When reusing an existing mast, check the condition of holes on the mast and make sure those
are proper to use compared to the hole locations and sizes printed on the mounting template.
WARNING
Drill Hole
Ф10 mm (0.39")
diameter in
4 positions

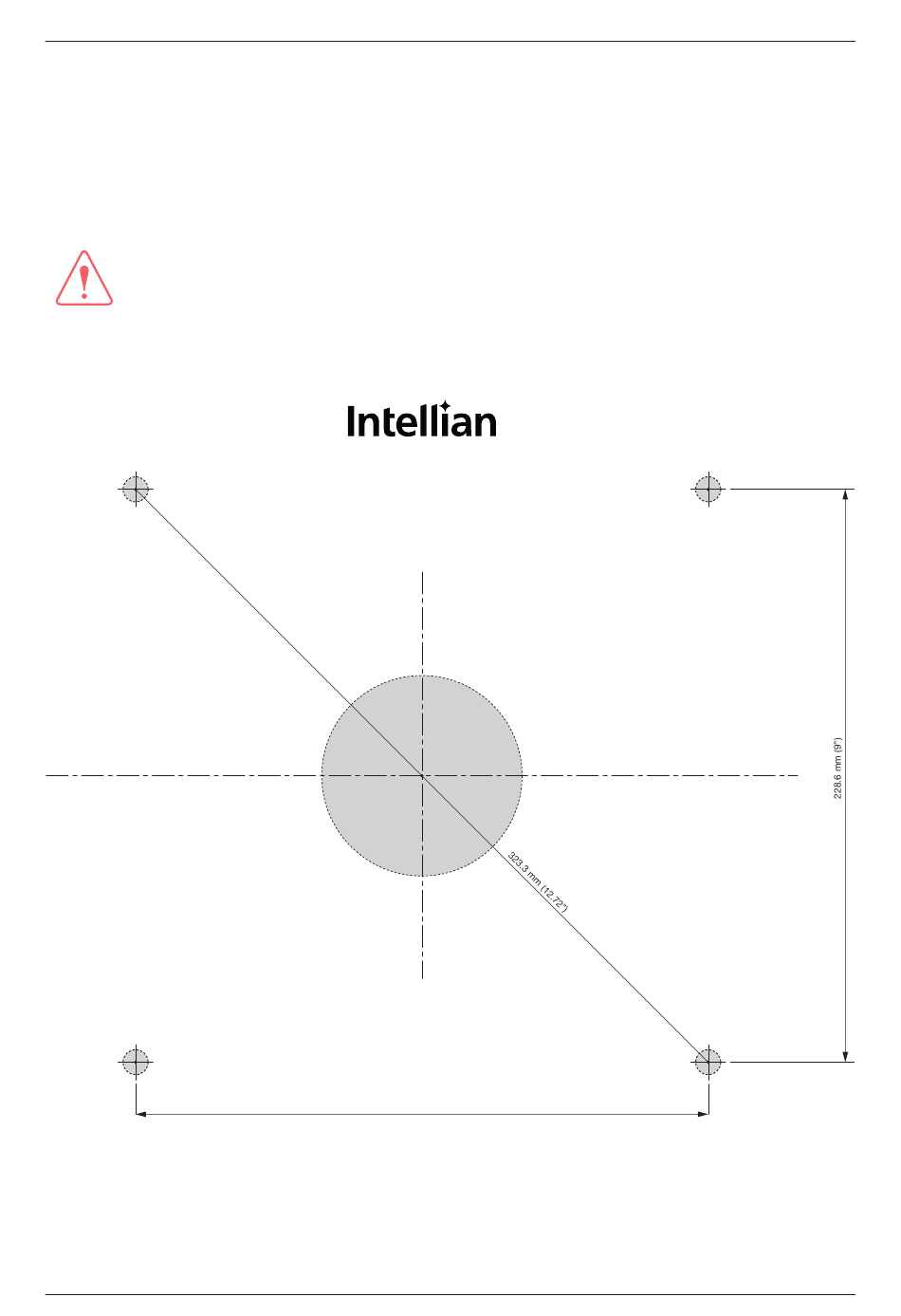

Antenna Mounting Hole Template
Cutting Hole
for Cable Hole
Ф80 mm (3.14")
diameter
228.6 mm (9")
Doc. No. K00068

Figure 11: Antenna Mounting Hole Template

22
NOTE: This is a real-size template. Make sure the
hole placement for the antenna is the same with the
template even though the mast has a different shape,
and mount the antenna on a flat surface of the mast.
*Remove material from shaded areas only.
