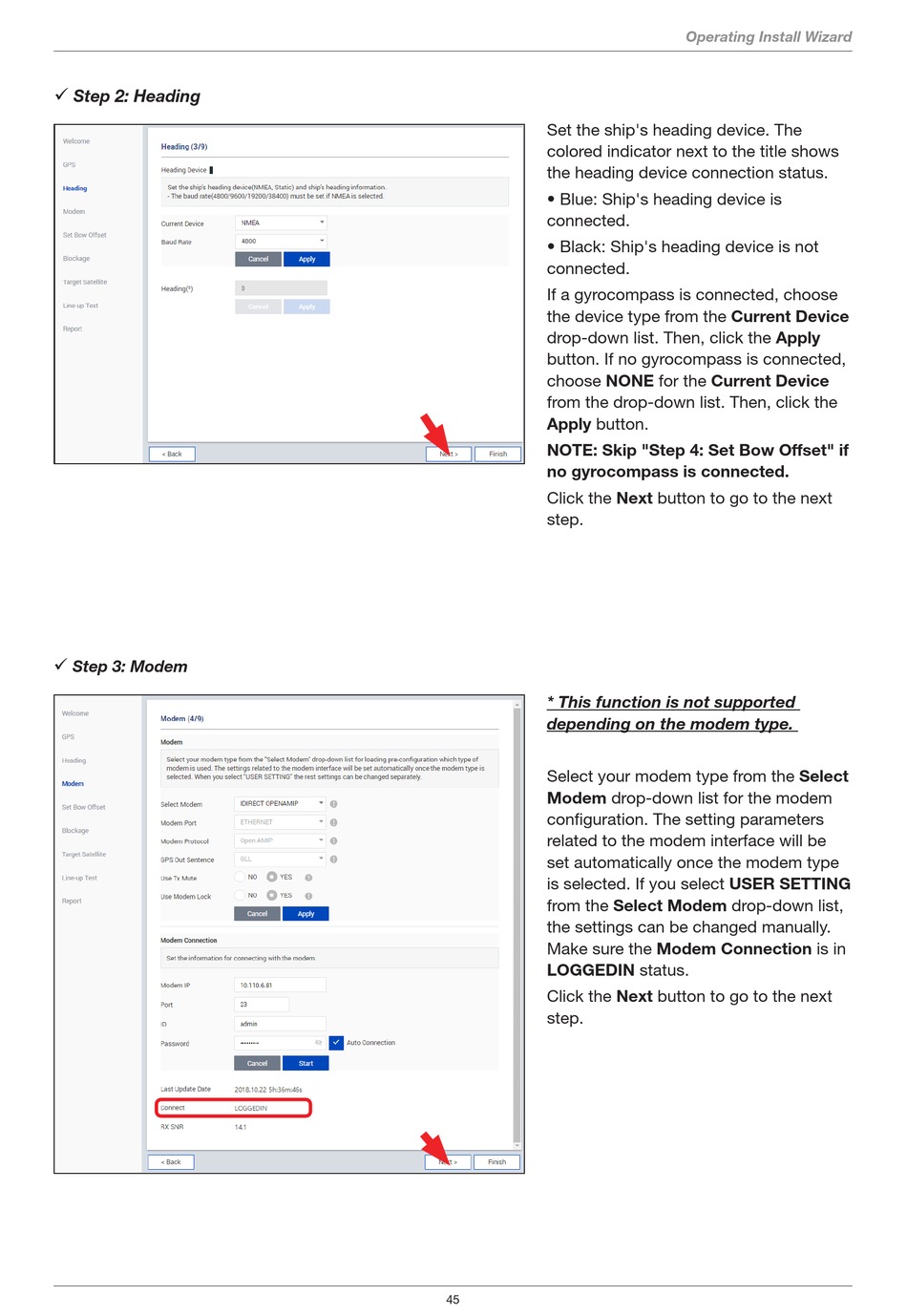

ü Step 2: Heading
ü Step 3: Modem
Set the ship's heading device. The
colored indicator next to the title shows
the heading device connection status.
• Blue: Ship's heading device is
connected.
• Black: Ship's heading device is not
connected.
If a gyrocompass is connected, choose
the device type from the Current Device
drop-down list. Then, click the Apply
button. If no gyrocompass is connected,
choose NONE for the Current Device
from the drop-down list. Then, click the
Apply button.
NOTE: Skip "Step 4: Set Bow Offset" if
no gyrocompass is connected.
Click the Next button to go to the next
step.
* This function is not supported
depending on the modem type.
Select your modem type from the Select
Modem drop-down list for the modem
configuration. The setting parameters
related to the modem interface will be
set automatically once the modem type
is selected. If you select USER SETTING
from the Select Modem drop-down list,
the settings can be changed manually.
Make sure the Modem Connection is in
LOGGEDIN status.
Click the Next button to go to the next
step.
