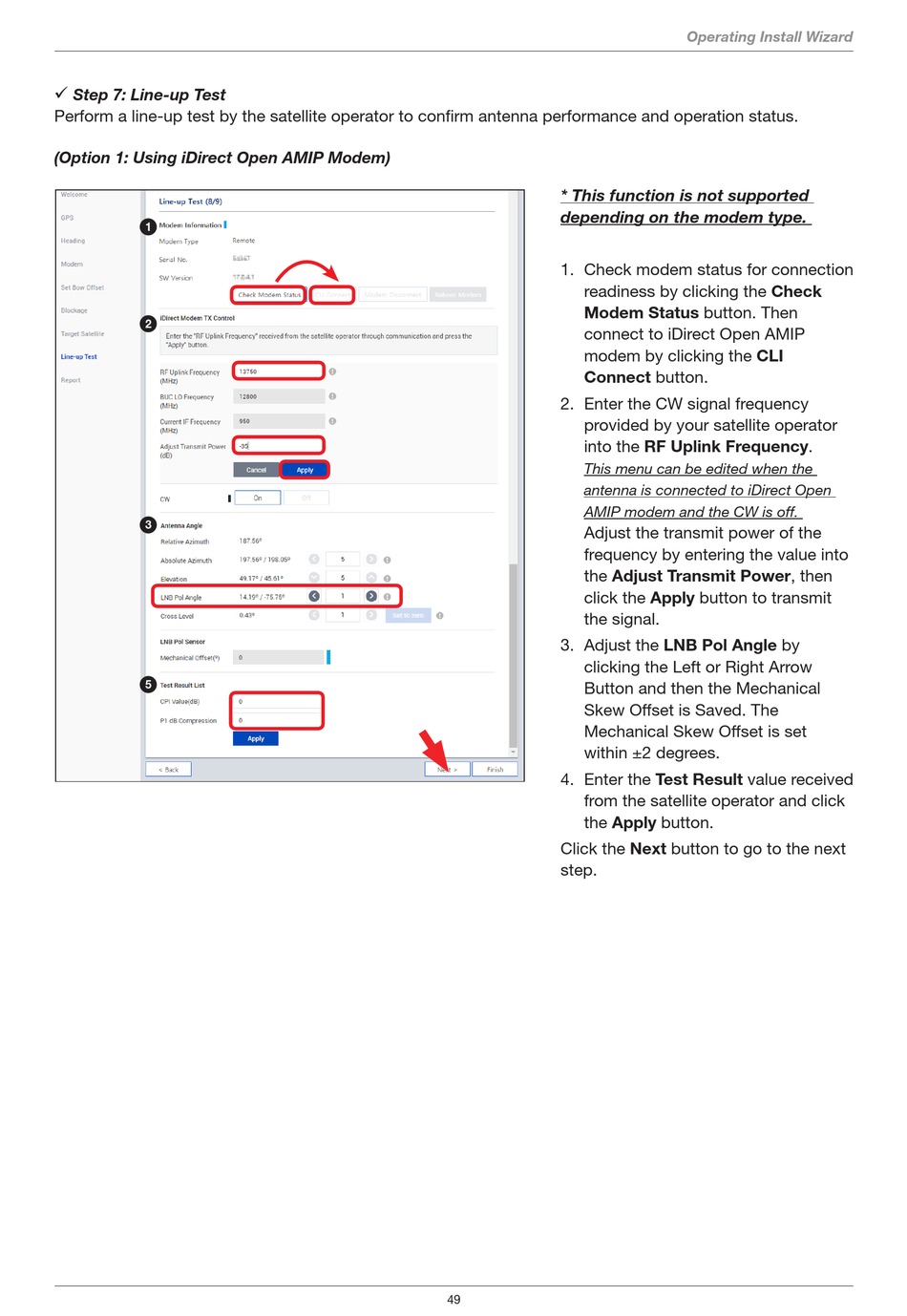

ü Step 7: Line-up Test
Perform a line-up test by the satellite operator to confirm antenna performance and operation status.
(Option 1: Using iDirect Open AMIP Modem)
1
2
3
5
* This function is not supported
depending on the modem type.
1. Check modem status for connection
readiness by clicking the Check
Modem Status button. Then
connect to iDirect Open AMIP
modem by clicking the CLI
Connect button.
2. Enter the CW signal frequency
provided by your satellite operator
into the RF Uplink Frequency.
This menu can be edited when the
antenna is connected to iDirect Open
AMIP modem and the CW is off.
Adjust the transmit power of the
frequency by entering the value into
the Adjust Transmit Power, then
click the Apply button to transmit
the signal.
3. Adjust the LNB Pol Angle by
clicking the Left or Right Arrow
Button and then the Mechanical
Skew Offset is Saved. The
Mechanical Skew Offset is set
within ±2 degrees.
4. Enter the Test Result value received
from the satellite operator and click
the Apply button.
Click the Next button to go to the next
step.
