6.5.3 Connecting Power to ACU

Connect the power cord from the power supply to the power connector (100~240 VAC) of ACU.
100~240 VAC (Power Supply)

6.5.4 Connecting ACU to Antenna

Connect an Antenna RF cable (N to N) (customer supplied) from the ANTENNA (N) port of the ACU to the
RF (N) port of radome (antenna).
ACU
ACU
Power (100~240 VAC, 50/60 Hz, 1 A)

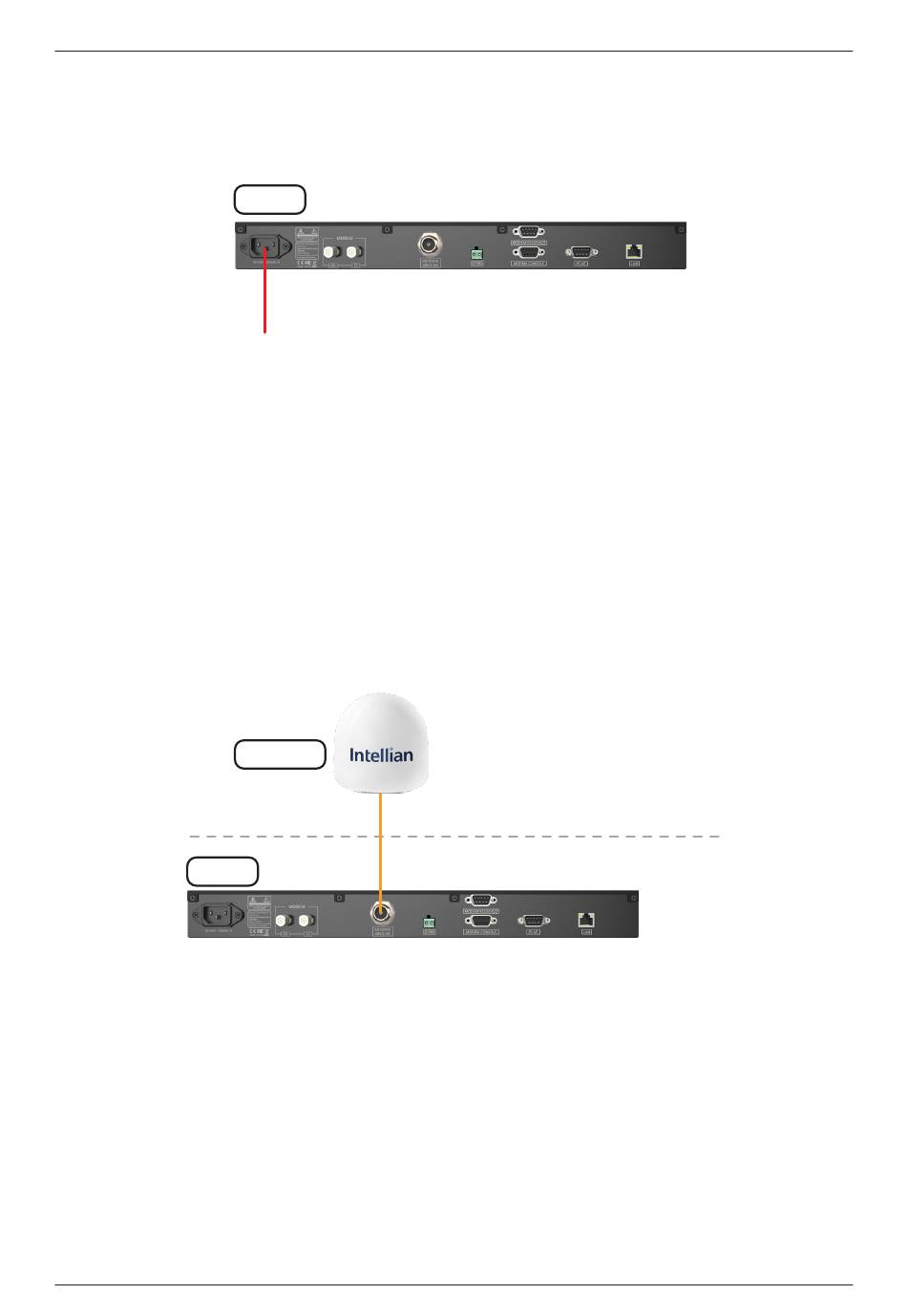

Figure 20: Connecting Power to ACU

Antenna
RF Connector
(Tx, Rx, 48 VDC Power)
Antenna

Figure 21: ACU to Antenna Cable Connection

Installing Below Deck Unit (BDU)
37
Above Decks
Below Decks
