v45C - Maritime VSAT Antenna System

4.2.2 Antenna Control Unit (ACU)

Antenna Control Unit (ACU) controls Antenna system operation. The following functions are supported by
ACU.
• Power supply to antenna
• Status indication through LED indicator
• Antenna management and control support
• Support for Interface with various types of modems
• Quick and easy installation through Installation Wizard
• Support OpenAMIP protocol
• NMEA 0183 Gyrocompass Connection
• Enhanced Auto & Self Diagnosis
• AptusNX Web application

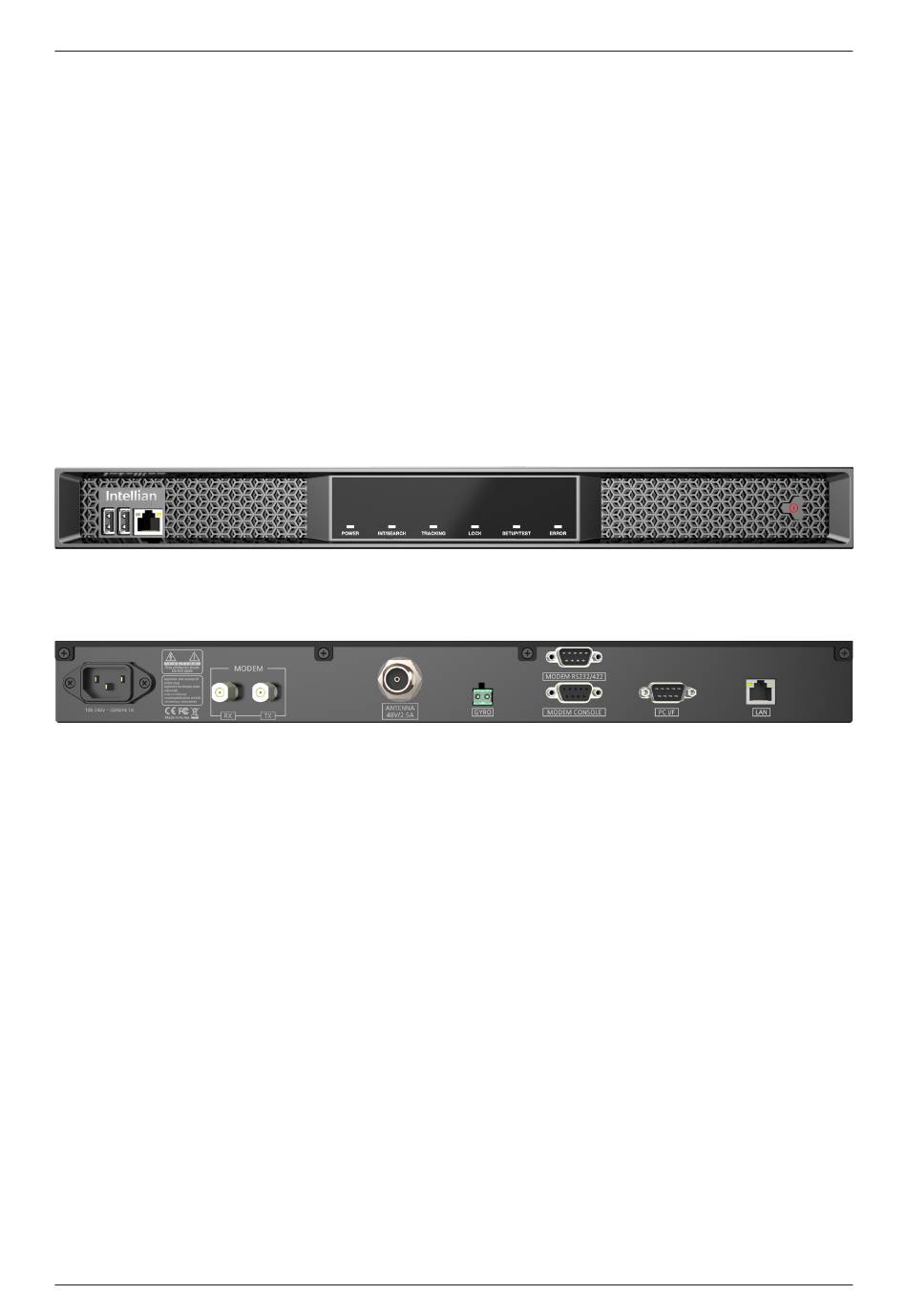

Figure 5: Front Panel of ACU

Figure 6: Back Panel of ACU

16
