v45C - Maritime VSAT Antenna System

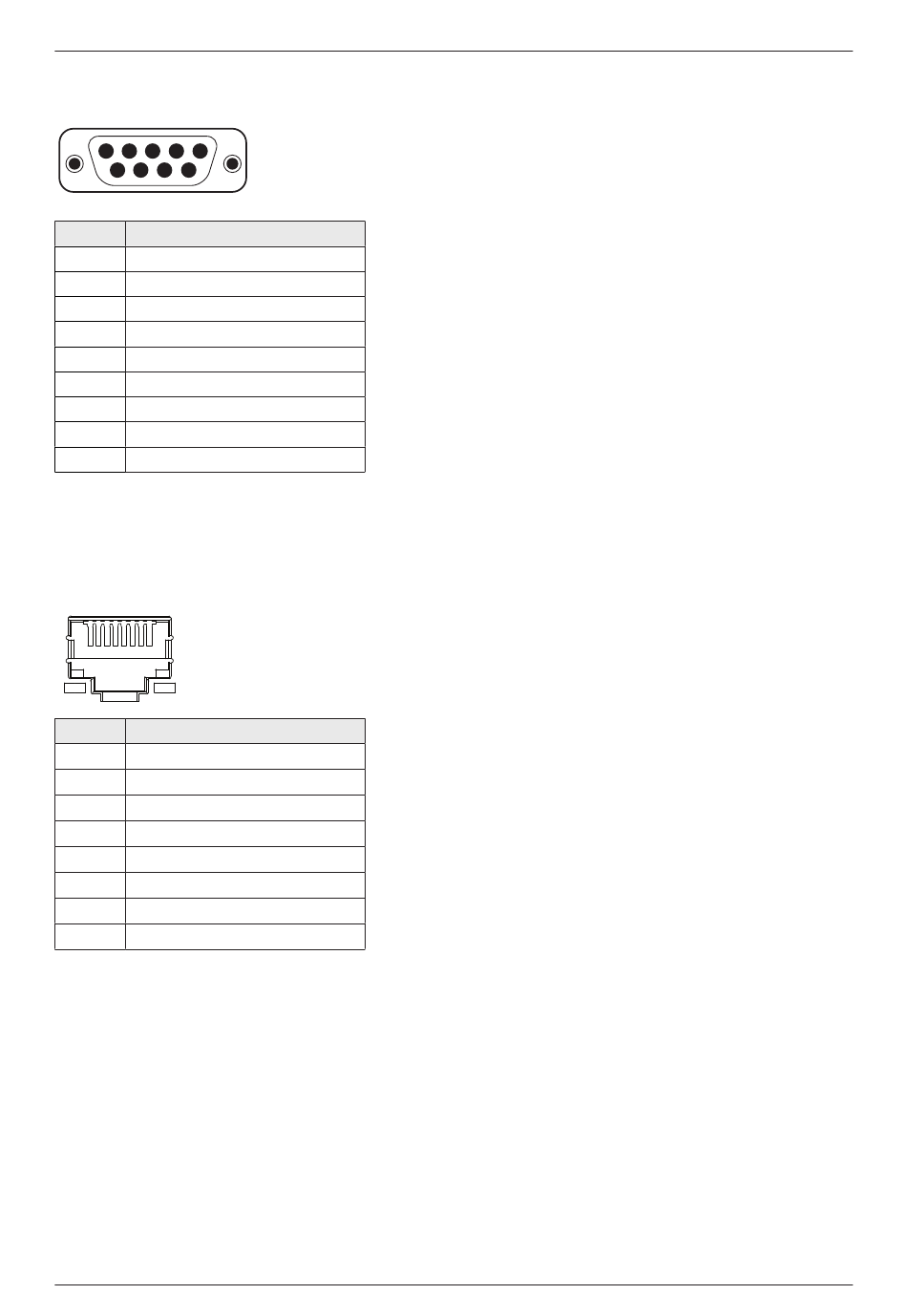

• PC Interface - RS232 Connector
1
2
3
4
5
6
7
8
9
Pin
Signal
1
N/C
2
PC RX
3
PC TX
4
N/C
5
GND
6
N/C
7
IARM TO PC_ DBG_ TX
8
PC TO IARM_ DBG_ RX
9
N/C
• LAN Connector
1 2 3 4 5 6 7 8
RJ-45 Female
Pin
Signal
1
TX-
2
TX+
3
RX-
4
N/C
5
N/C
6
RX+
7
N/C
8
N/C
D-Sub 9-Pin Male
36
