Chapter 5. Installing Above Deck Unit (ADU)
5.1 Antenna Dimensions

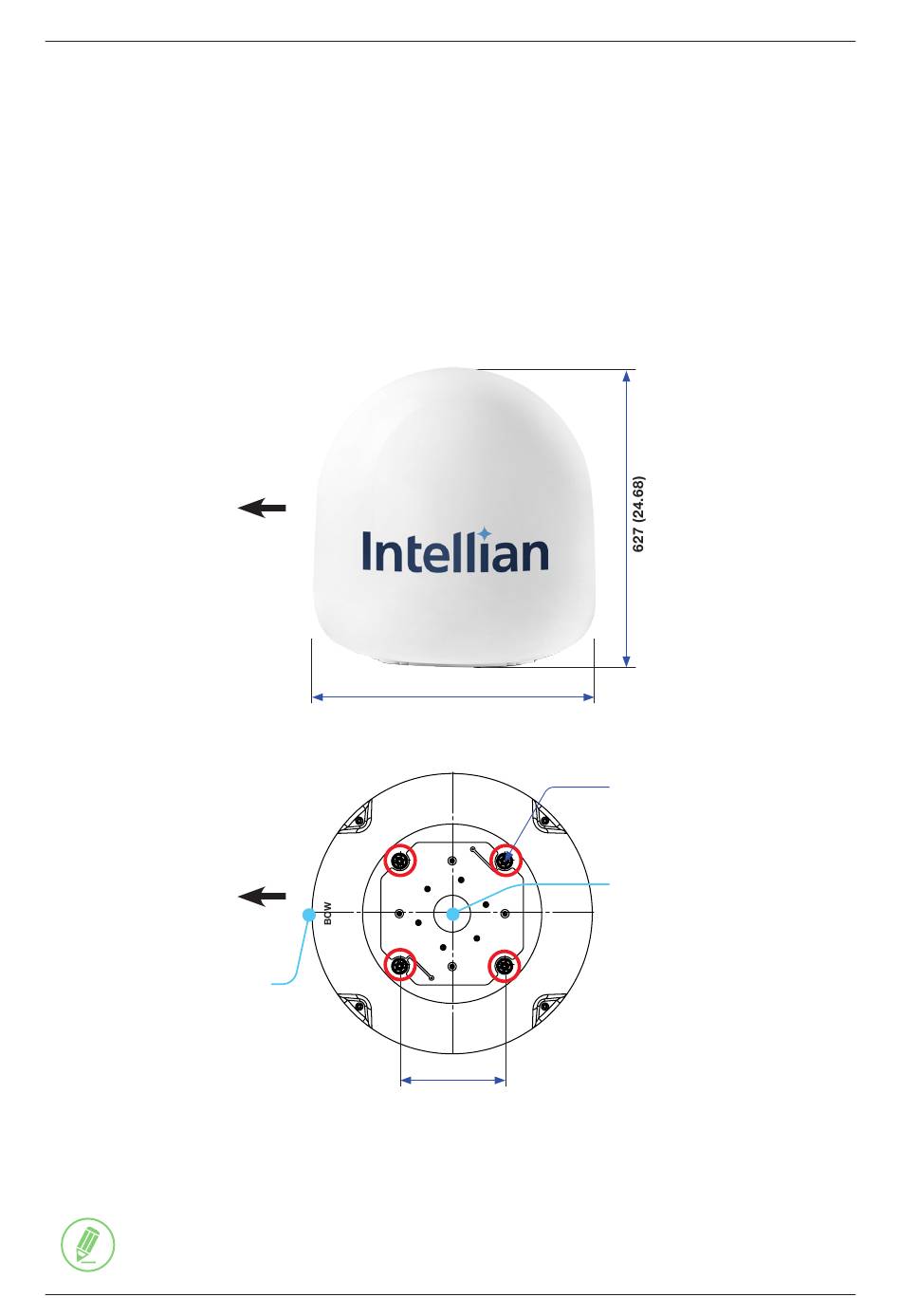

Confirm the height and diameter of the antenna unit shown in the following figure before installing it. To
protect the cable connectors on the bottom of radome, the antenna is shipped from the factory with
protective rubber cap on the RF port.
Unit: mm (inch)
BOW
Direction
BOW
Direction
BOW Mark
NOTE
Position the antenna with the BOW direction parallel to the center line of the ship.
NOTE
Ø610 (24.01)
228.6 (9)
Figure 10: Antenna Dimensions
21
Installing Above Deck Unit (ADU)
Mouting Hole
9
4 ea
Ø
(0.35),
RF Port
